TMYTEK is a company that delivers the breakthroughs of millimeter-wave solutions in 5G/B5G and satellite communication applications. As a mmWave total solution provider, TMYTEK dedicates to solve all the mmWave challenges in 5G/B5G era with our members of mmWave and software integration experts.
By transforming the mmWave RF frontend with innovative devices, implementing phased arrays with modern Antenna-in-Package (AiP) technology, and redefining the OTA testing methodology, TMYTEK empowers industrial inventions to market faster. Together with our global partners and allies. Not only can we provide mmWave products and services, we are able to integrate them with software control which makes it very user friendly.
5G mmWave Developer Kit
World's First Beamforming Solution
The 5G mmWave Developer Kit can be used for a variety of 5G mmWave beamforming research and development projects. BBoard with AAkit and PLO can a beam generator that emits beams at mutilple angles. A COCO antenna with a amplifier and a power detector, on the other hand, can receive and detect signals.
5G mmWave Developer Kit
Benefits and Features
Beamformer, array antenna, CW source, power detector, RF cables, power combiner, amplifier, and more
A 5G FR2 beamformer with 1×4 RF ports, array antenna and COCO antenna
A Lab Cookbook to save Professor’s time in courseware preparation
More than 8 pcs of high frequency components with affordable price
2.92 mm connectors and 40 GHz RF cables make the connection between components flexible
BBox 5G
mmWave NR Beamforming Development Tool
A ready to use mmWave device is hard to find out in the market. TMYTEK built BBox and series devices to meet the demands of R&D and production line. Flexibility is the key to BBox. Detachable antenna and active parts (PA/LNA/Phase shifter/TR switch) are connected via high-frequency SMPM connectors.
BBox 5G
Key Feature
- Operating Frequency: 26.5 to 29.5 GHz
- Designed for 5G n257 band (including n261 band)
- Up to 16 controllable RF channels with the choice of 4×4 or 8×8 series patch antenna
- Each channel provides:
– 360˚ phase shifter coverage with 5˚ per step
– RMS phase error: 4˚ (typical)
– 15 dB attenuation range with 0.5 dB per step
– RMS attenuation error: 0.35 dB (typical)
– Input / Output matching: -10 dB (typical) - T/R half duplex operation
- 5 ms T/R mode mode switching time (typical)
- 5 ms beamsteering time (typical) *1
- PC software control via RJ-45 Ethernet interface
BBoard 5G
5G/ B5G Beamforming Educational Kit
The 5G/ B5G Beamforming Educational Kit can be used for a variety of 5G mmWave beamforming research and development projects. BBoard with AAkit and PLO can a beam generator that emits beams at mutilple angles. A COCO antenna with a amplifier and a power detector, on the other hand, can receive and detect signals.
BBoard 5G
Key Feature
- Affordable mmWave beamformer
- 5G FR2 supported: 26.5-29.5 GHz and 37.0-40.0 GHz
- 360 deg phase range with 5.625 deg resolution (6-bit)
- 15 dB gain range with 0.5 dB resolution
- 4 bi-directional RF channels with PAs, LNAs, PSs, and TR switches
- GUI and API ready
UD BOX

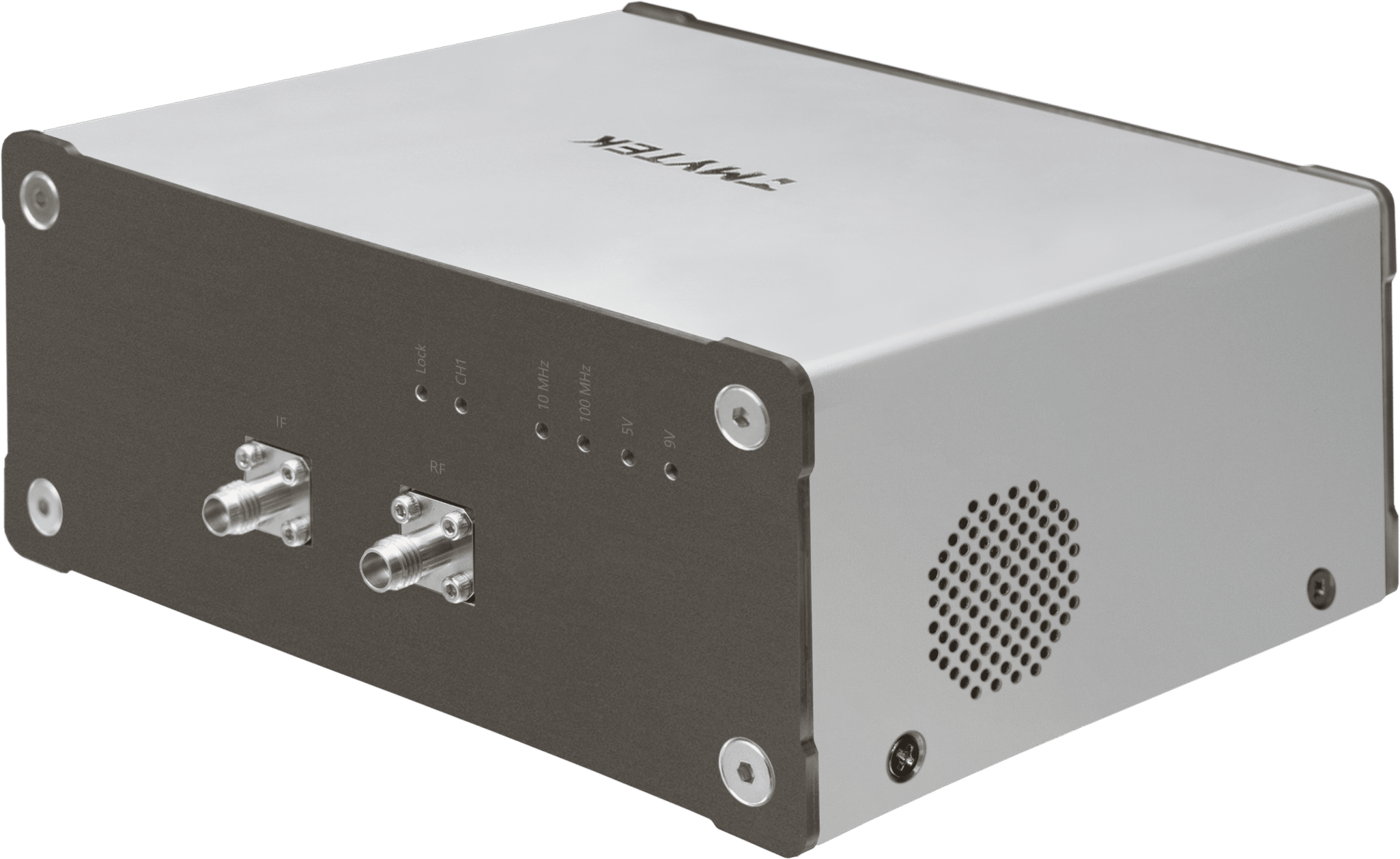

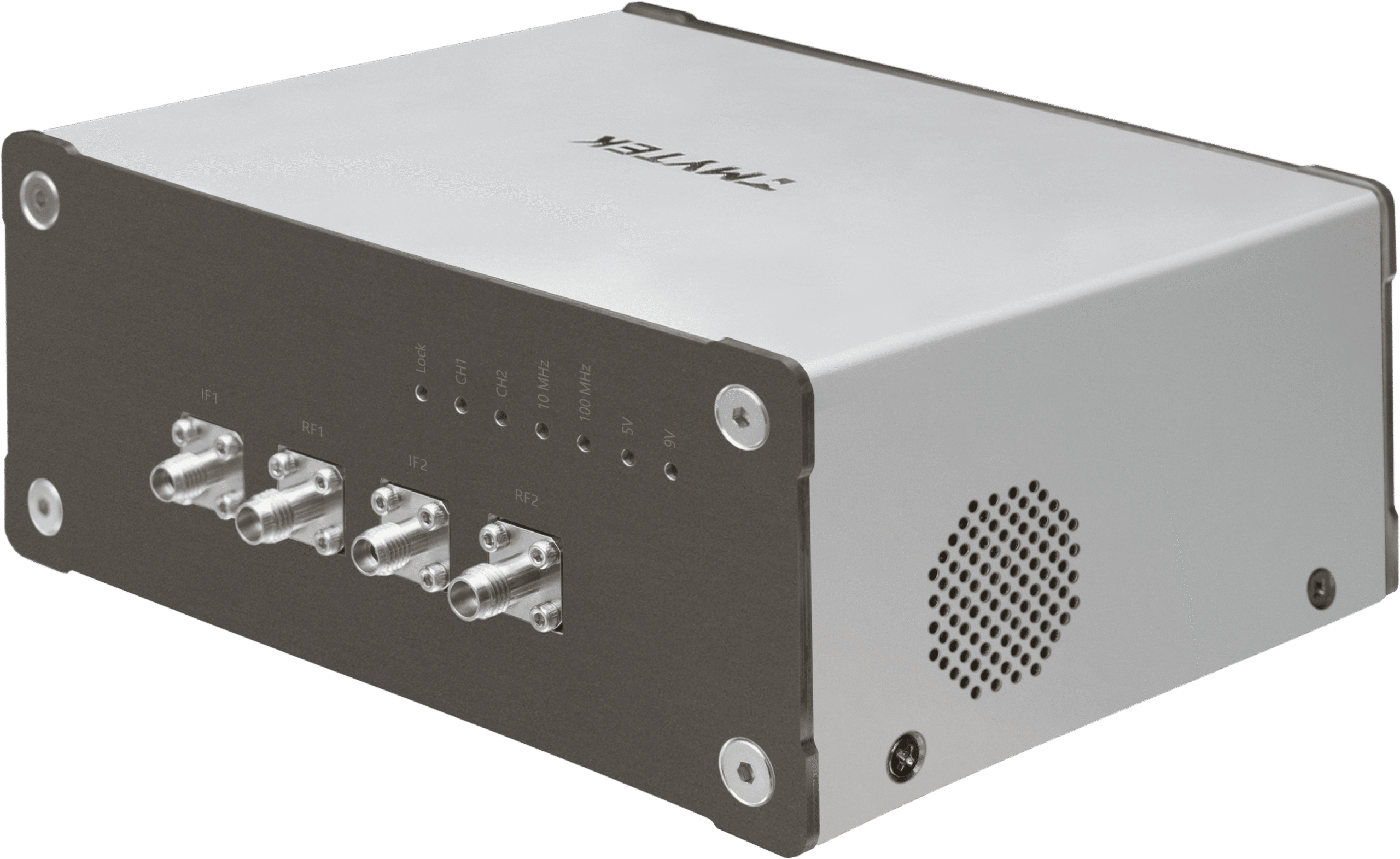

An Ultra-Broadband 5G NR mmWave Frequency Converter
5G protocol developers can verify the beam tracking algorithm and protocols by connecting BBox™ and UD Box to the baseband instrument such as NI USRP.
With TMYTEK’s beamtracking solution, telecom carriers now can do Far Field Assessment Simulation for 5G mobile base station without spending huge amounts of budget.
UD Box
Key Feature
- RF: 24-44 GHz; IF: 0.01- 14 GHz
- Built-in LO with precise OCXO
- 10/100 MHz synchronization
- Optional Accessories: BPFs for 5G NR
- n257/n258/n260 bands; 0.01-40 GHz amplifier
Frequently Asked Questions
We have GUI and API available for developers to control the LO frequencies of the UD Box as well as channel and reference ON/OFF functions. Our GUI is called the TMXLAB kit which integrates most of our products into a single user interface. On the other hand, API is made ready to help production line automation and research environment for more extensive controls.
No, UD Box is not tied to any brand/instruments. It is compatible with almost all types of signal generators and analyzers available on the market. Please consult us if you would like to make sure if UD Box is compatible with your current application scenario and existing instrument.
UD Box RF frequency ranges from 24 to 44 GHz which covers all of the 5G RF2 frequency bands from n257 to n261.
UD Box is a broadband device so the image rejection filter is not built-in. We have optional filters that you can choose to filter the unwanted signals or we can design customized filter to fulfill the band you are interested in.
Yes, our UD Box along with our VNA Cal-Kit can upgrade lower class/frequency VNA to high frequencies for S21 measurements.
