Turntable & Positioner System
- Theta, phi or combined phi & theta rotation configurations
- Adjustable height from 1.5 m to 4.5 m on selected models
- Supports horizontal loads up to 150 kg and vertical loads up to 30 kg
- Angular accuracy and resolution of 1 degree
- Encoder-based position feedback for repeatable positioning
Product Details

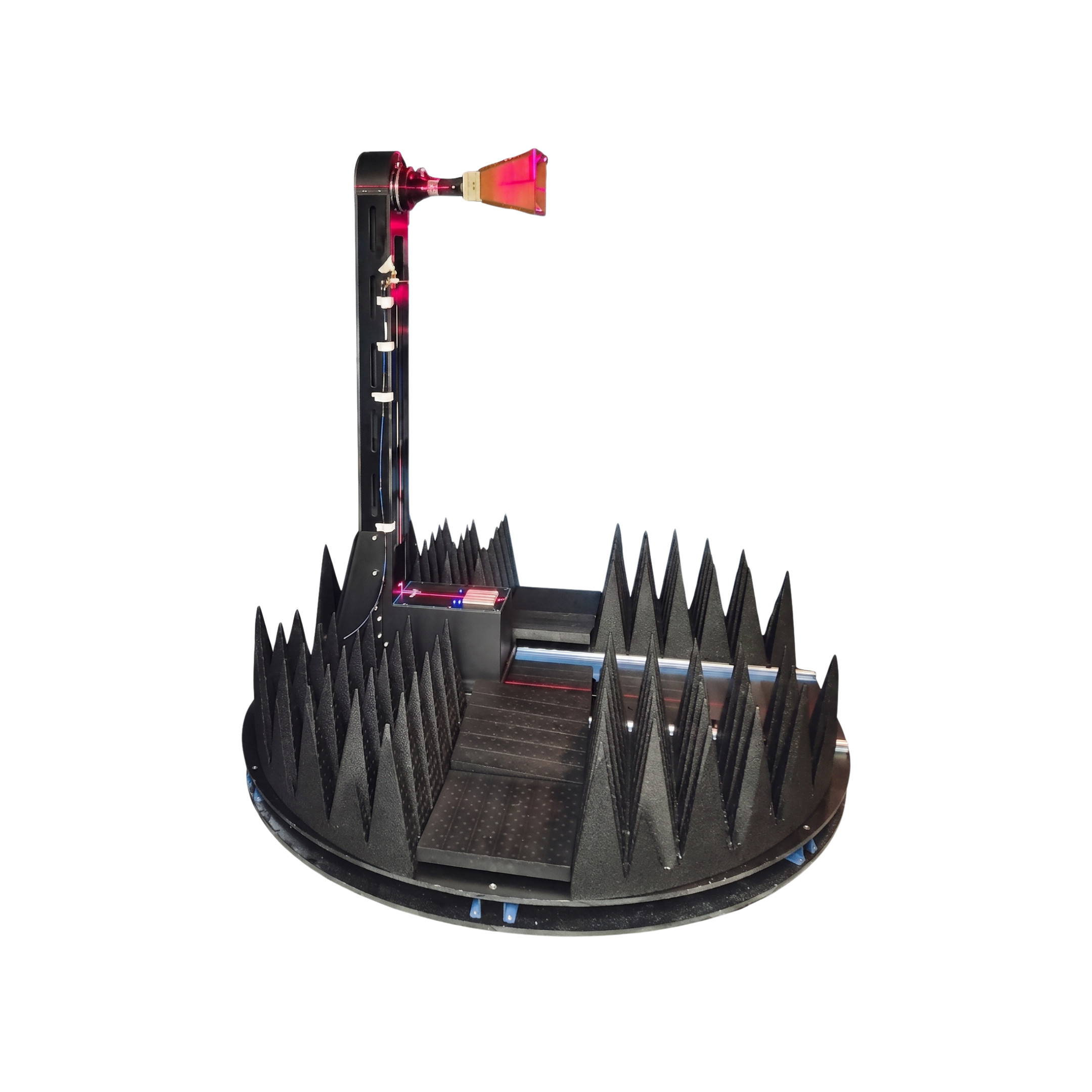

Atenlab Turntable & Positioner System is designed for controlled antenna rotation, elevation adjustment and ambient scanning in RF measurement environments. Available in multiple configurations, it supports theta rotation, phi rotation or combined phi and theta movement, enabling precise and repeatable positioning of antennas and test objects during measurement and characterization.
Specification
| Specification | RFSTT-1.2m | RFS3P | RFSTP-4.5m |
|---|---|---|---|
| Main Function | Theta axis rotation | Phi and theta axis rotation with height elevation | Phi axis rotation with adjustable height |
| Rotation Range | Theta | Theta + Phi | Phi |
| Power Requirement | 100 W | 50 W | |
| Horizontal Load Capacity | 150 kg | 50 kg | |
| Vertical Load Capacity | N/A | 30 kg | |
| Turntable Diameter | 1.2 m | N/A | |
| Tripod Height | N/A | 1.5 m to 4.5 m | |
| Physical Dimension | 1200 × 350 mm | 1200 × 2000 × 2000 mm | 1550 × 2550 × 1500 mm |
| Application | Antenna measurement, ambient scanning | ||
| Angular Accuracy / Resolution | 1 degree | ||
| Position Feedback | Encoder | ||
