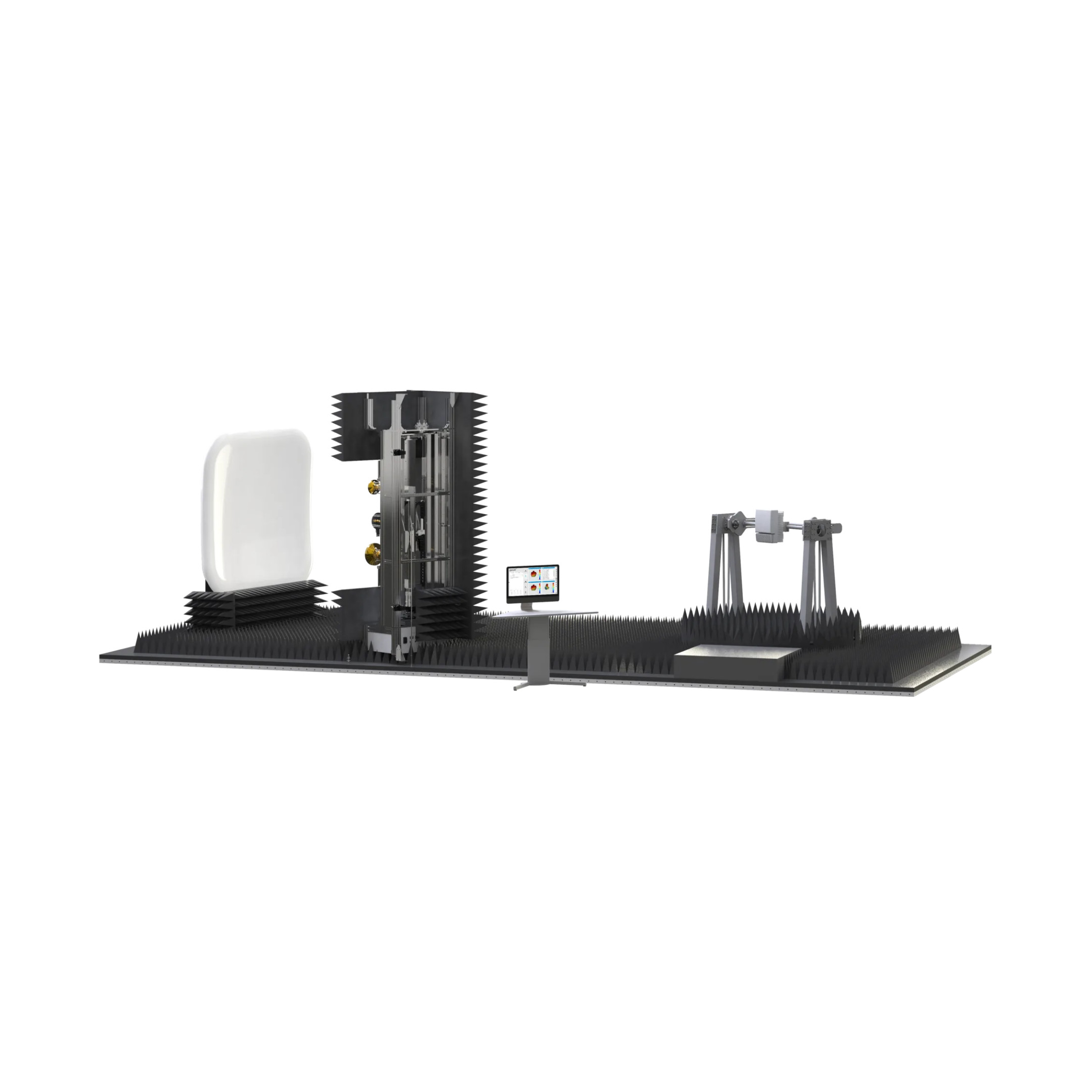

R6 Multi-Tasking CATR OTA System with LEO Satellite Module
Class: R Class – CATR OTA
- Multi-tasking CATR OTA
- 24–50 GHz (std), 8.2–110 GHz (upgrade) Operating Frequency
- Quiet Zone: 0.9 × 0.9 m (Large quiet zone)
- LEO satellite module
- Multi-frequency mmWave
Product Details
The R6 is Atenlab’s advanced multi-tasking CATR OTA system featuring a large quiet zone and an integrated LEO (Low Earth Orbit) satellite communication module. It enables simultaneous multi-band testing and supports emerging satellite communication standards alongside conventional 5G mmWave testing. Designed for research institutions, telecom operators, and advanced certification labs.
Specification
Additional information
| Operating Frequency | 24 – 50 GHz |
|---|---|
| Upgrade Frequency | 8.2 or 110 GHz |

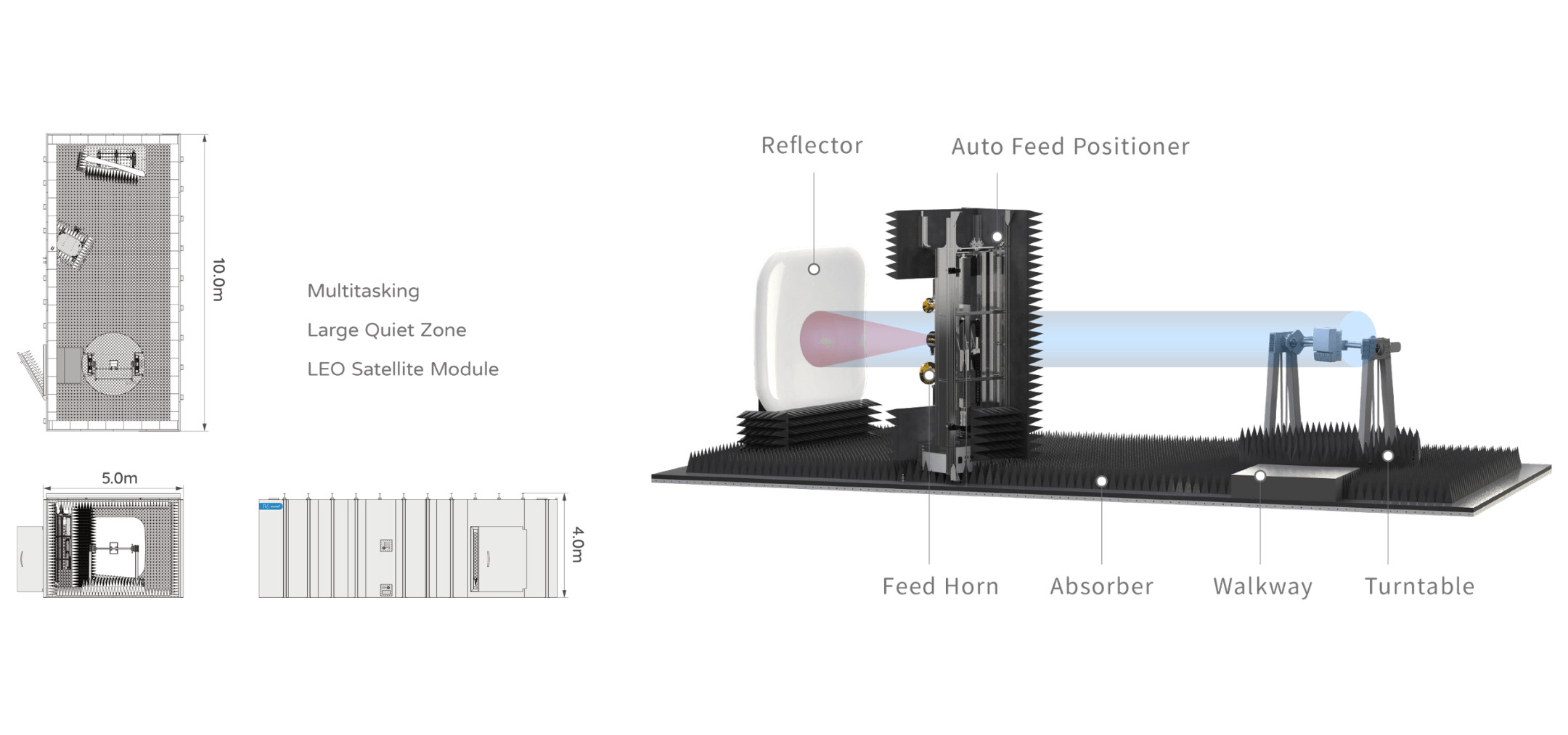

| Outside Dimension (LxWxH) | 10.0 × 5.0 × 4.0 m |
| Maximum Tested Object | N/A |
| Quiet Zone Size | 0.9 × 0.9 m |
| Cross Polarization | -25 dB |
| Amplitude Ripple | ±0.5 dB |
| Amplitude Taper | 1.0 dB |
| Phase Ripple | ±5° |
| Phase Taper | 10° |
| Reflector Shape | Rolled Edge |
| Reflector Size | 2.1 × 2.1 m |
| Test Function | Antenna Performance / Receiver Sensitivity / Transmit Power / Carrier Aggregation |
| Test Item | TX Beam Peak Direction Search / RX Beam Peak Direction Search / Peak EIRP Measurement / Peak EIS Measurement / EIRP Spherical Coverage / EIS Spherical Coverage / TRP Measurement / TIS Measurement / Blocking Measurement |
| Feed Polarization | Dual Polarization |
| Polarization Switching | Automatic |
| Feed Tuner | Electrical Adjustable *1 |
| Feed Selection | 3 out of 8: • 24 – 42 GHz (FR2) |
Description
Key Features
1. Large Quiet Zone – Enables testing of larger mmWave devices
2. LEO Satellite Module – Integrated module for satellite comm testing
3. Multi-Tasking – Simultaneous multi-band and multi-standard testing
4. Advanced R&D – Ideal for research on next-gen communication systems
5. High Precision – CTIA-grade measurement accuracy
