R2 Compact CATR OTA Measurement System for 5G mmWave
Class: R Class – CATR OTA
- Compact CATR OTA
- 24–50 GHz (std), 18–110 GHz (upgrade) Operating Frequency
- Quiet Zone: 0.3 × 0.3 m
- Compliance: 5G NR terminal test standards
- Plug & Play
Product Details

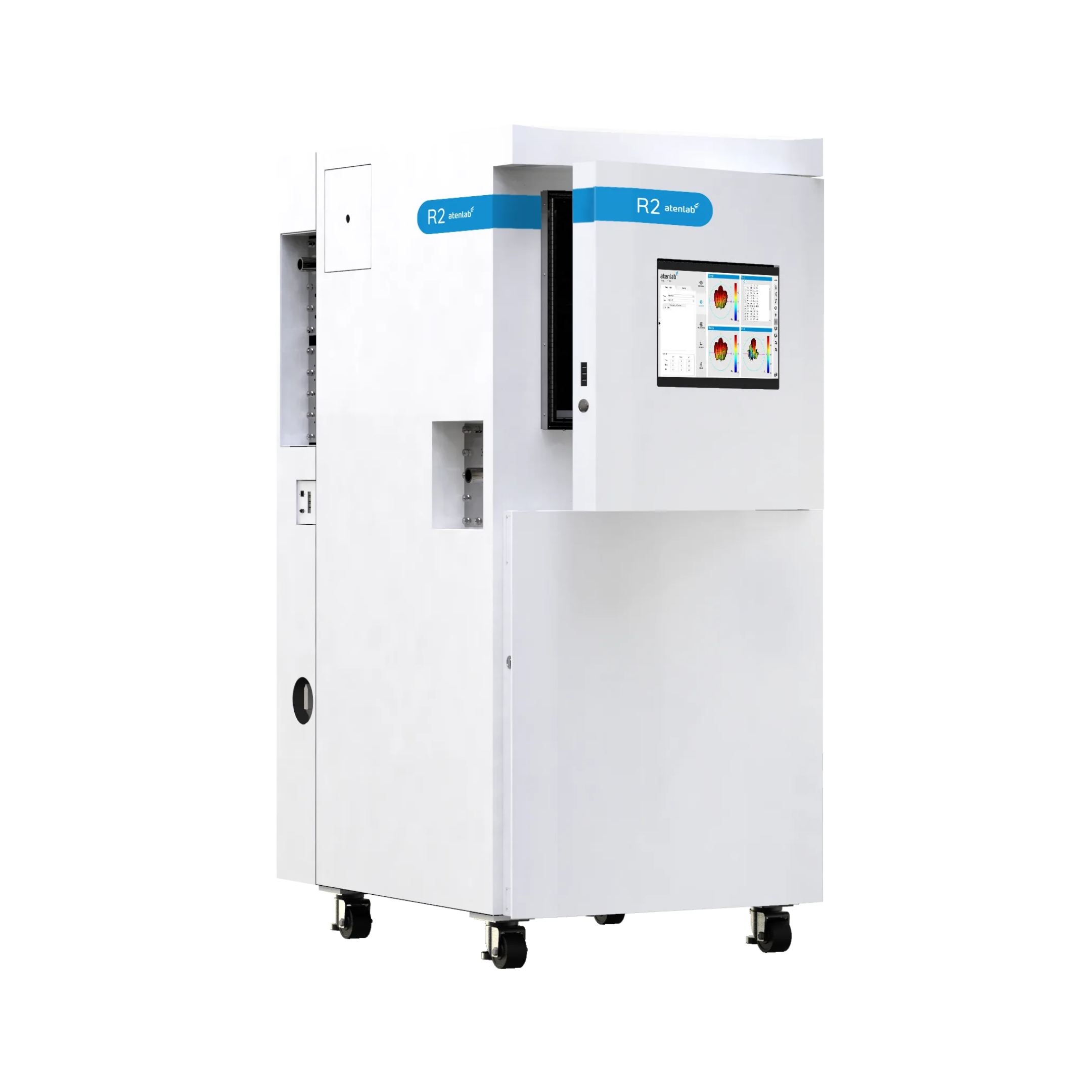

The R2 is Atenlab’s entry-level CATR (Compact Antenna Test Range) OTA measurement system for 5G NR mmWave terminal testing. With a compact 1.2×0.8×1.9 m footprint and weight of only 300 kg, it offers exceptional mobility for flexible deployment. Standard frequency coverage is 24–50 GHz (upgradeable to 18–110 GHz), with a 0.3×0.3 m quiet zone and > 100 dB isolation ensuring reliable, accurate 5G mmWave measurements.
Specification
Additional information
| Operating Frequency | 24 – 50 GHz |
|---|---|
| Upgrade Frequency | 18 or 110 GHz |
| Outside Dimension (LxWxH) | 1.2 × 0.8 × 1.9 m |
| Maximum Tested Object | 7.0" Handheld Device |
| Quiet Zone Size | 0.3 × 0.3 m |
| Cross Polarization | -25 dB |
| Amplitude Ripple | ±1.2 dB |
| Amplitude Taper | 2 dB |
| Reflector Shape | Rolled Edge |
| Reflector Size | 0.6 × 0.6 m |
| Test Function | Antenna Performance / Receiver Sensitivity / Transmit Power / Carrier Aggregation |
| Test Item | TX Beam Peak Direction Search / RX Beam Peak Direction Search / Peak EIRP Measurement / Peak EIS Measurement / EIRP Spherical Coverage / EIS Spherical Coverage / TRP Measurement / TIS Measurement / Blocking Measurement |
| Feed Polarization | Dual Polarization |
| Polarization Switching | Automatic |
| Feed Tuner | Fixed |
| Feed Selection | 1 out of 4: |
Description
Key Features

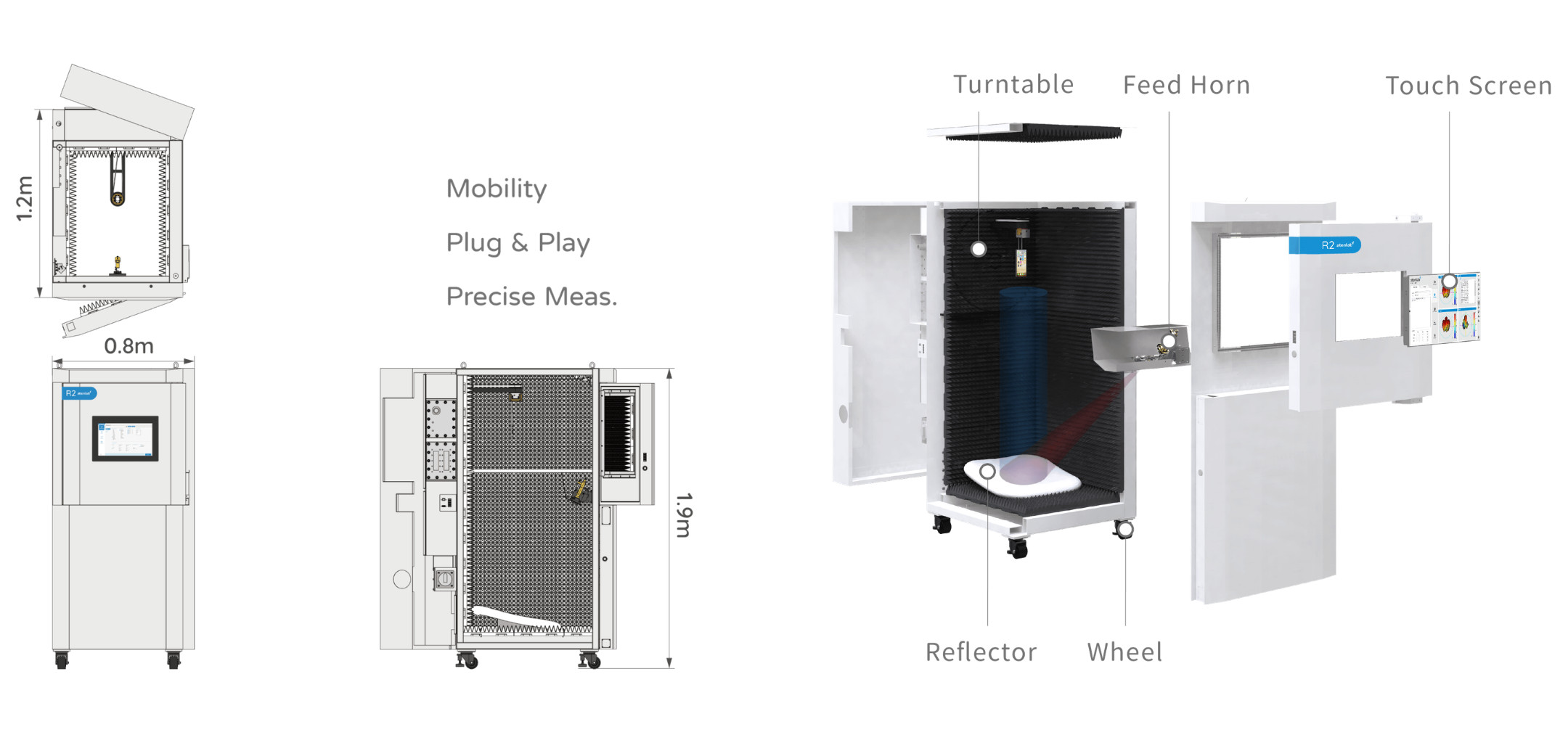

1. Mobility: 1.2×0.8×1.9 m; 300 kg; flexible lab deployment
2. Plug & Play: Rapid setup and operation
3. Precise Measurement: 0.3×0.3 m quiet zone; > 100 dB isolation
4. 5G NR mmWave: Standard 24–50 GHz; upgrade to 18–110 GHz
5. Built-in Shielding Door: 0.5×0.5 m for easy DUT placement
6. AI Optimization: 3× faster test speeds with built-in algorithm
