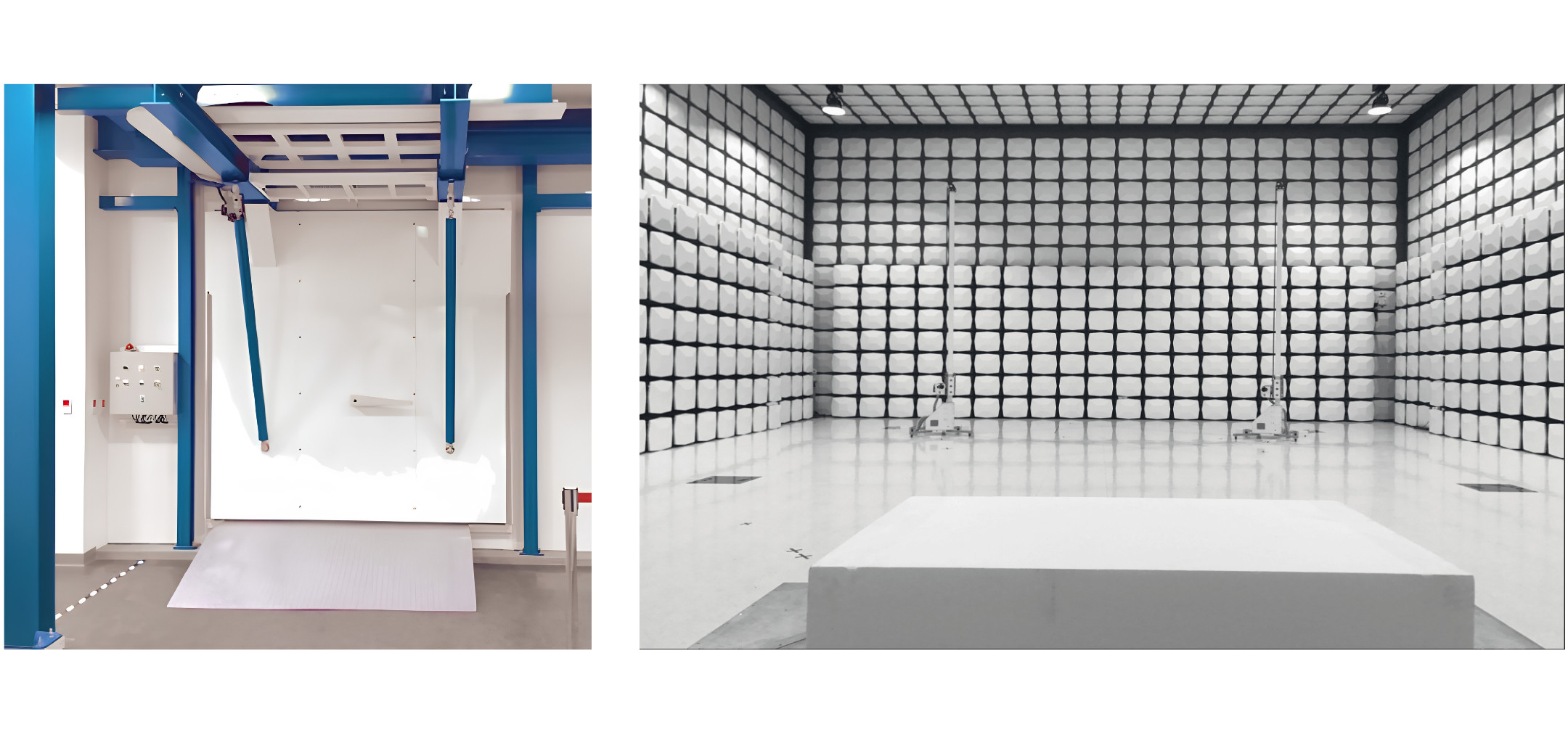

EMC Anechoic Chamber – Shielding Room with EPP Absorber
Class: E Class (EMC Chamber)
- Modular EMC anechoic chamber
- Panel Material: 2 mm hot-galvanized steel
- Panel Height: 2.5 – 3.0 m
- Door Types: Swing or sliding; auto-latching
- Customizable internal dimensions
Product Details
Atenlab’s E Class EMC Anechoic Chamber provides modular panel-type shielding enclosure construction. Every panel features a standard height of 2.5–3.0 m, constructed from 2 mm thick hot-galvanized sheet steel with continuous cant design for superior RF shielding. Customizable chamber size, shielding door type, EPP absorber configuration, and turntable integration are available to suit specific EMC test requirements.
Specification
Additional information
| Shielding System Type | Modular Shielding Enclosure System |
|---|---|
| Shielding Room Type: | • Testing Shielding Room |
| Shielding Effectiveness | 9 kHz – 100 kHz ≥ 60 dB; 100 kHz – 1 MHz ≥ 80 dB; 1 MHz – 1 GHz ≥ 100 dB; 1 GHz – 18 GHz ≥ 100 dB; 18 GHz – 40 GHz ≥ 80 dB |
| Reference Standard | MIL-STD-285 / IEEE-299 |
| Panel Structure | Modular-Type Shielding Panel |
| Panel Height | 2.5 – 3.0 m Standard Height |
| Panel Material | Hot Galvanized Steel Sheet |
| Panel Thickness | 2 mm |
| Coating Thickness | Approx. 20 Microns on Each Modular Panel |
| Maximum Floor Loading | Up to 60 ton/m² |
| Shielding Door Options | • Auto-Latching Flat Shielding Door |
| Raised Floor Options | • Standard Raised Floor, < 1 ton |
| Access Panel Options | • Shielding Room Access Panel |
| Connect Box Options | • Shielding Room Connect Box |
| Honeycomb Vent Options | • 8 GHz Shielding Vent |
| Lighting Options | • Low Noise LED Lighting |
| CCTV Options | • Standard CCTV System |
| Shielding Filter Options | • AC Single Phase Power Shielding Filter |
| Testing Table Options | • Low Dielectric Foam Testing Table |
Description
Key Features
1. Modular Panel Construction: Flexible sizing for any lab footprint
2. 2 mm Galvanized Steel: High shielding effectiveness across EMC bands
3. Shielding Door Options: Swing or sliding type; auto-latching
4. EPP Absorber Lined: High-performance RF absorption lining
5. Custom Turntable: Integrated turntable per EUT size and test standard
6. Professional & Precise: Designed for regulated EMC compliance testing
