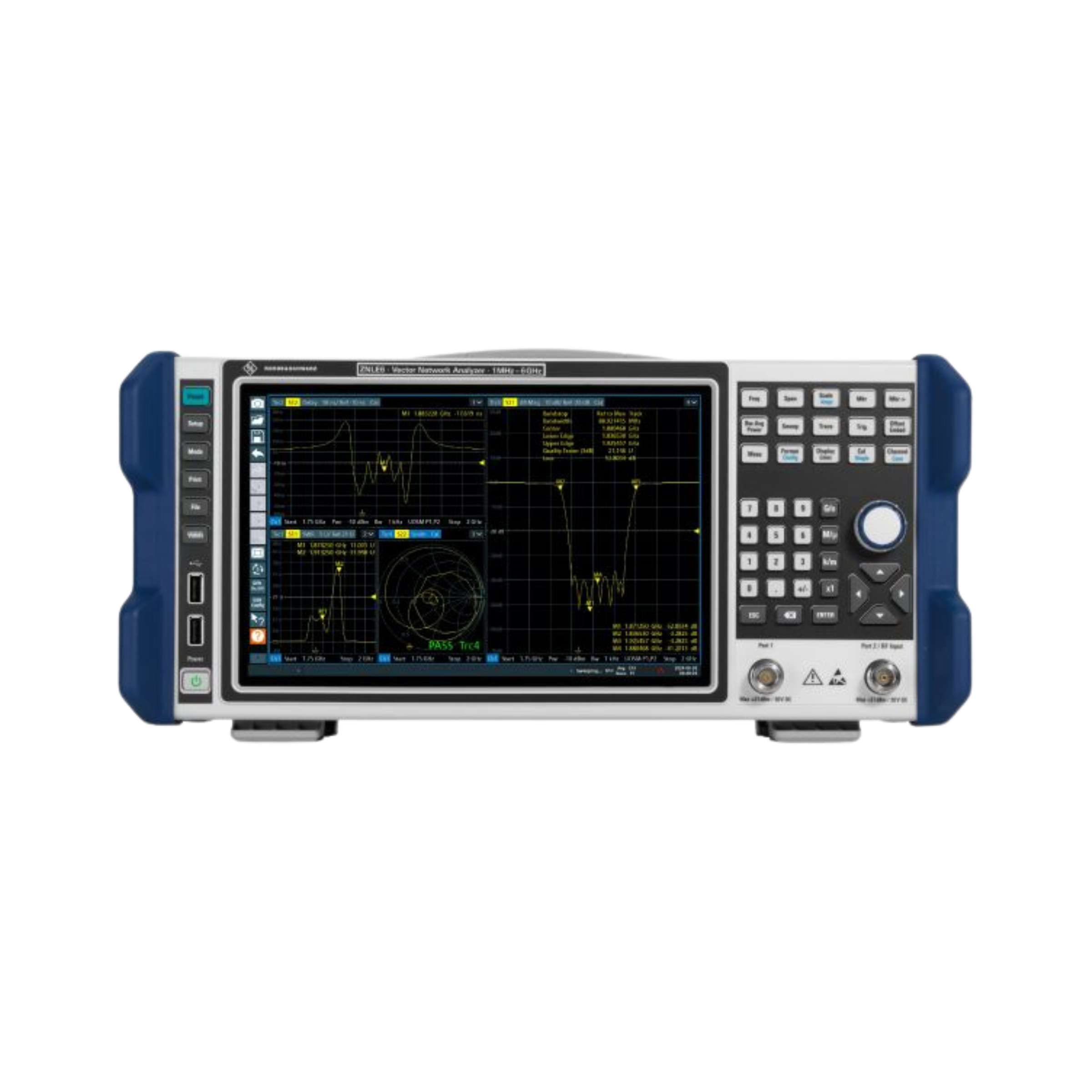

R&S ZNLE Vector Network Analyzer
Class: Economy
- Wide frequency coverage (100 kHz to 20 GHz)
- 2-port vector network analyzer supporting bidirectional measurements
- Compact, affordable, and cost-effective
Product Details
R&S ZNLE Vector Network Analyzer is a compact, economical two-port VNA designed for fast and accurate measurement of passive components. Covering frequencies from 100 kHz to 20 GHz, it supports full S-parameter testing, wide dynamic range, intuitive touchscreen operation, and standalone use for laboratories, production, education, and general-purpose RF testing.
Specification
| Frequency Range | R&S® ZNLE3 | 100 kHz1 / 1 MHz to 3 GHz |
| R&S® ZNLE4 | 100 kHz1 / 1 MHz to 4.5 GHz | |
| R&S® ZNLE6 | 100 kHz1 / 1 MHz to 6 GHz | |
| R&S® ZNLE14 | 100 kHz1 / 1 MHz to 14 GHz | |
| R&S® ZNLE18 | 100 kHz1 / 1 MHz to 18 GHz, 20 GHz overrange | |
| Dynamic Range | R&S® ZNLE3 / ZNLE4 / ZNLE6 | > 100 dB from 100 kHz to 50 MHz > 110 dB from 50 MHz to 6 GHz 120 dB typical |
| R&S® ZNLE14 / ZNLE18 | > 100 dB from 100 kHz to 50 MHz > 105 dB from 50 MHz to 16 GHz > 100 dB from 16 GHz to 18 GHz 110 dB typical from 18 GHz to 20 GHz |
|
| Number of Test Ports | 2 ports | |
| Connector | N, female | |
| Impedance | 50 Ω | |
| Output Power | Up to +2 dBm typical | |
| Measurement Bandwidth | 1 Hz to 500 kHz | |
| Frequency Resolution | 1 Hz | |
| Measurement Points per Trace | 1 to 5001 | |
| Display | 10.1" WXGA color LCD touchscreen, 1280 × 800 | |
| Interfaces | LAN, USB, DVI-D, REF IN, REF OUT, EXT TRIG IN | |
| Operating System | Windows 10 | |
