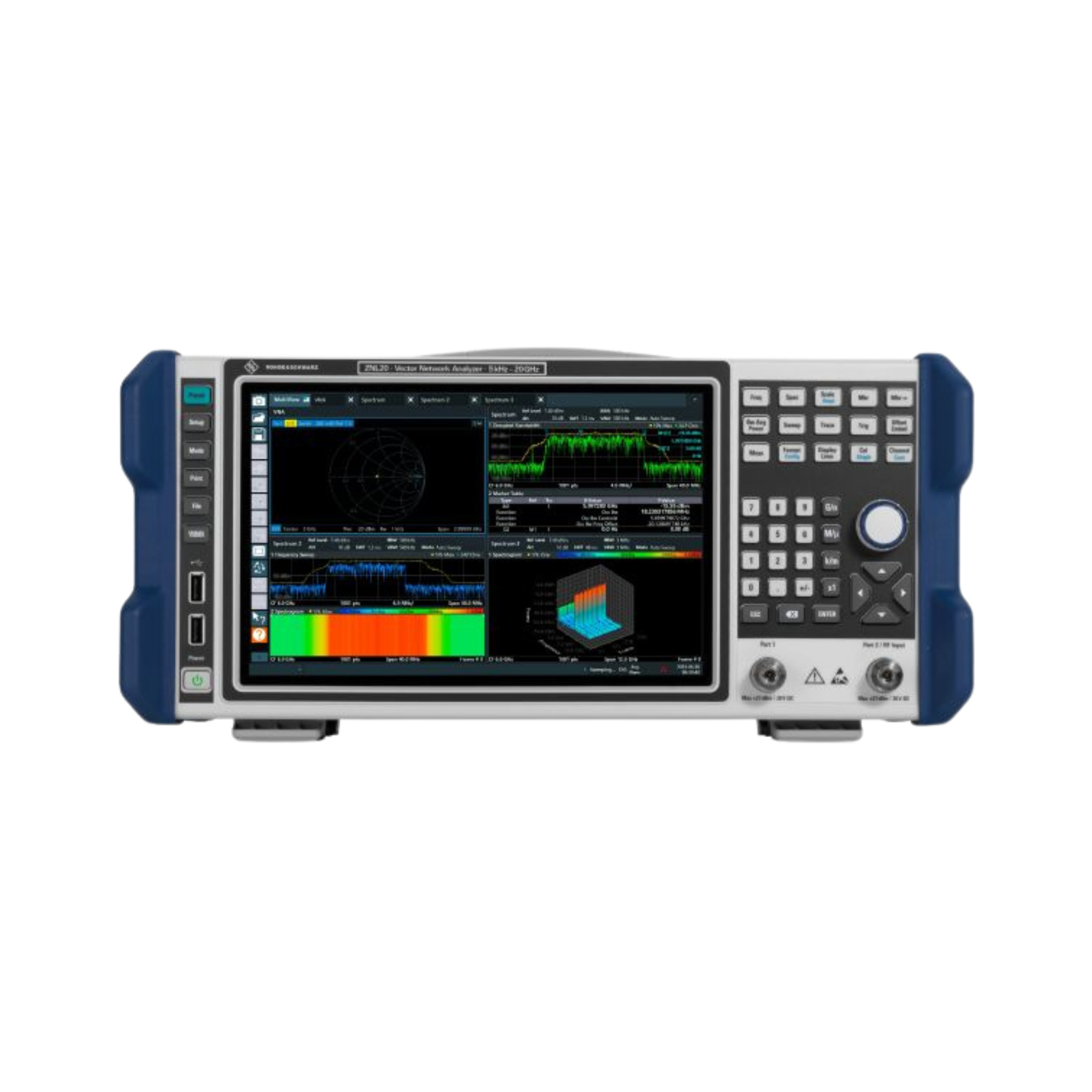

R&S ZNL Vector Network Analyzer
Class: Entry / Mainstream
- 5 kHz to 20 GHz, depending on the selected model
- Up to 130 dB typical dynamic range.
- Sweep time as low as 920 μs for 201 measurement points
- Optional integrated spectrum analyzer covering frequencies up to 26.5 GHz
- Compact, flexible and cost-effective
Product Details
R&S ZNL Vector Network Analyzer is a versatile two-port instrument for accurate RF component and network measurements from 5 kHz to 20 GHz. It combines fast sweep performance, wide dynamic range, high measurement resolution, optional spectrum analysis, and portable operation, making it suitable for laboratories, production, servicing, and field applications.
Specification
| Network Analysis Frequency Range | R&S® ZNL3 | 5 kHz to 3 GHz |
| R&S® ZNL4 | 5 kHz to 4.5 GHz | |
| R&S® ZNL6 | 5 kHz to 6 GHz | |
| R&S® ZNL14 | 5 kHz to 14 GHz | |
| R&S® ZNL20 | 5 kHz to 20 GHz | |
| Spectrum Analysis Frequency Range | R&S® ZNL3 | 5 kHz to 3 GHz, 1 Hz resolution |
| R&S® ZNL4 | 5 kHz to 4.5 GHz, 1 Hz resolution | |
| R&S® ZNL6 | 5 kHz to 6 GHz, 1 Hz resolution | |
| R&S® ZNL14 | 5 kHz to 14 GHz, 1 Hz resolution | |
| R&S® ZNL20 | 5 kHz to 26.5 GHz, 1 Hz resolution | |
| Test Port Connector | R&S® ZNL3 / ZNL4 / ZNL6 / ZNL14 | N, female |
| R&S® ZNL20 | 3.5 mm, male | |
| Number of Points | Vector network analyzer mode | 1 to 100001 |
| Spectrum analyzer mode | 101 to 100001 | |
| Number of Test Ports | 2 ports | |
| Dynamic Range | Up to > 120 dB specified; up to > 130 dB typical | |
| Output Power | 0 dBm specified; typical +3 dBm | |
| Trace Noise | < 0.0045 dB specified; < 0.0025 dB typical | |
| IF Bandwidth | 1 Hz to 500 kHz | |
| DANL | < -112 dBm specified; < -120 dBm typical | |
| Phase Noise | < -105 dBc; < -108 dBc typical | |
| Maximum Signal Analysis Bandwidth | 40 MHz with R&S® FPL1-B40 option | |
| Display | 10.1" WXGA color LCD, multitouch screen | |
| Operating System | Windows 10 | |
| Dimensions (W×H×D) | 408 × 186 × 235 mm | |
| Weight | 6 kg to 7.3 kg, depending on configuration | |
