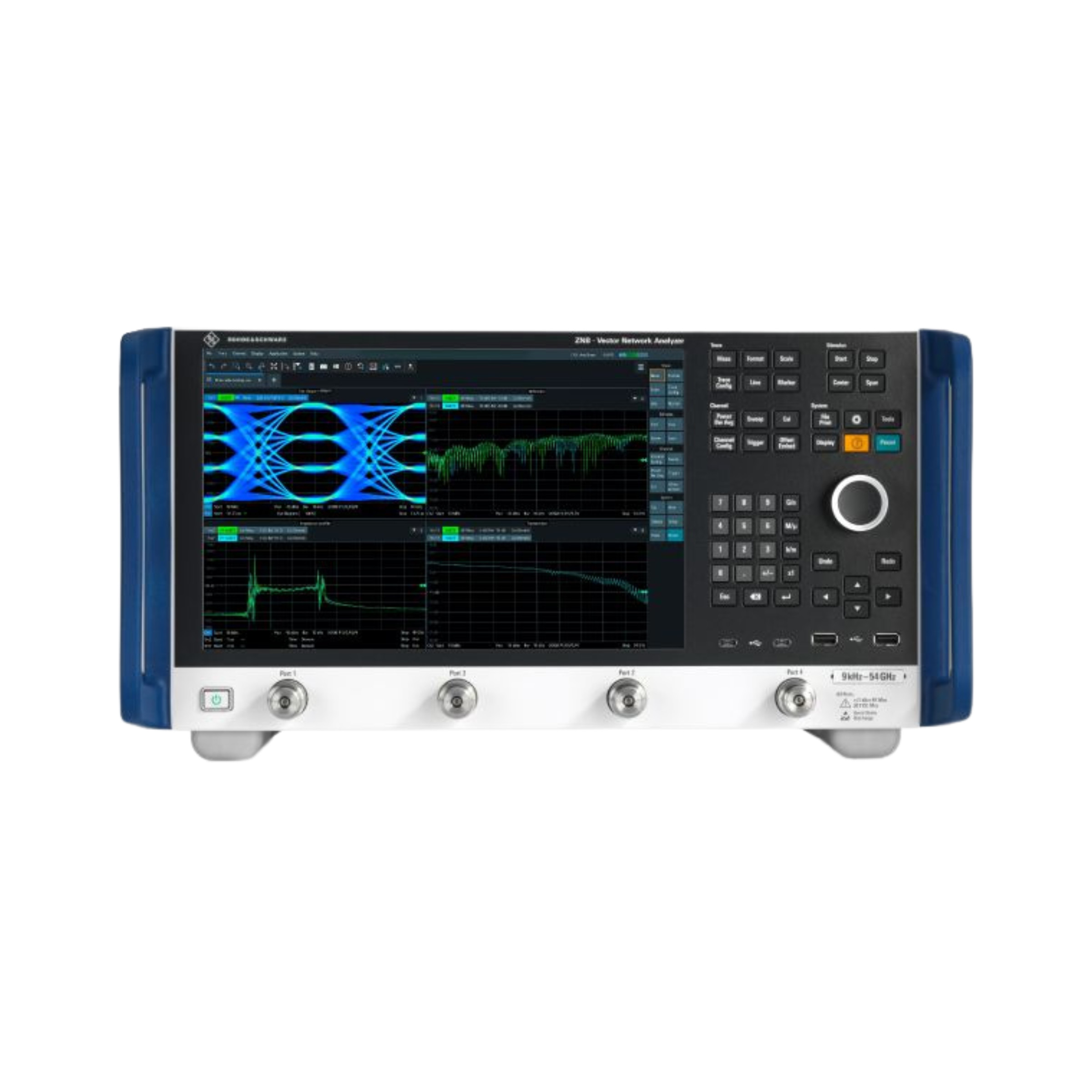

R&S ZNB3000 Vector Network Analyzer
Class: Mid-Range to High-End
- 9 kHz to 54 GHz, depending on the selected model
- Up to 150 dB dynamic range at 24 GHz
- Sweep cycle time as low as 11.7 ms for 1601 measurement points
- Available with two or four test ports
- Fast, stable and optimized for high-volume RF production
Product Details
R&S ZNB3000 Vector Network Analyzer is a high-performance solution covering 9 kHz to 54 GHz for communications, aerospace, defense, and high-volume RF production. It delivers fast measurements, excellent stability, outstanding RF performance, and flexible upgrade options, helping users shorten ramp-up times, scale configurations, and maximize testing efficiency across demanding applications.
Specification
| Frequency Range | R&S® ZNB3004 | 9 kHz to 4.5 GHz 9 kHz to 9.0 GHz with upgrade |
| R&S® ZNB3020 | 9 kHz to 20.0 GHz 9 kHz to 26.5 GHz with upgrade |
|
| R&S® ZNB3032 | 9 kHz to 32.0 GHz 9 kHz to 43.5 GHz with upgrade |
|
| R&S® ZNB3044 | 9 kHz to 43.5 GHz 9 kHz to 54.0 GHz with upgrade |
|
| Test Port Connector | R&S® ZNB3004 | N, female |
| R&S® ZNB3020 | 3.5 mm, male, ruggedized | |
| R&S® ZNB3032 | 2.92 mm, male, ruggedized | |
| R&S® ZNB3044 | 1.85 mm, male, ruggedized | |
| System Dynamic Range | R&S® ZNB3004 | Up to ≥ 130 dB specified; 140 dB typical |
| R&S® ZNB3020 | Up to ≥ 145 dB specified; 155 dB typical | |
| R&S® ZNB3032 / ZNB3044 | Up to ≥ 143 dB specified; 153 dB typical | |
| Output Power | R&S® ZNB3004 | Up to +13 dBm specified; +15 dBm typical |
| R&S® ZNB3020 | Up to +13 dBm specified; +16 dBm typical | |
| R&S® ZNB3032 / ZNB3044 | Up to +10 dBm specified; +13 dBm typical | |
| Number of Test Ports | 2 or 4 ports | |
| Impedance | 50 Ω | |
| Frequency Resolution | 1 Hz | |
| Measurement Points per Trace | 1 to 100001 | |
| Measurement Bandwidth | 1 Hz to 1 MHz 1 Hz to 10 MHz with increased IF bandwidth option |
|
| Display | 12.1" WXGA color LCD touchscreen, 1280 × 800 | |
| Interfaces | LAN, USB, REF IN, REF OUT | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz and 400 Hz | |
| Operating Temperature | +5°C to +40°C | |
| Dimensions (W×H×D) | 462.5 × 239.6 × 361.5 mm | |
| Weight | 14 kg with 2 ports 16 kg with 4 ports |
|
