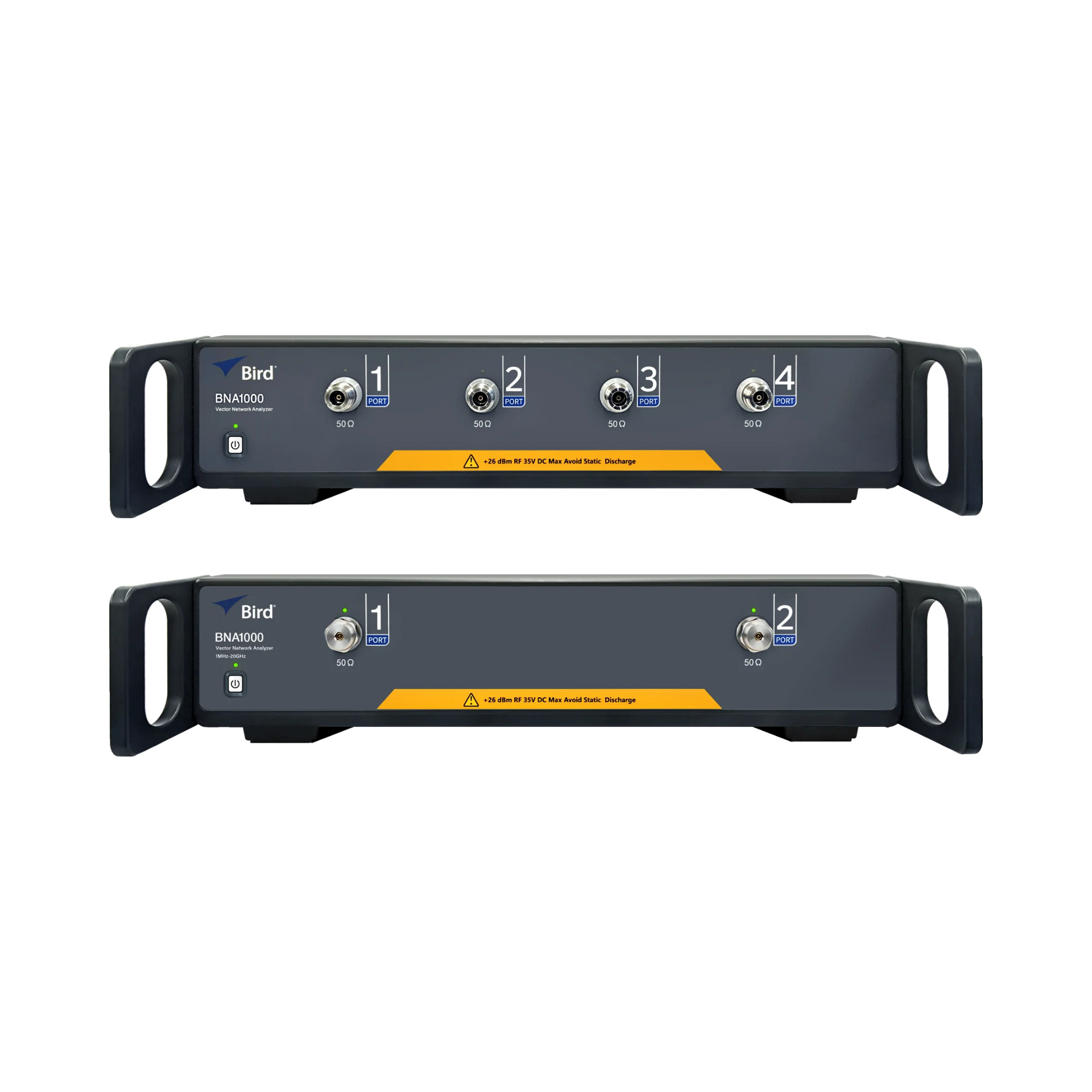

Modular Vector Network Analyzer (BNA1000 Series)
Class: Mid-Range
- Modular (PC-Controlled)
- USB-connected
- 2-port or 4-port configurations
- PC-controlled VNA (300 kHz-6.5/8.5 GHz and a 20 GHz tier) combining benchtop-level measurement detail with adaptability for manufacturing floors and R&D benches
Product Details
Bird BNA1000 Series Modular Vector Network Analyzer is designed for RF and manufacturing engineers who require precision, flexibility, and reliable performance. It combines the advanced analytical capabilities of a benchtop instrument with the adaptability needed for a wide range of manufacturing and R&D applications.
Specification
| BNA1000-2P20G0 | BNA1000-4P6G5 | BNA1000-2P8G5 | BNA1000-4P8G5 | |
|---|---|---|---|---|
| Frequency Range | 1 MHz to 20 GHz | 300 kHz to 6.5 GHz | 300 kHz to 8.5 GHz | 300 kHz to 8.5 GHz |
| Test Ports | 2-port | 4-port | 2-port | 4-port |
| RF Connector | NMD 3.5 mm (m) | Type N (f) | ||
| Frequency Accuracy | ±1 ppm | ±5 ppm | ||
| Measurement Time / Point | 70 μs | 42 μs | ||
| Dynamic Range | 125 dB typ. from 1 MHz to 8 GHz 120 dB typ. from 8 GHz to 12 GHz 118 dB typ. from 12 GHz to 18 GHz 115 dB typ. from 18 GHz to 20 GHz |
112 dB typ., 115 dB from 300 kHz to 10 MHz 125 dB typ., 130 dB from 10 MHz to 6 GHz 124 dB typ., 129 dB from 6 GHz to 7 GHz 123 dB typ., 128 dB from 7 GHz to 8.5 GHz |
||
| Transmission Accuracy | 0 dB to +10 dB: ±0.4 dB / ±4° -50 dB to 0 dB: ±0.2 dB / ±2° -70 dB to -50 dB: ±0.4 dB / ±4° -85 dB to -70 dB: ±2.0 dB / ±10° |
+5 dB to +15 dB: 0.2 dB / 2° -50 dB to +5 dB: 0.1 dB / 1° -70 dB to -50 dB: 0.5 dB / 3° -90 dB to -70 dB: 2.5 dB / 8° |
||
| Reflection Accuracy | -15 dB to 0 dB: ±1 dB / ±6° -25 dB to -15 dB: ±2 dB / ±15° -35 dB to -25 dB: ±8 dB / ±35° |
-15 dB to 0 dB: 0.4 dB / 3° -25 dB to -15 dB: 1.0 dB / 6° -35 dB to -25 dB: 3.0 dB / 20° |
||
| Trace Noise | 8 mdB rms | 2 mdB rms | ||
| Effective Directivity | 38 to 44 dB | 38 to 49 dB | ||
| Effective Source Match | 34 to 46 dB | 35 to 41 dB | ||
| Effective Load Match | 36 to 42 dB | 37 to 49 dB | ||
| Output Power Range | -30 dBm to +10 dBm | -50 dBm to +10 dBm from 300 kHz to 7 GHz -50 dBm to +8 dBm from 7 GHz to 8.5 GHz |
||
| Maximum Input Level | +26 dBm | +23 dBm | ||
| External Trigger Port | SMA (f), input voltage range 0 to +5 V | N/A | ||
| External Reference Input / Output | BNC (f), 10 MHz; 2 dBm ±2 dB | N/A | ||
| Power Consumption | 65 W | N/A | ||
| Weight | 26.5 lb (12 kg) | 17.9 lb (8.1 kg) | ||
| Impedance | 50 Ω | |||
| Frequency Resolution | 1 Hz | |||
| Measurement Points | 2 to 20001 | |||
| IF Measurement Bandwidth | 1 Hz to 2 MHz | |||
| Temperature Stability | 0.01 dB/°C | |||
| Test Port Output Match | 18 dB without system error correction | |||
| Output Power Accuracy | ±1.5 dB | |||
| Output Power Resolution | 0.05 dB | |||
| Test Port Input Match | 18 dB without system calibration | |||
| Maximum Input Voltage | +35 V | |||
| Power Supply | 110 / 220 VAC, 50 / 60 Hz | |||
| Recommended Calibration Interval | 3 years | |||
| Warranty | 3 years | |||
| Operating Temperature | +5°C to +40°C | |||
| Storage Temperature | -20°C to +60°C | |||
| Operating Humidity | 90%, 25°C | |||
| Size | 18.8 × 21.5 × 4.1 in (470 × 545 × 105 mm) | |||
