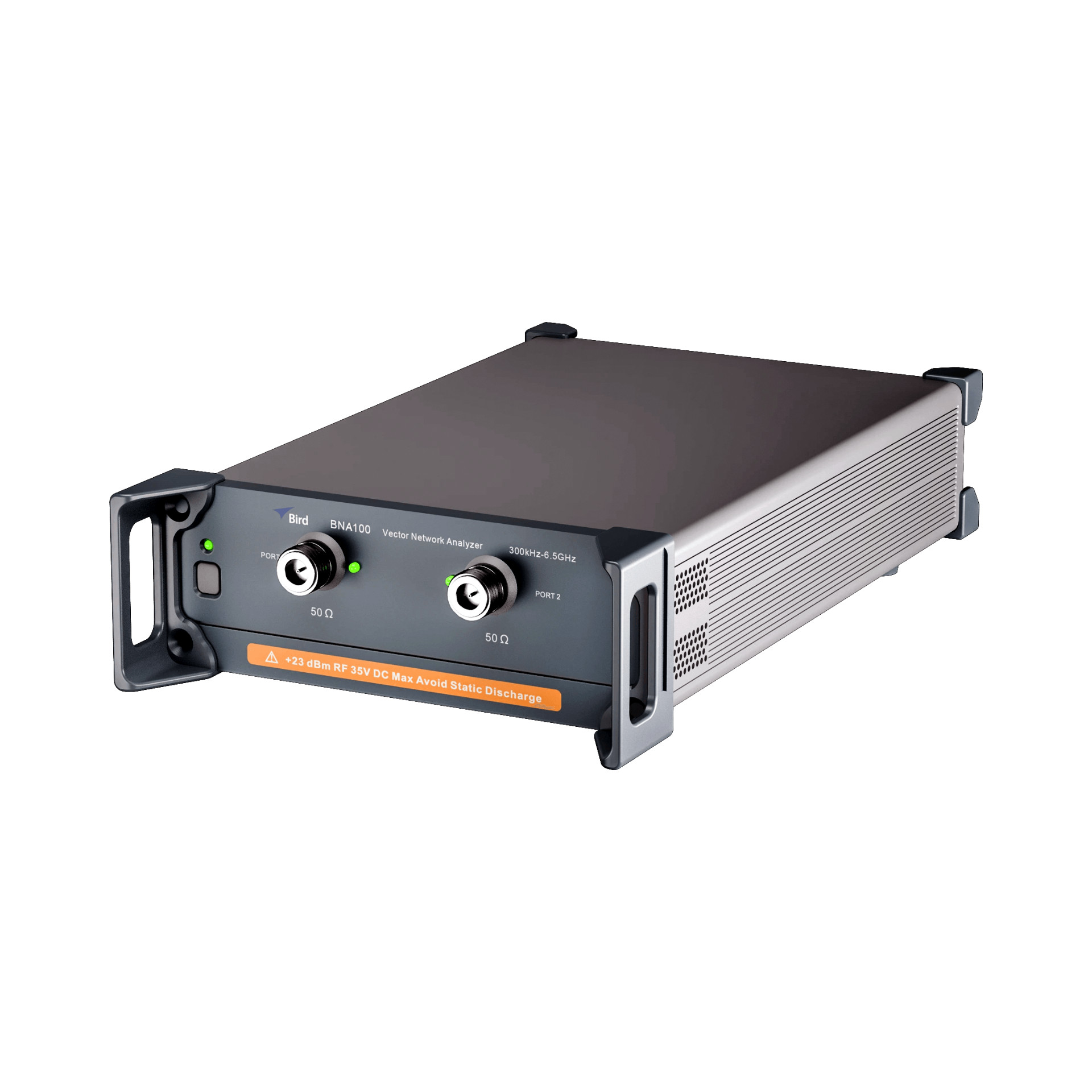

Compact Vector Network Analyzer (BNA100 Series)
Class: Economy
- Compact(PC-Controlled)
- 2-port configurations
- PC-controlled 2-port USB VNA (300 kHz-6.5/8.5 GHz) balancing productivity, budget and space
Product Details
Bird BNA100 Series Vector Network Analyzer is a compact, high-performance solution designed to meet productivity, budget and space requirements. It combines cost efficiency with advanced VNA capabilities, delivering reliable performance and measurement accuracy without the premium price.
Specification
| BNA100-2P6G5 | BNA100-2P8G5 | |
|---|---|---|
| Frequency Range | 300 kHz to 6.5 GHz | 300 kHz to 8.5 GHz |
| Test Ports | 2-port | |
| Connector | Type N (f) | |
| Impedance | 50 Ω | |
| Frequency Accuracy | ±5 ppm | |
| Frequency Resolution | 1 Hz | |
| Measurement Points | 2 to 20001 | |
| Measurement Bandwidth | 1 Hz to 100 kHz | |
| Measurement Time / Point | 68 μs | |
| Dynamic Range, IFBW = 10 Hz | 112 dB | |
| Transmission Measurement Accuracy | +5 dB to +15 dB: 0.2 dB / 2°; -50 dB to +5 dB: 0.1 dB / 1°; -70 dB to -50 dB: 0.5 dB / 3°; -90 dB to -70 dB: 2.5 dB / 8° | |
| Reflection Measurement Accuracy | -15 dB to 0 dB: 0.4 dB / 3°; -25 dB to -15 dB: 1.0 dB / 6°; -35 dB to -25 dB: 3.0 dB / 20° | |
| Trace Noise, IFBW = 3 kHz | 5 mdB rms | |
| Temperature Stability | 0.03 dB/°C | |
| Effective Directivity | 38 dB | |
| Effective Source Match | 35 dB | |
| Effective Load Match | 37 dB | |
| Test Port Output Match | 18 dB without system error correction | |
| Output Power Range | -50 dBm to +10 dBm | |
| Output Power Accuracy | ±1.5 dB | |
| Output Power Resolution | 0.05 dB | |
| Test Port Input Match | 18 dB without system calibration | |
| Maximum Input Level | +23 dBm | |
| Maximum Input Voltage | +35 V | |
| Noise Level | -120 dBm/Hz | |
| Power Supply | 110 / 220 VAC, 50 / 60 Hz | |
| Recommended Calibration Interval | 3 years | |
| Warranty | 3 years | |
| Operating Temperature | +5°C to +40°C | |
| Storage Temperature | -45°C to +55°C | |
| Humidity | 90%, 25°C | |
| Size | 6.9 × 2.6 × 11.5 in (175 × 65 × 292 mm) | |
| Weight | 5.1 lb (2.3 kg) | |
