TEM Cell
COMPACT EMC TEST ENVIRONMENT
Evaluate electromagnetic emissions and susceptibility in a controlled environment using TEM Cell technology. Ideal for EMC pre-compliance testing, PCB evaluation, and early-stage product validation.
Product Details

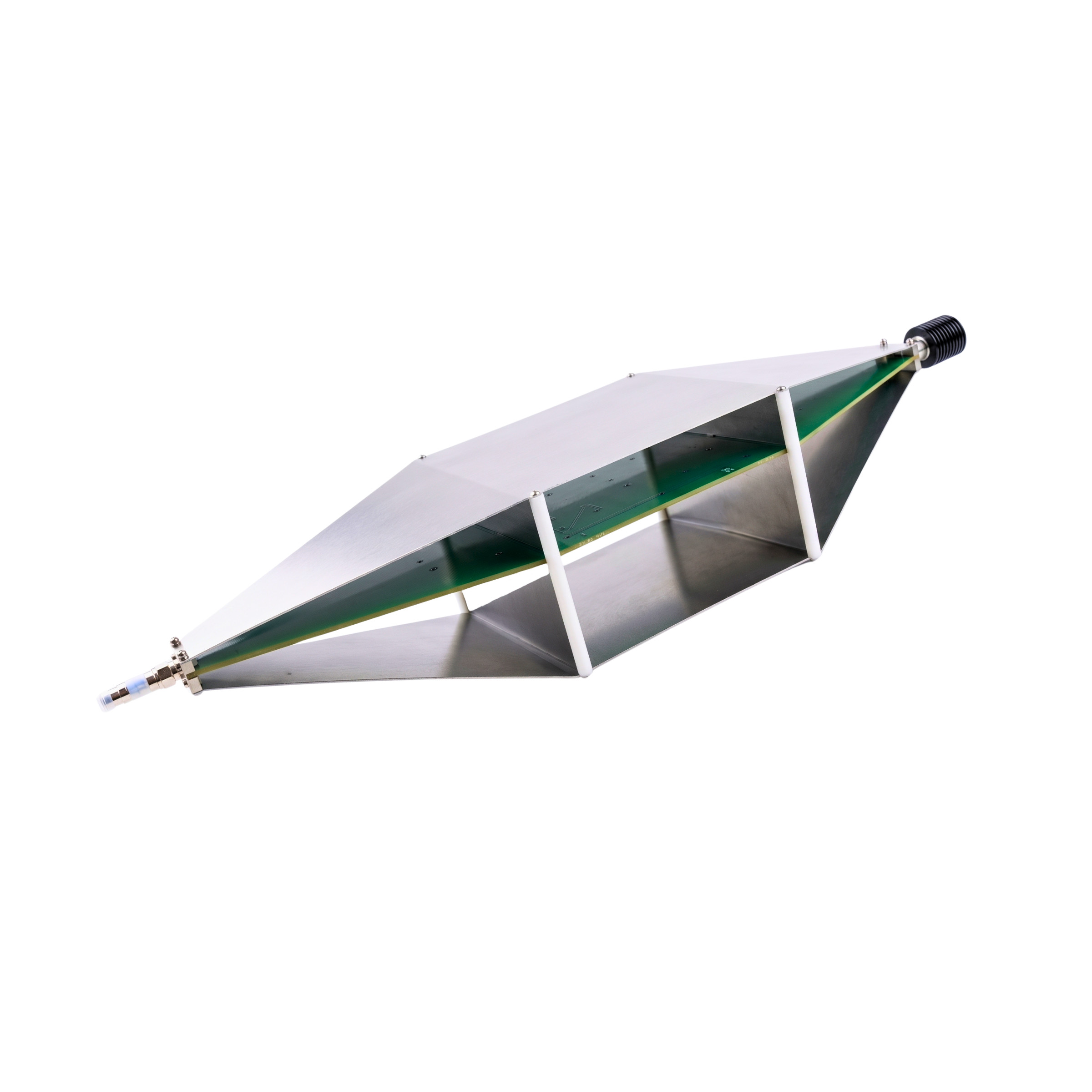

A TEM Cell (Transverse Electromagnetic Cell) is a compact shielded enclosure designed to generate a controlled electromagnetic environment for EMC and RF testing applications. Commonly used for pre-compliance EMC analysis, the TEM Cell enables repeatable evaluation of radiated emissions and immunity performance for small electronic devices, PCB assemblies, and RF components. Its compact structure and controlled test environment support efficient EMC troubleshooting, product development, and laboratory testing.
Specification
Additional information
| Frequency Range | DC – 3GHz |
|---|---|
| Dimension (L×W×H) | 84 x 23 x 15 cm |
| Septum (L x W x H) | 28 x 22 x 10 cm |
| Connector Type | N-Female |
| Nominal Cell Impedance | 50 Ohm |
| Wave Impedance | 377 Ohm |
| Maximum RF Input Power | 25W (limited by the supplied 50Ohm load) |
| Input Return Loss | > -20 up to 1.2GHz; |
| Transmission Loss | < -3dB up to 1.4GHz; |
Description
Key Features
- Controlled electromagnetic test environment
- EMC pre-compliance evaluation
- Compact and shielded structure
- Repeatable RF measurement setup
- Suitable for PCB and small DUT testing
- Emission and immunity testing capability
- Wide frequency measurement support
- Fast EMC troubleshooting and validation
