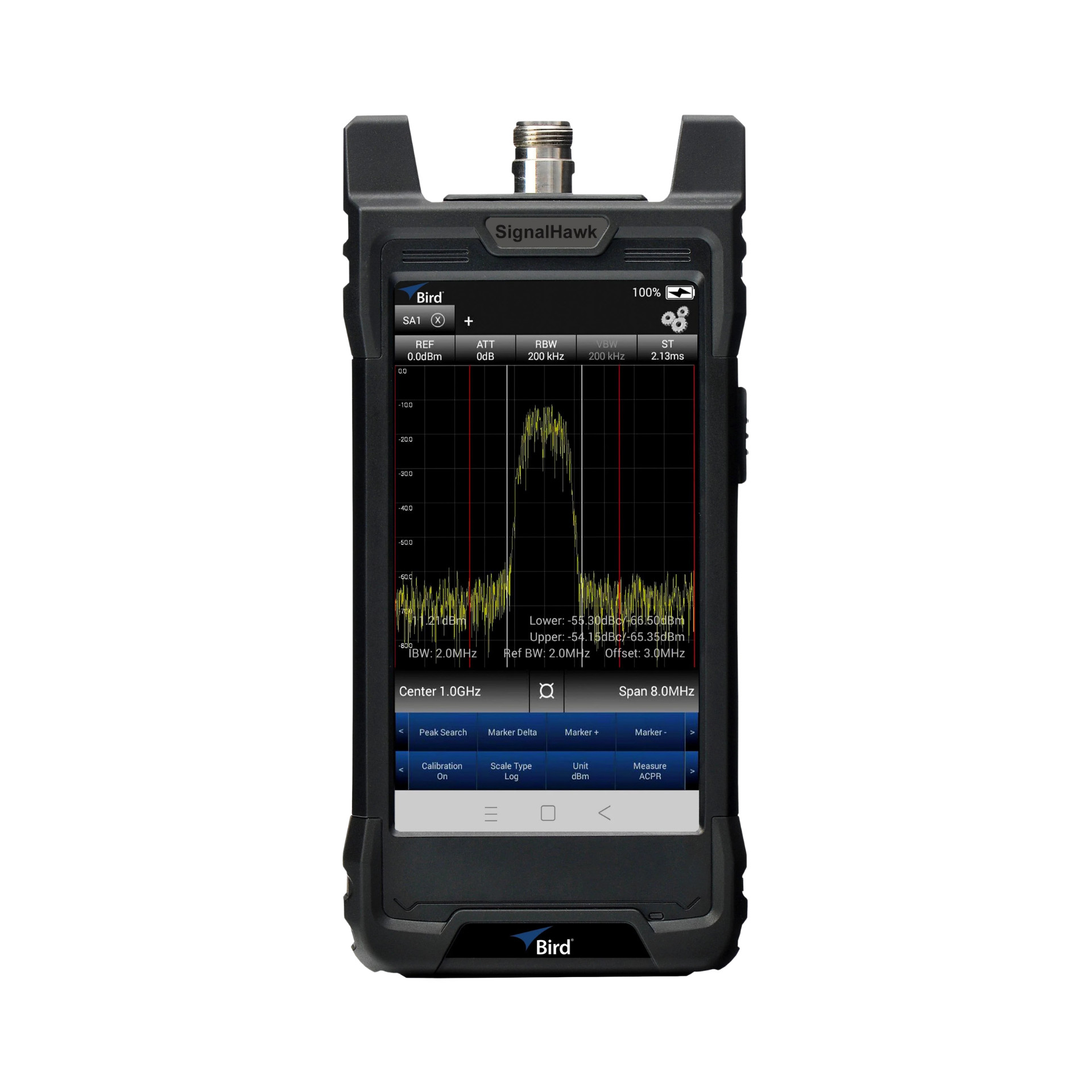

SignalHawk Handheld RF Spectrum Analyzer (TC)
Class: Handheld, Mid-Range
- Rugged handheld touchscreen spectrum analyzer for real-time RF spectrum monitoring
- 9 kHz up to 6 or 7.5 GHz
Product Details
Bird SignalHawk delivers comprehensive spectrum analysis in a compact, handheld device, covering frequencies from 9 kHz to 7.5 GHz. Built for field engineers, technicians, wireless equipment manufacturers, service providers, contractors, tower crews, and military personnel, it provides clear, detailed spectrum insights to support faster troubleshooting and more efficient network optimization.
Specification
| SH-60S-TC | SH-75S-TC | |
|---|---|---|
| Frequency Range | 9 kHz to 6 GHz | 9 kHz to 7.5 GHz |
| Sweep Time | 1.1 ms to 1600 s full span; 2.69 ms to 1600 s settable zero span | 1.2 ms to 1600 s full span; 3.99 ms to 1600 s settable zero span |
| P1dB | +5 dBm nominal | 0 dBm nominal |
| Phase Noise at 1 GHz | -95 dBc/Hz @ 10 kHz; -115 dBc/Hz @ 1 MHz | -88 dBc/Hz @ 10 kHz; -115 dBc/Hz @ 1 MHz |
| Residual Responses | -75 dBm | -60 dBm |
| Aging | ±1 ppm | |
| Resolution Bandwidth | 10 Hz to 5 MHz in 1, 2, 3, 5, 10 steps | |
| Second Harmonic Distortion | 1.6 GHz to -70 dBc | |
| Third Order Intercept (TOI) | +15 dBm, -10 dBm tones, 1 MHz apart, preamp off, reference level -10 dBm | |
| Measurement Range | DANL to +20 dBm | |
| Input Attenuator Range | 0 to 30 dB, 1 dB step | |
| Max Safe Input Level vs. Preamp | All amps off: +20 dBm; 1 amp on: -20 dBm; All amps on: -40 dBm | |
| Reference Level Range | -140 dBm to +20 dBm, ref level offset off; -190 dBm to +70 dBm, ref level offset on | |
| Frequency Span Accuracy | ±1% | |
| RBW Accuracy | ≥1 MHz, ±10%; <1 MHz, ±2% | |
| Amplitude Accuracy | ±1.5 dB | |
| Reference Level Accuracy | ≥-60 dBm, ±0.8 dB | |
| RF Input | N (F) | |
| USB | USB Type-C | |
| Power Interface | Slim tip, DC 20 V, 4.5 A | |
| Display | 5.5 inch, 1280 × 720p | |
| Operating System | Android | |
| Battery Operating Time | 5 hours typical | |
| Battery Charge Time | 6 hours typical | |
| Operating Temperature | 0°C to 50°C | |
| Storage Temperature | -20°C to 70°C | |
| Size | 7.8 × 3.7 × 2.4 in (197 × 93 × 61 mm) | |
| Weight | 1.98 lb (0.9 kg) | |
