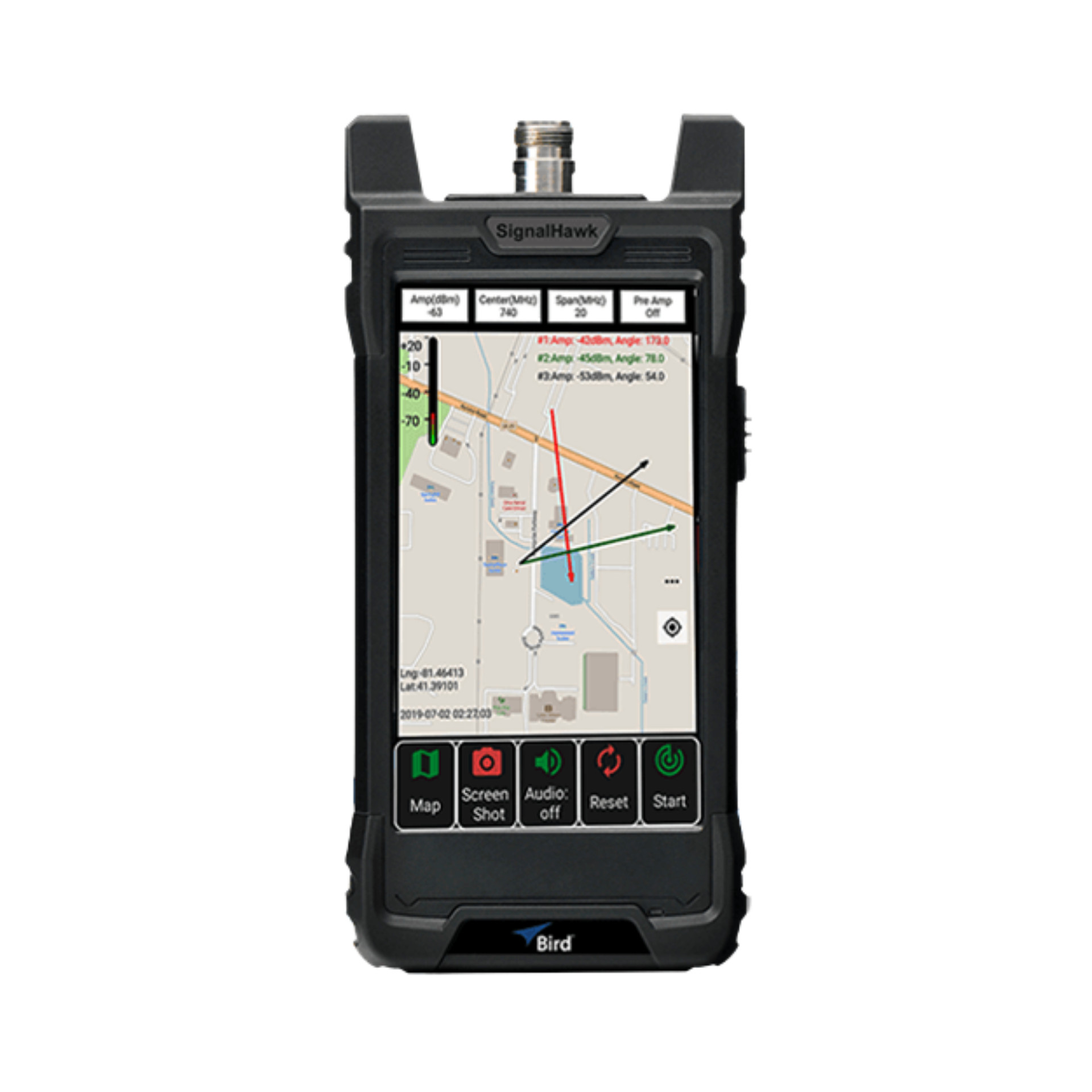

SignalHawk Spectrum Analyzer with Angle of Arrival (AOA Series)
Class: Handheld, High-End
- Top-of-line handheld spectrum analyzer adding GPS-based Angle of Arrival direction-finding to locate RF interference sources on a map
- 9 kHz up to 6 or 7.5 GHz Frequency Range
Product Details
Combines full spectrum analysis with digital mapping (OpenStreetMap), GPS location tracking and signal-strength vectoring to pinpoint EMI/RFI, rogue transmitters, adjacent-channel interference and dead spots – built for interference hunters. Adds field strength, FM demodulation, GNSS signal quality (CNR loss) and spectrum masking; the SH-75S-AOA further adds AM/FM demodulation, digital mod check, I/Q modulation check and time-slot/gate scanning.
Specification
| SH-60S-AOA | SH-75S-AOA | |
|---|---|---|
| Frequency Range | 9 kHz - 6 GHz | 9 kHz - 7.5 GHz |
| Sweep Time | 1.1 ms to 1600 s full span; 2.69 ms to 1600 s settable zero span | 1.2 ms to 1600 s full span; 3.99 ms to 1600 s settable zero span |
| P1dB | +5 dBm nominal | 0 dBm nominal |
| Resolution Bandwidth | 10 Hz to 5 MHz in 1, 2, 3, 5, 10 steps | |
| Measurement Range | DANL to +20 dBm | |
| Input Attenuator Range | 0 to 30 dB, 1 dB step | |
| Frequency Span Accuracy | ±1% | |
| RBW Accuracy | ≥1 MHz, ±10%; <1 MHz, ±2% | |
| Amplitude Accuracy | ±1.5 dB | |
| RF Input | N (F) | |
| USB | USB Type-C | |
| Power Interface | Slim Tip, DC 20 V | |
| Display | 5.5 inch, 1280 × 720p | |
| Operating System | Android | |
| Battery Operating Time | 5 hours typical | |
| Operating Temperature | 0°C to 50°C | |
| Storage Temperature | -20°C to 70°C | |
| Size | 7.8 × 3.7 × 2.4 in (197 × 93 × 61 mm) | |
| Weight | 1.98 lb (0.9 kg) | |
