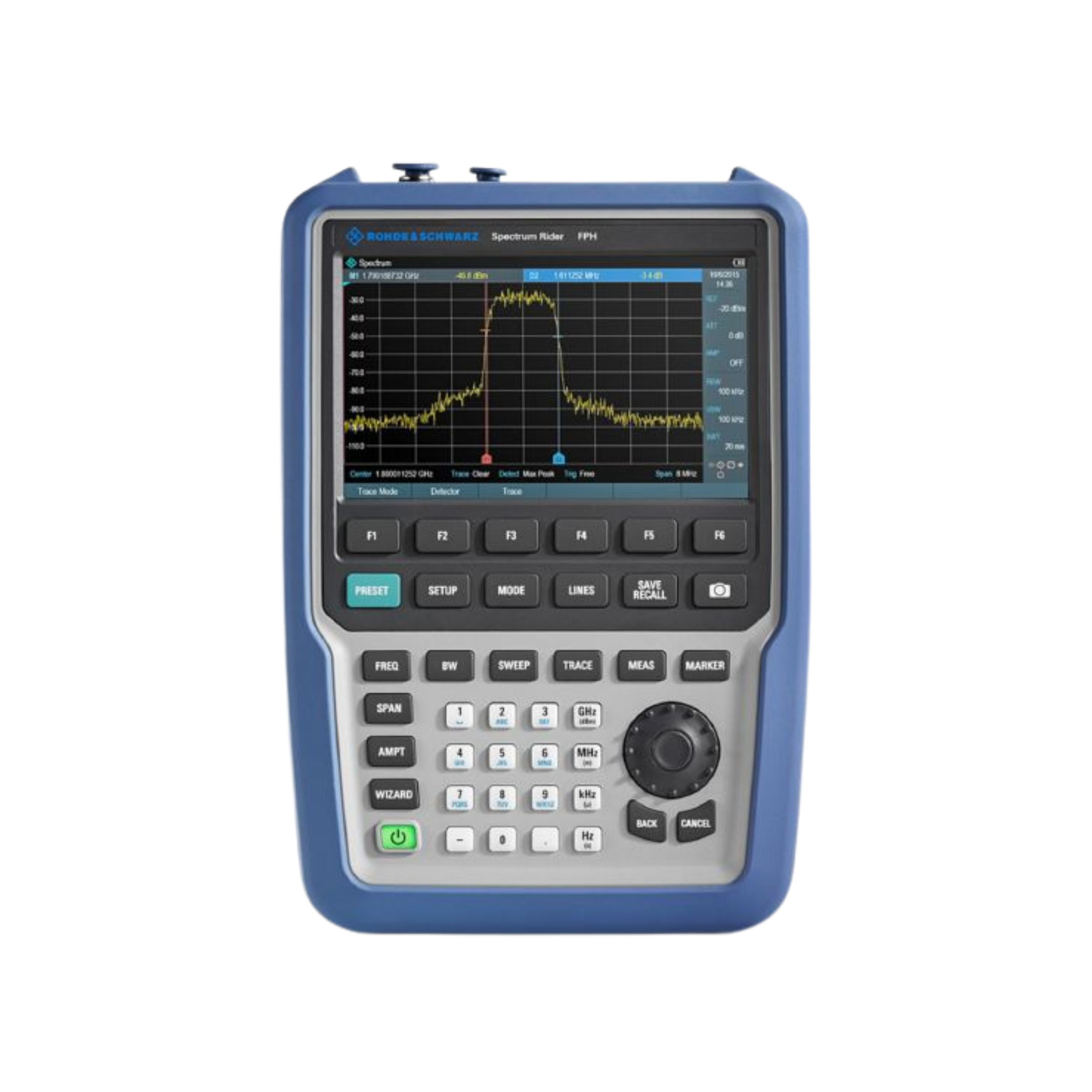

R&S Spectrum Rider FPH Handheld Spectrum Analyzer
Class:
- 5 kHz up to 44 GHz (tracking generator models available)
- Displayed average noise level as low as −163 dBm typical with preamplifier
- Resolution bandwidth from 1 Hz to 3 MHz
- Battery operating time of up to 8 hours
- Starting weight of 2.5 kg with IP51 protection
Product Details
R&S Spectrum Rider FPH Handheld Spectrum Analyzer is built for RF installation, maintenance and troubleshooting in the field. Its rugged design, touchscreen interface and flexible measurement applications support spectrum monitoring, interference hunting, transmitter testing, EMF measurements and modulation analysis, helping users perform reliable measurements efficiently in outdoor and mobile environments.
Specification
| Frequency Range | model .02 | 5 kHz to 2 GHz |
| with R&S®FPH-B3 option installed | 5 kHz to 3 GHz | |
| with R&S®FPH-B3 and R&S®FPH-B4 options installed | 5 kHz to 4 GHz | |
| model .06 | 5 kHz to 6 GHz | |
| with R&S®FPH-B8 option installed | 5 kHz to 8 GHz | |
| models .13/.23 (with tracking generator) | 5 kHz to 13.6 GHz | |
| with R&S®FPH-B20 option installed | 5 kHz to 20 GHz | |
| models .26/.36 (with tracking generator) | 5 kHz to 26.5 GHz | |
| with R&S®FPH-B31 option installed | 5 kHz to 31 GHz | |
| models .44/.54 (with tracking generator) | 5 kHz to 44 GHz | |
| models .06/.13/.26/.23/.36/.44/.54, with R&S®FPH-B29 option installed1 | from 5 kHz down to 100 Hz | |
| Tracking Generator | Models .23 / .36 / .54 only | 100 kHz to model maximum frequency |
| RF Input Connector | Models .02 / .06 / .13 / .23 | Type N, female |
| Models .26 / .36 | PC 3.5 mm, male | |
| Models .44 / .54 | PC 2.92 mm, male | |
| Maximum Rated Input Level | Model .02 | +33 dBm CW RF power, with RF attenuation ≥ 10 dB |
| Models .06 / .13 / .26 | +27 dBm CW RF power, with RF attenuation ≥ 10 dB | |
| Models .23 / .36 / .44 / .54 | +25 dBm CW RF power, with RF attenuation ≥ 10 dB | |
| Battery Operating Time | Model .02 | 8 h |
| Model .06 | 7 h | |
| Models .13 / .26 | 6 h | |
| Models .23 / .36 / .44 / .54 | 4.5 h | |
| Weight | Models .02 / .06 / .13 / .26 | 2.5 kg |
| Models .23 / .36 / .44 / .54 | 3.2 kg | |
| Frequency Resolution | 1 Hz | |
| Number of Sweep Points | 711 | |
| Resolution Bandwidth | 1 Hz to 3 MHz, in 1/3 sequence | |
| Video Bandwidth | 1 Hz to 3 MHz, in 1/3 sequence; 5 MHz in zero span | |
| Displayed Average Noise Level | Down to < -158 dBm specified Down to -163 dBm typical with preamplifier option |
|
| Phase Noise | Down to < -118 dBc at 1 MHz offset Down to -125 dBc typical at 1 MHz offset |
|
| RF Input Impedance | 50 Ω | |
| Input Attenuator | 0 dB to 40 dB, in 5 dB steps | |
| Remote Control | LAN and USB, SCPI command set | |
| Display | WVGA, 800 × 480 pixel | |
| Operating Temperature | -10°C to +55°C | |
| Protection Class | IP51 | |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz | |
| Dimensions (W×H×D) | 202 × 294 × 76 mm | |
