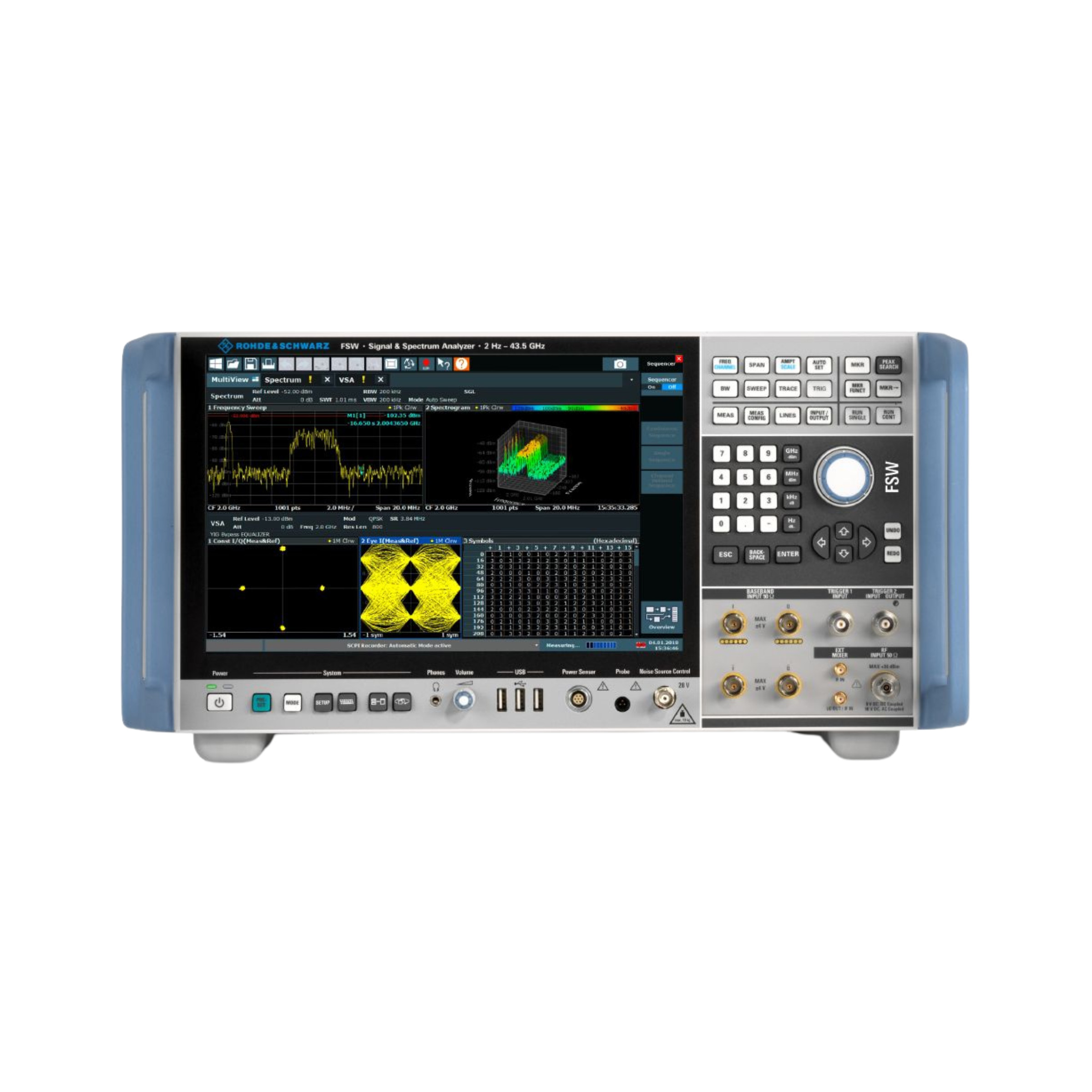

R&S FSW Signal and Spectrum Analyzer Series
Class: High-End
- 2 Hz to 8, 13.6, 26.5, 43.5, 50, 67 or 85 GHz, depending on the selected model
- Frequency coverage up to 90 GHz with the R&S FSW-B90G option
- Up to 8.312 GHz signal analysis bandwidth
- SSB phase noise of −140 dBc/Hz typical at 10 kHz offset
- Frequency resolution of 0.01 H
Product Details
R&S FSW Signal and Spectrum Analyzer is a high-end platform for analyzing wideband and complex RF signals in advanced wireless, radar, satellite and aerospace applications. Its flexible measurement applications and parallel analysis capabilities help engineers investigate signal behavior, identify impairments and accelerate development and verification of demanding communication and systems.
Specification
| Frequency Range | R&S® FSW8 | 2 Hz to 8 GHz, DC coupled 10 MHz to 8 GHz, AC coupled |
| R&S® FSW13 | 2 Hz to 13.6 GHz, DC coupled 10 MHz to 13.6 GHz, AC coupled |
|
| R&S® FSW26 | 2 Hz to 26.5 GHz, DC coupled 10 MHz to 26.5 GHz, AC coupled |
|
| R&S® FSW43 | 2 Hz to 43.5 GHz, DC coupled 10 MHz to 43.5 GHz, AC coupled |
|
| R&S® FSW50 | 2 Hz to 50 GHz, DC coupled 10 MHz to 50 GHz, AC coupled |
|
| R&S® FSW67 | 2 Hz to 67 GHz, DC coupled 10 MHz to 67 GHz, AC coupled |
|
| R&S® FSW85 | 2 Hz to 85 GHz, RF1 input 2 Hz to 90 GHz with R&S® FSW-B90G option 2 Hz to 67 GHz, RF2 input |
|
| RF Input Connector | R&S® FSW8 / FSW13 | N female |
| R&S® FSW26 | APC 3.5 mm male, compatible with SMA | |
| R&S® FSW43 | 2.92 mm male, compatible with SMA | |
| R&S® FSW50 / FSW67 | 1.85 mm male, compatible with 2.4 mm | |
| R&S® FSW85 | RF1 input: 1.00 mm male RF2 input: 1.85 mm male, compatible with 2.4 mm |
|
| Power Consumption | R&S® FSW8 | 150 W without options; 250 W with all options |
| R&S® FSW13 / FSW26 | 175 W without options; 275 W with all options | |
| R&S® FSW43 / FSW50 | 200 W without options; 300 W with all options | |
| R&S® FSW67 | 220 W without options; 320 W with all options | |
| R&S® FSW85 | 230 W without options; 330 W with all options | |
| Dimensions (W×H×D) | R&S® FSW8 to FSW67 | 462 × 240 × 504 mm |
| R&S® FSW85 | 462 × 240 × 610 mm | |
| Weight | R&S® FSW8 | 20.2 kg |
| R&S® FSW13 / FSW26 | 21.5 kg | |
| R&S® FSW43 / FSW50 | 22.4 kg | |
| R&S® FSW67 | 23.7 kg | |
| R&S® FSW85 | 27.9 kg | |
| Frequency Resolution | 0.01 Hz | |
| Number of Sweep Points | 101 to 100001 | |
| Resolution Bandwidth | 1 Hz to 10 MHz standard Up to 80 MHz with options |
|
| Video Bandwidth | 1 Hz to 10 MHz standard | |
| Signal Analysis Bandwidth | 28 MHz standard Up to 8312 MHz with options |
|
| Phase Noise | < -136 dBc at 10 kHz offset < -145 dBc at 1 MHz offset |
|
| Maximum Input Level | 20 dBm with 0 dB RF attenuation 30 dBm with RF attenuation ≥ 10 dB |
|
| RF Input Impedance | 50 Ω | |
| RF Attenuator | 0 dB to 79 dB, in 1 dB steps | |
| Remote Control | LAN, USB and IEC/IEEE bus interface | |
| Display | 12.1" WXGA color touchscreen, 1280 × 800 | |
| Data Storage | ≥ 128 GB internal solid state disk | |
| Operating Temperature | +5°C to +50°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz / 400 Hz | |
