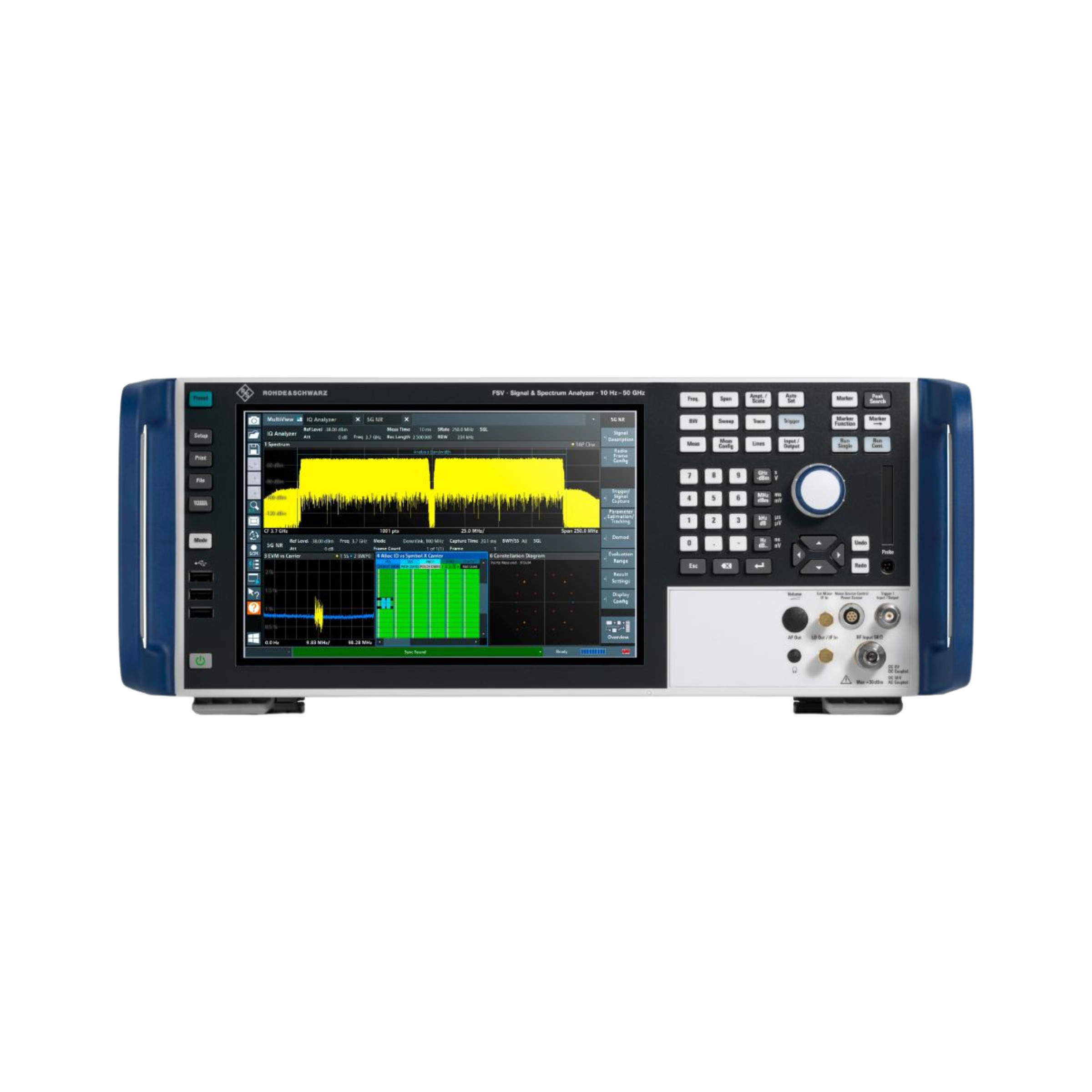

R&S FSV3000 Signal and Spectrum Analyzer Series
Class: Mid-Range
- 10 Hz to 4, 7.5, 13.6, 30, 44 or 50 GHz, depending on the selected model
- Up to 200 MHz signal analysis bandwidth
- SSB phase noise below −114 dBc/Hz at 10 kHz offset with the optional low phase noise upgrade
- Resolution bandwidth from 1 Hz to 10 MHz
- Frequency resolution of 0.01 H
Product Details
R&S FSV3000 Signal and Spectrum Analyzer is designed for efficient wireless signal analysis in R&D, system testing, verification and production. Its intuitive interface, SCPI recorder, event-based actions and dedicated measurement applications simplify complex setups, automate repetitive tasks and accelerate testing across 5G NR, analog, digital, radar, satellite and EMI applications.
Specification
| Frequency Range | R&S® FSV3004 | 10 Hz to 4 GHz, DC coupled 10 MHz to 4 GHz, AC coupled |
| R&S® FSV3007 | 10 Hz to 7.5 GHz, DC coupled 10 MHz to 7.5 GHz, AC coupled |
|
| R&S® FSV3013 | 10 Hz to 13.6 GHz, DC coupled 10 MHz to 13.6 GHz, AC coupled |
|
| R&S® FSV3030 | 10 Hz to 30 GHz, DC coupled 10 MHz to 30 GHz, AC coupled |
|
| R&S® FSV3044 | 10 Hz to 44 GHz, DC coupled 10 MHz to 44 GHz, AC coupled |
|
| R&S® FSV3050 | 10 Hz to 50 GHz, DC coupled 10 MHz to 50 GHz, AC coupled |
|
| RF Input Connector | R&S® FSV3004 / FSV3007 / FSV3013 | Type N, female |
| R&S® FSV3030 | APC 3.5 mm male, compatible with SMA | |
| R&S® FSV3044 | 2.92 mm male, compatible with SMA | |
| R&S® FSV3050 | 1.85 mm male | |
| Power Consumption | R&S® FSV3004 / FSV3007 | 120 W nominal; max. 250 W with all options |
| R&S® FSV3013 / FSV3030 / FSV3044 | 170 W nominal; max. 300 W with all options | |
| R&S® FSV3050 | 200 W nominal; max. 330 W with all options | |
| Weight | R&S® FSV3004 / FSV3007 | 12.2 kg |
| R&S® FSV3013 | 13.6 kg | |
| R&S® FSV3030 | 13.8 kg | |
| R&S® FSV3044 | 14.6 kg | |
| R&S® FSV3050 | 15.6 kg | |
| Frequency Resolution | 0.01 Hz | |
| Number of Sweep Points | 101 to 100001 | |
| Resolution Bandwidth | 1 Hz to 10 MHz standard Up to 40 MHz with R&S® FSV3-B8E option |
|
| Video Bandwidth | 1 Hz to 10 MHz | |
| Signal Analysis Bandwidth | 28 MHz standard 40 MHz with R&S® FSV3-B40 option 200 MHz with R&S® FSV3-B200 option |
|
| Displayed Average Noise Level | Down to -151 dBm specified, -154 dBm typical without preamplifier Down to -164 dBm specified, -165 dBm typical with preamplifier option |
|
| Phase Noise | < -107 dBc at 10 kHz offset < -114 dBc at 10 kHz offset with R&S® FSV3-B710 option |
|
| Maximum Input Level | 20 dBm with 0 dB RF attenuation 30 dBm with RF attenuation ≥ 10 dB 50 V DC, AC coupled |
|
| RF Input Impedance | 50 Ω | |
| RF Attenuator | 0 dB to 75 dB, in 5 dB steps | |
| Remote Control | LAN and USB; optional GPIB | |
| Display | 10.1" WXGA color LCD, 1280 × 800 | |
| Data Storage | ≥ 50 GB internal solid-state drive | |
| Operating Temperature | 0°C to +50°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz and 400 Hz | |
| Dimensions (W×H×D) | 462 × 197 × 417 mm | |
