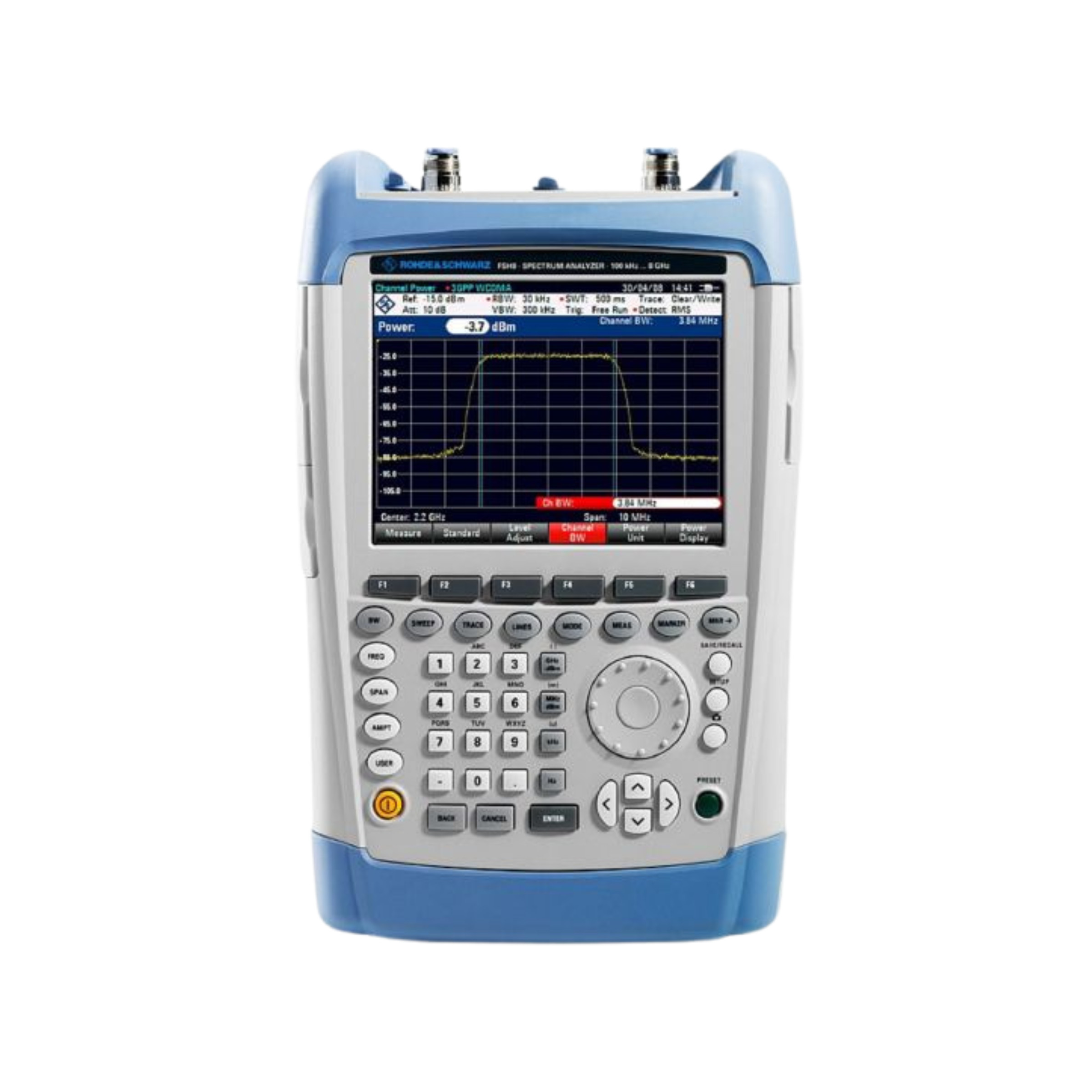

R&S FSH Handheld Spectrum Analyzer (Combo VNA/CAT)
Class: Handheld – High-End (VNA/CAT Combo)
- 9 kHz up to 20 GHz
- Displayed average noise level as low as −165 dBm typical with preamplifier
- Resolution bandwidth from 1 Hz to 5 MHz
- Battery operating time of up to 4.5 hours
- Weighs under 3 kg with IP51 protection
Product Details
R&S FSH Handheld Spectrum Analyzer is a versatile field instrument for installing, maintaining and troubleshooting RF systems. It supports spectrum monitoring, interference hunting, transmitter testing, cable and antenna analysis, power measurements and modulation analysis, helping technicians complete a broad range of on-site measurements with one portable, easy-to-operate platform efficiently and reliably.
Specification
| Frequency Range | R&S® FSH4, models .04/.14 | 9 kHz to 3.6 GHz |
| R&S® FSH8, models .08/.18 | 9 kHz to 8 GHz | |
| R&S® FSH4, model .24 | 100 kHz to 3.6 GHz | |
| R&S® FSH8, model .28 | 100 kHz to 8 GHz | |
| R&S® FSH13, models .13/.23 | 9 kHz to 13.6 GHz | |
| R&S® FSH20, models .20/.30 | 9 kHz to 20 GHz | |
| Tracking Generator | models .14/.24 | 100 kHz to 3.6 GHz |
| models .18/.23/.28/.30 | 100 kHz to 8 GHz | |
| Maximum Rated Input Level | R&S® FSH4 / FSH8, models .04/.08/.14/.18 | 80 V DC 30 dBm CW RF power |
| R&S® FSH4 / FSH8, models .24/.28; R&S® FSH13 / FSH20 | 50 V DC 30 dBm CW RF power |
|
| Frequency Resolution | 1 Hz | |
| Number of Sweep Points | 631 | |
| Resolution Bandwidth | 1 Hz to 5 MHz, in 1/3 sequence 10 MHz and 20 MHz additionally in zero span |
|
| Video Bandwidth | 1 Hz to 3 MHz, in 1/3 sequence 10 MHz additionally in zero span |
|
| Phase Noise | < -95 dBc at 30 kHz offset < -100 dBc at 100 kHz offset < -120 dBc at 1 MHz offset |
|
| RF Input | 50 Ω, N female | |
| Input Attenuator | 0 dB to 40 dB, in 5 dB steps | |
| Sweep Time | 100 μs to 1000 s in zero span 20 ms to 1000 s for 10 Hz to 600 MHz span |
|
| Remote Control | SCPI, LAN and USB with R&S® FSH-K40 option | |
| Display | 640 × 480 pixel | |
| Data Storage | Internal flash memory, SD card and USB memory stick support | |
| Operating Temperature | -10°C to +55°C | |
| Protection Class | IP51 IP54 with R&S® HA-Z222 carrying holster and rain cap |
|
| Battery Operating Time | 4.5 h with R&S® HA-Z206 battery | |
| Power Consumption | 12 W typical | |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz | |
| Dimensions (W×H×D) | 194 × 300 × 144 mm with handle 194 × 300 × 69 mm without handle |
|
| Weight | < 3 kg | |
