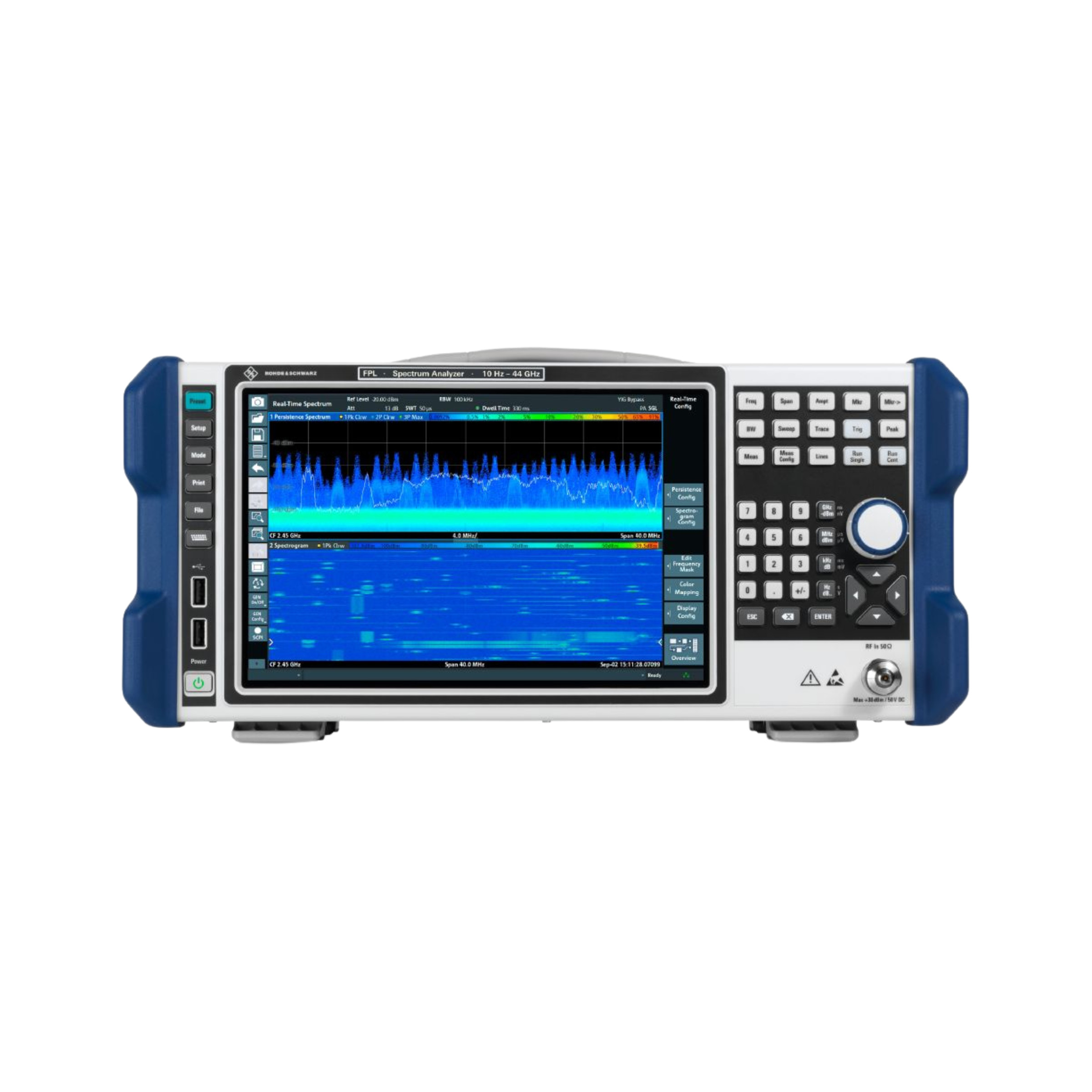

R&S FPL Signal and Spectrum Analyzer Series
Class: Entry-Level
- Displayed average noise level as low as −166 dBm typical with preamplifier
- Signal analysis bandwidth of 12.8 MHz, upgradeable to 40 MHz
- Measurement update time as low as 1 ms for 1001 sweep points
- 10.1-inch display with a compact design starting from 6 kg
Product Details
R&S FPL Spectrum Analyzer Series is a versatile solution for RF development, production, service and field testing. Its intuitive touchscreen interface, application-focused measurement options and optional battery operation support spectrum monitoring, signal characterization, troubleshooting and EMI analysis across laboratory and portable environments for a wide range of everyday RF applications.
Specification
| Frequency Range | R&S® FPL1003 | 5 kHz to 3 GHz |
| R&S® FPL1007 | 5 kHz to 7.5 GHz | |
| R&S® FPL1014 | 5 kHz to 14 GHz | |
| R&S® FPL1026 | 5 kHz to 26.5 GHz | |
| R&S® FPL1044 | 10 Hz to 44 GHz, DC coupled 5 kHz to 44 GHz, AC coupled |
|
| RF Input Connector | R&S® FPL1003 / FPL1007 / FPL1014 | Type N female |
| R&S® FPL1026 | PC 2.92 mm female test port adapter | |
| R&S® FPL1044 | 2.92 mm male, compatible with SMA and 3.5 mm | |
| Power Consumption | R&S® FPL1003 / FPL1007 | 65 W nominal; max. 115 W with all options |
| R&S® FPL1014 | 80 W nominal; max. 130 W with all options | |
| R&S® FPL1026 | 85 W nominal; max. 140 W with all options | |
| R&S® FPL1044 | 110 W nominal; max. 160 W with all options | |
| Weight | R&S® FPL1003 / FPL1007 | 6 kg |
| R&S® FPL1014 / FPL1026 | 7 kg | |
| R&S® FPL1044 | 7.7 kg | |
| Frequency Resolution | 0.01 Hz | |
| Number of Sweep Points | 101 to 100001 | |
| Resolution Bandwidth | 1 Hz to 10 MHz, depending on filter mode | |
| Video Bandwidth | 1 Hz to 10 MHz | |
| Signal Analysis Bandwidth | 12.8 MHz standard 40 MHz with R&S® FPL1-B40 option |
|
| DANL | Down to < -149 dBm specified, < -152 dBm typical Down to < -163 dBm specified, < -166 dBm typical with preamplifier option |
|
| Phase Noise | < -105 dBc at 10 kHz offset, -108 dBc typical < -130 dBc at 1 MHz offset, -135 dBc typical |
|
| Maximum Input Level | 20 dBm with 0 dB RF attenuation 30 dBm with RF attenuation ≥ 10 dB 50 V DC |
|
| RF Input Impedance | 50 Ω | |
| RF Attenuator | 0 dB to 45 dB, in 5 dB steps | |
| Trigger | Free run, video, external, IF power, I/Q power | |
| Remote Control | LAN and USB; optional GPIB | |
| Display | 10.1" WXGA color LCD, 1280 × 800 | |
| Data Storage | 128 GB internal SSD | |
| Operating Temperature | 0°C to +50°C | |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz | |
| Dimensions (W×H×D) | 408 × 186 × 235 mm | |
