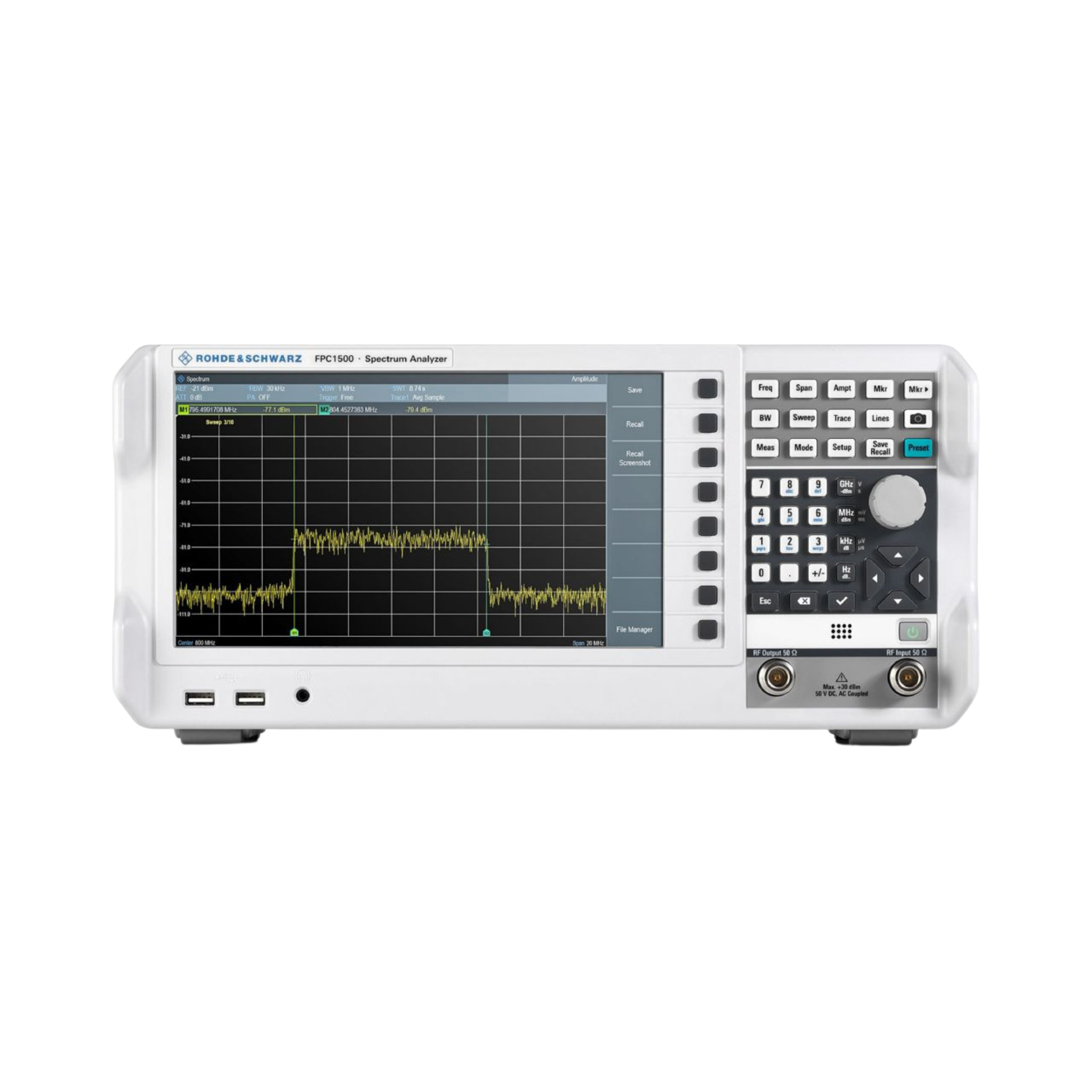

R&S FPC Spectrum Analyzer Series
Class: Economy / Entry-Level
- 5 kHz to 1 GHz, upgradeable to 2 GHz or 3 GHz
- Displayed average noise level as low as −165 dBm typical with preamplifier
- Resolution bandwidth from 1 Hz to 3 MHz
- FPC1500 includes a tracking generator and supports optional vector network analysis
- 10.1-inch display with a compact 3 kg design
Product Details
R&S FPC Spectrum Analyzer Series is an accessible, upgradeable platform for RF development, education, service and production testing. Its intuitive interface and flexible measurement options support spectrum analysis, modulation analysis, receiver measurements and, on the FPC1500, vector network analysis for efficient troubleshooting and characterization across a wide variety of applications and testing needs.
Specification
| Frequency Range | R&S® FPC1000 / FPC1500 | 5 kHz to 1 GHz |
| With R&S® FPC-B2 option | 5 kHz to 2 GHz | |
| With R&S® FPC-B2 and FPC-B3 options | 5 kHz to 3 GHz | |
| Model Difference | R&S® FPC1000 | Spectrum analyzer |
| R&S® FPC1500 | Spectrum analyzer with tracking generator | |
| Tracking Generator / Source | R&S® FPC1500 only | 5 kHz to 3 GHz, depending on frequency options |
| Power Consumption | R&S® FPC1000 | 14 W nominal |
| R&S® FPC1500 | 19 W nominal | |
| Frequency Resolution | 1 Hz | |
| Number of Sweep Points | 1183 | |
| Resolution Bandwidth | 1 Hz to 3 MHz in 1/3 sequence | |
| Video Bandwidth | 1 Hz to 3 MHz in 1/3 sequence | |
| Displayed Average Noise Level | < -142 dBm from 10 MHz to 2 GHz < -158 dBm with preamplifier option |
|
| Phase Noise | < -98 dBc at 100 kHz offset < -120 dBc at 1 MHz offset |
|
| Maximum Rated Input Level | +33 dBm RF power; 50 V DC | |
| RF Input | 50 Ω, N female | |
| Trigger | Free run, video, external, I/Q power | |
| Optional Measurements | AM, FM, ASK, FSK, receiver mode, advanced measurements, VNA measurements for FPC1500 | |
| Remote Control | LAN and USB, SCPI command set | |
| Display | 10.1", 1366 × 768 pixel | |
| Operating Temperature | +10°C to +40°C | |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz | |
| Dimensions (W×H×D) | 396 × 185 × 156 mm, including feet | |
| Weight | 3 kg | |
