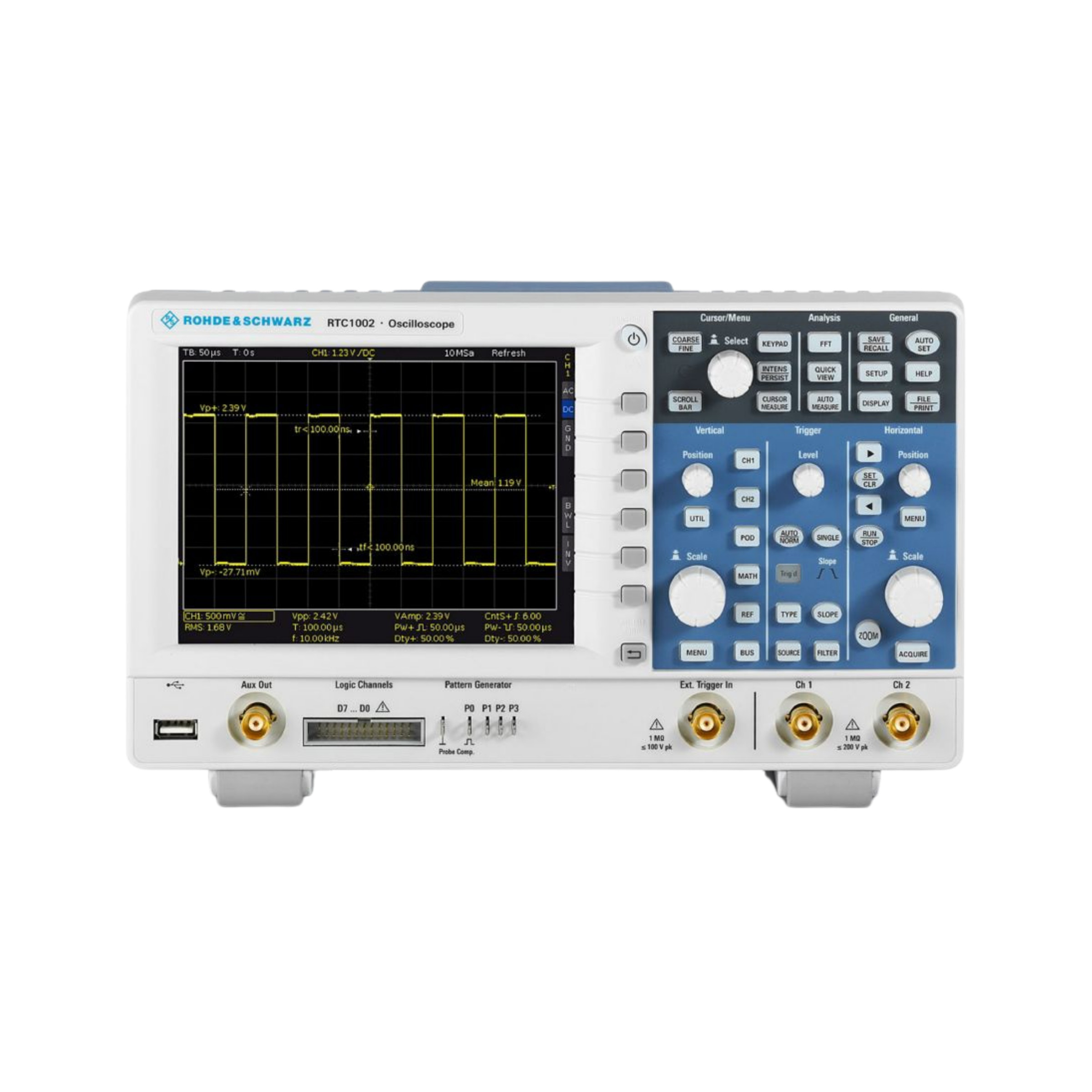

R&S RTC1000 Oscilloscope
Class: Entry-Level
- 50 MHz to 300 MHz, depending on the selected bandwidth option
- Two analog input channels
- Up to 2 Gsample/s interleaved sampling rate
- Up to 2 Msample interleaved acquisition memory
- Waveform update rate of more than 10,000 waveforms per second
Product Details
R&S RTC1000 Oscilloscope is a compact, multifunctional instrument for embedded development, education, maintenance and troubleshooting. It combines oscilloscope measurements with logic and protocol analysis, waveform generation, frequency analysis, digital voltage measurement and component testing, helping users perform everyday electronic measurements efficiently using a single benchtop platform.
Specification
| Input Channels | R&S® RTC1002 | 2 channels |
| Analog Bandwidth | R&S® RTC1002 | > 50 MHz |
| With R&S® RTC-B220 option | > 70 MHz | |
| With R&S® RTC-B221 option | > 100 MHz | |
| With R&S® RTC-B222 option | > 200 MHz | |
| With R&S® RTC-B223 option | > 300 MHz | |
| Rise Time | R&S® RTC1002 | < 7 ns |
| 70 / 100 / 200 / 300 MHz bandwidth | < 5 ns / < 3.5 ns / < 1.75 ns / < 1.15 ns | |
| Mixed Signal Option | R&S® RTC-B1 | 8 digital channels, 1 Gsample/s |
| Serial Bus Options | R&S® RTC-K1 / K2 / K3 | I²C, SPI, UART, RS-232, RS-422, RS-485, CAN and LIN |
| Maximum Realtime Sampling Rate | 2 × 1 Gsample/s 1 × 2 Gsample/s interleaved |
|
| Memory Depth per Channel | 2 × 1 Msample 1 × 2 Msample interleaved |
|
| Vertical Resolution | 8 bit, up to 16 bit with high-resolution decimation mode | |
| Input Impedance | 1 MΩ ±2% with 14 pF ±2 pF | |
| Input Sensitivity | 1 mV/div to 10 V/div | |
| Maximum Input Voltage | Max. 200 Vp | |
| Timebase Range | 1 ns/div to 100 s/div | |
| Waveform Acquisition Rate | Up to 10 000 waveforms/s | |
| Trigger Types | Edge, pulse, video, logic and serial bus | |
| FFT Analysis | 2 ksample to 128 ksample | |
| Digital Voltmeter | DC, AC + DC (RMS), AC (RMS) | |
| Frequency Counter | 5-digit resolution | |
| Waveform and Pattern Generator | R&S® RTC-B6 option | |
| Interfaces | USB host, USB device and LAN | |
| Display | 6.5" VGA color display, 640 × 480 | |
| Operating Temperature | +5°C to +40°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz | |
| Power Consumption | Max. 25 W | |
| Dimensions (W×H×D) | 285 × 175 × 140 mm | |
| Weight | 1.7 kg | |
