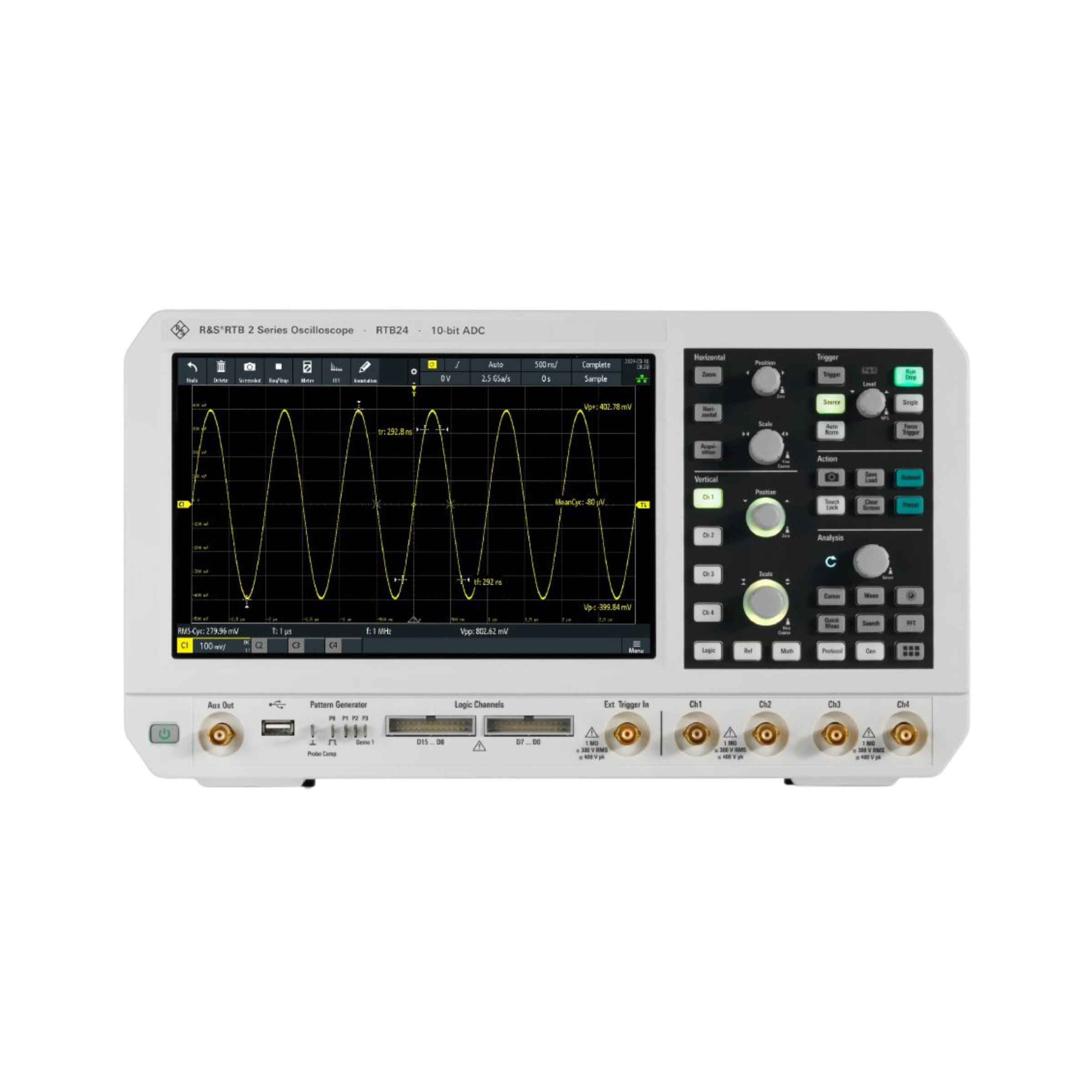

R&S RTB 2 Oscilloscope
Class: Economy
- 70 MHz bandwidth, upgradeable to 100, 200 or 300 MHz
- Two or four analog channels, depending on the selected model
- Up to 2.5 Gsample/s real-time sampling rate
- Up to 20 Msample memory depth per channel
- 10-bit vertical resolution, extendable to 16 bit in high-resolution mode
Product Details
R&S RTB 2 Series Oscilloscope is a versatile benchtop instrument for electronics development, education and troubleshooting. Its integrated measurement, analysis and signal-generation tools help users examine analog and digital circuits, decode serial buses, perform frequency response analysis and capture intermittent events without relying on multiple separate instruments.
Specification
| Input Channels | R&S® RTB22 | 2 channels |
| R&S® RTB24 | 4 channels | |
| Analog Bandwidth | Base model | > 70 MHz |
| With bandwidth upgrade | 100 MHz, 200 MHz or 300 MHz | |
| Rise Time | Base model | < 5 ns |
| 100 MHz / 200 MHz / 300 MHz bandwidth | < 3.5 ns / < 1.75 ns / < 1.15 ns | |
| Mixed Signal Option | R&S® RTB2-B1 | 16 digital channels, 300 MHz |
| Maximum Realtime Sampling Rate | 1.25 Gsample/s normal mode 2.5 Gsample/s interleaved mode |
|
| Memory Depth per Channel | 10 Msample normal mode 20 Msample interleaved mode |
|
| Vertical Resolution | 10 bit, up to 16 bit with high-resolution decimation mode | |
| Input Impedance | 1 MΩ ±2% with 9 pF ±2 pF | |
| Input Coupling | DC, AC | |
| Input Sensitivity | 1 mV/div to 5 V/div | |
| Maximum Input Voltage | 300 V RMS, max. 400 Vp | |
| Timebase Range | 1 ns/div to 500 s/div | |
| Waveform Acquisition Rate | Up to 50 000 waveforms/s | |
| Trigger Types | Edge, width, video, pattern, runt, rise time, fall time, serial bus, timeout and line | |
| Automatic Measurements | 8 active measurements, with statistics and cursor functions | |
| Waveform Generator | Standard functionality 14 bit, 250 Msample/s, sine up to 25 MHz |
|
| History and Segmented Memory | Standard functionality, up to 320 Msample per channel | |
| Frequency Response Analysis | 10 Hz to 25 MHz with R&S® RTB-K36 option | |
| Display | 10.1" WXGA capacitive touchscreen, 1280 × 800 | |
| Interfaces | USB host, USB device, Ethernet 1 Gbit, external trigger, AUX OUT | |
| Operating Temperature | 0°C to +50°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 400 Hz | |
| Power Consumption | Max. 60 W | |
| Dimensions (W×H×D) | 390 × 220 × 152 mm | |
| Weight | 2.5 kg | |
