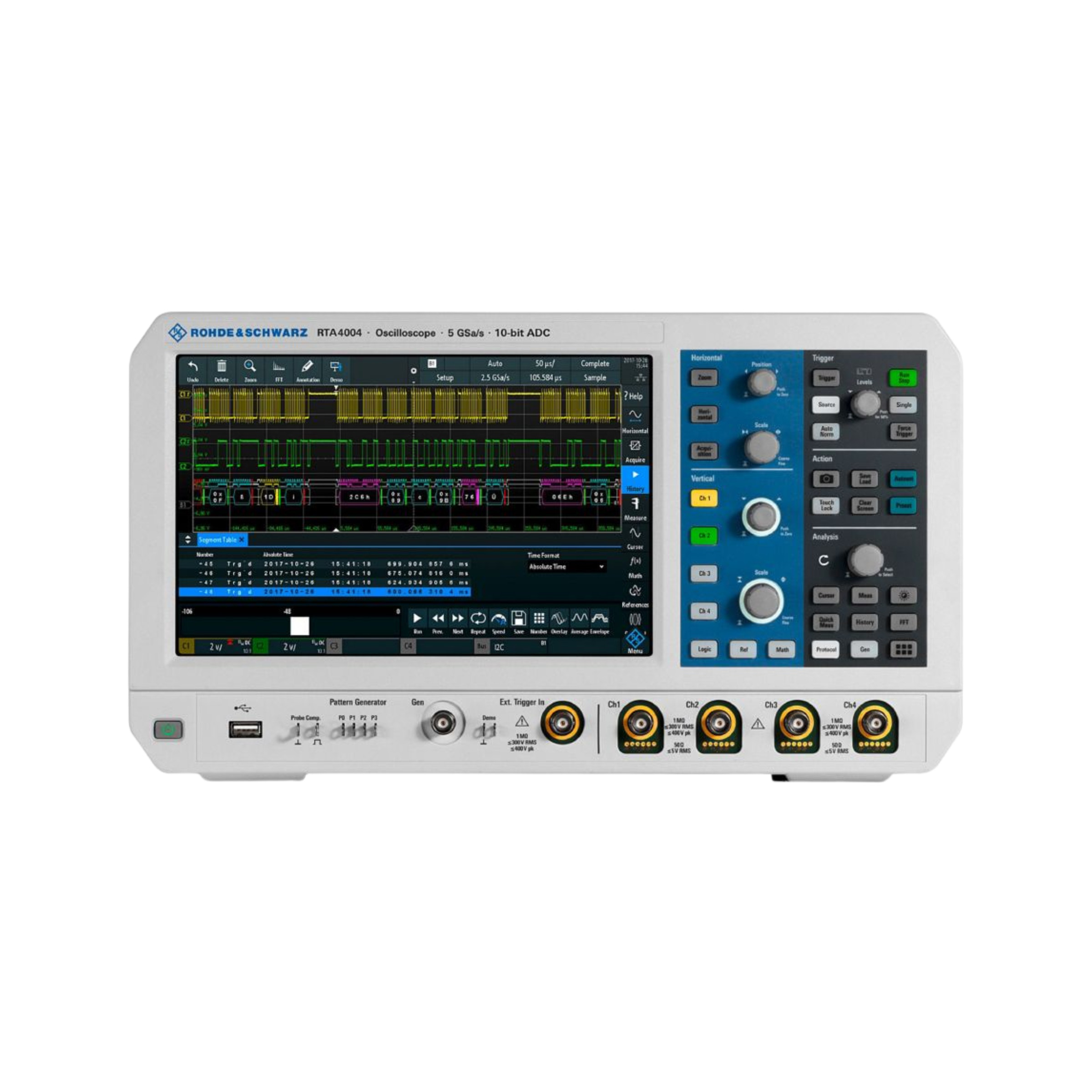

R&S RTA4000 Oscilloscope
Class: Mid-Range (Upper)
- 200 MHz to 1 GHz, depending on the selected bandwidth option
- Four analog input channels
- Up to 5 Gsample/s real-time sampling rate
- Up to 200 Msample memory depth per channel
- 10-bit vertical resolution, extendable to 16 bit in high-resolution mode
Product Details
R&S RTA4000 Oscilloscope is a powerful platform for debugging embedded systems, analyzing power electronics and validating complex digital designs. Its responsive touchscreen, advanced triggering, spectrum analysis, protocol decoding and deep-memory tools help engineers capture rare events, investigate long signal sequences and accelerate development, verification and troubleshooting in demanding laboratory environments.
Specification
| Input Channels | R&S® RTA4004 | 4 channels |
| Analog Bandwidth | Base model | > 200 MHz |
| With R&S® RTA-B243 option | > 350 MHz | |
| With R&S® RTA-B245 option | > 500 MHz | |
| With R&S® RTA-B2410 option | > 1 GHz | |
| Rise Time | Base model | < 1.75 ns |
| 350 MHz / 500 MHz / 1 GHz bandwidth | < 1 ns / < 700 ps / < 350 ps | |
| Mixed Signal Option | R&S® RTA-B1 | 16 logic channels, 400 MHz |
| Waveform Generator Option | R&S® RTA-B6 | 14 bit, 250 Msample/s, sine up to 25 MHz |
| Serial Bus Options | R&S® RTA-K1 / K2 / K3 / K5 / K6 / K7 | I²C, SPI, UART, RS-232, RS-422, RS-485, CAN, LIN, I²S, MIL-STD-1553 and ARINC 429 |
| Maximum Realtime Sampling Rate | 2.5 Gsample/s normal mode 5 Gsample/s interleaved mode |
|
| Memory Depth per Channel | 100 Msample normal mode 200 Msample interleaved mode |
|
| Vertical Resolution | 10 bit, up to 16 bit with high-resolution decimation | |
| Input Impedance | 50 Ω ±1.5% 1 MΩ ±1% || 14 pF ±1 pF |
|
| Input Coupling | DC, AC | |
| Input Sensitivity | 0.5 mV/div to 1 V/div at 50 Ω 0.5 mV/div to 10 V/div at 1 MΩ |
|
| Maximum Input Voltage | 5 V RMS, max. 30 Vp at 50 Ω 300 V RMS, 400 Vp at 1 MΩ |
|
| Timebase Range | 0.5 ns/div to 500 s/div | |
| Waveform Acquisition Rate | Up to 64 000 waveforms/s | |
| Trigger Types | Edge, width, video, pattern, runt, rise time, fall time, serial bus, line and timeout | |
| Automatic Measurements | 8 active measurements, with statistics and cursor functions | |
| History and Segmented Memory | Standard functionality Up to 200 Msample segment size |
|
| Fast Segmented Mode | Up to 2 000 000 waveforms/s, with blind time below 200 ns | |
| Display | 10.1" WXGA capacitive touchscreen, 1280 × 800 | |
| Interfaces | USB host, USB device, Ethernet 1 Gbit, external trigger, AUX OUT | |
| Operating Temperature | 0°C to +50°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz | |
| Power Consumption | Max. 160 W | |
| Dimensions (W×H×D) | 390 × 220 × 152 mm | |
| Weight | 3.3 kg without options | |
