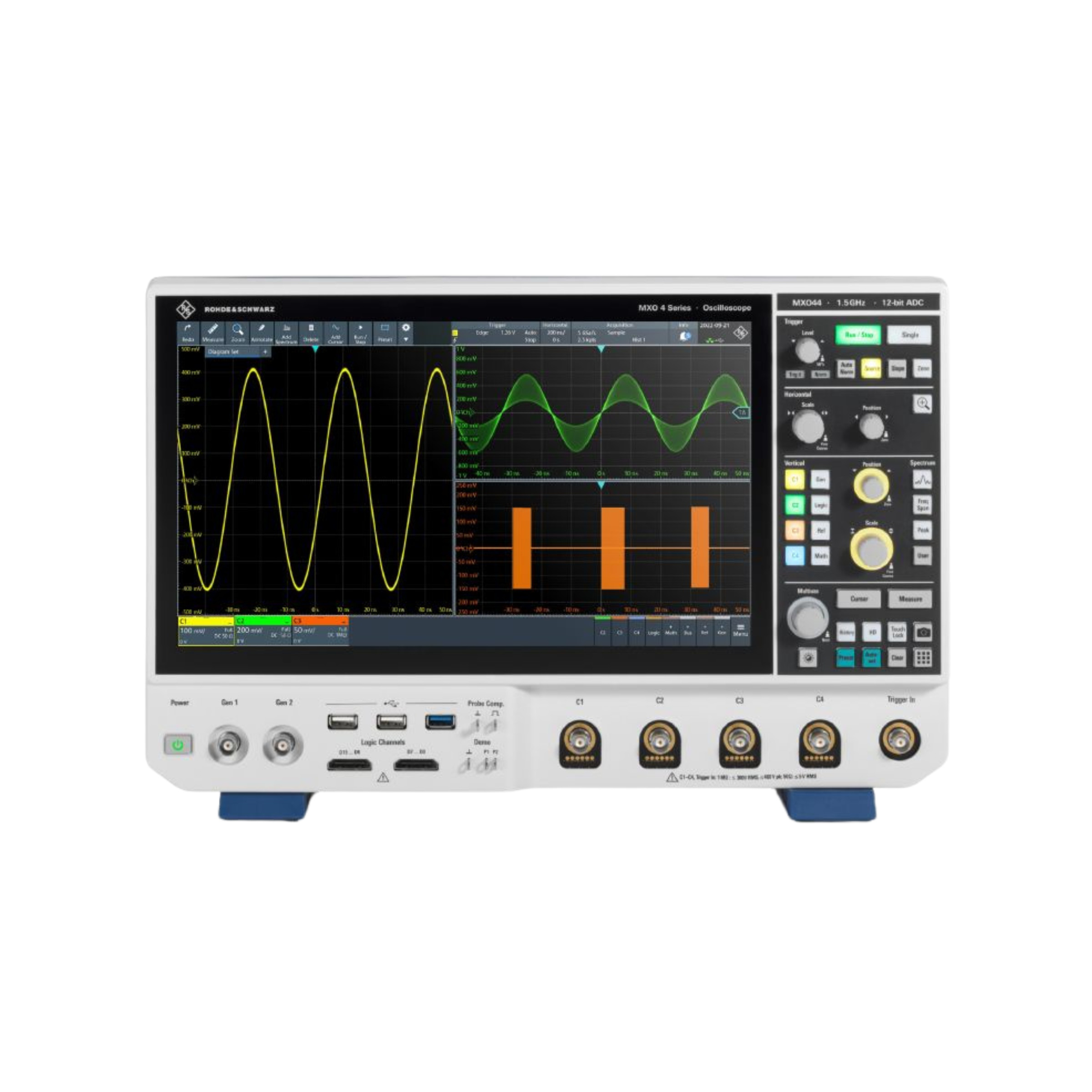

R&S MXO 4 Oscilloscope
Class: Mid-Range (MXO Generation)
- 200 MHz to 1.5 GHz, depending on the selected bandwidth option
- Four analog input channels
- Up to 5 Gsample/s real-time sampling rate
- 400 Mpoints standard memory, expandable to 800 Mpoints
- 12-bit vertical resolution, extendable to 18 bit in high-definition mode
Product Details
R&S MXO 4 Oscilloscope is a versatile platform for embedded design, power electronics and complex system debugging. Its responsive interface, advanced triggering, spectrum analysis, serial bus decoding and automated measurement tools help engineers uncover signal anomalies, correlate time and frequency behaviour, and accelerate development, verification and troubleshooting workflows efficiently.
Specification
| Input Channels | R&S® MXO 4 | 4 channels |
| Analog Bandwidth | Base model | ≥ 200 MHz |
| With R&S® MXO4-B243 option | ≥ 350 MHz | |
| With R&S® MXO4-B245 option | ≥ 500 MHz | |
| With R&S® MXO4-B2410 option | ≥ 1 GHz | |
| With R&S® MXO4-B2415 option | ≥ 1.5 GHz | |
| Rise / Fall Time | Base model | < 1.75 ns |
| 350 MHz / 500 MHz / 1 GHz / 1.5 GHz bandwidth | < 1 ns / < 700 ps / < 350 ps / < 234 ps | |
| Memory Depth | Standard | 400 Mpoints |
| With R&S® MXO4-B108 option | 800 Mpoints | |
| Mixed Signal Option | R&S® MXO4-B1 | 16 digital channels with two logic probes |
| Waveform Generator Option | R&S® MXO4-B6 | 2 analog channels 16 bit, 625 Msample/s Sine up to 100 MHz |
| Serial Bus Options | R&S® MXO4-K510 / K520 / K530 / K550 / K560 / K570 | I²C, SPI, UART, RS-232, CAN, LIN, ARINC 429, MIL-STD-1553, MIPI, Automotive Ethernet and USB protocols |
| Maximum Realtime Sampling Rate | 5 Gsample/s on 2 channels 2.5 Gsample/s on 4 channels |
|
| Vertical Resolution | 12 bit, up to 18 bit with high definition mode | |
| Input Impedance | 50 Ω ±1.5% 1 MΩ ±1% || 12 pF |
|
| Input Coupling | 50 Ω: DC 1 MΩ: DC, AC |
|
| Input Sensitivity | 0.5 mV/div to 1 V/div at 50 Ω 0.5 mV/div to 10 V/div at 1 MΩ |
|
| Maximum Input Voltage | 5 V RMS, 30 Vp at 50 Ω 300 V RMS, 400 Vp at 1 MΩ |
|
| Timebase Range | 200 ps/div to 10 000 s/div | |
| Waveform Acquisition Rate | > 4 500 000 waveforms/s | |
| Fast Segmented Mode | > 4 600 000 waveforms/s < 21 ns blind time |
|
| Trigger Performance | 0.0001 div trigger sensitivity < 1 ps RMS trigger jitter |
|
| Trigger Types | Edge, glitch, width, runt, window, timeout, interval, pattern, video and serial bus | |
| Digital Voltmeter | Up to 6 digits, up to 20 MHz bandwidth | |
| Display | 13.3" Full HD capacitive touchscreen, 1920 × 1080 | |
| Interfaces | USB, LAN, HDMI, trigger out, reference input and reference output | |
| Operating Temperature | 0°C to +50°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz and 400 Hz | |
| Power Consumption | Max. 210 W | |
| Dimensions (W×H×D) | 414 × 279 × 162 mm | |
| Weight | 6.0 kg without options | |
