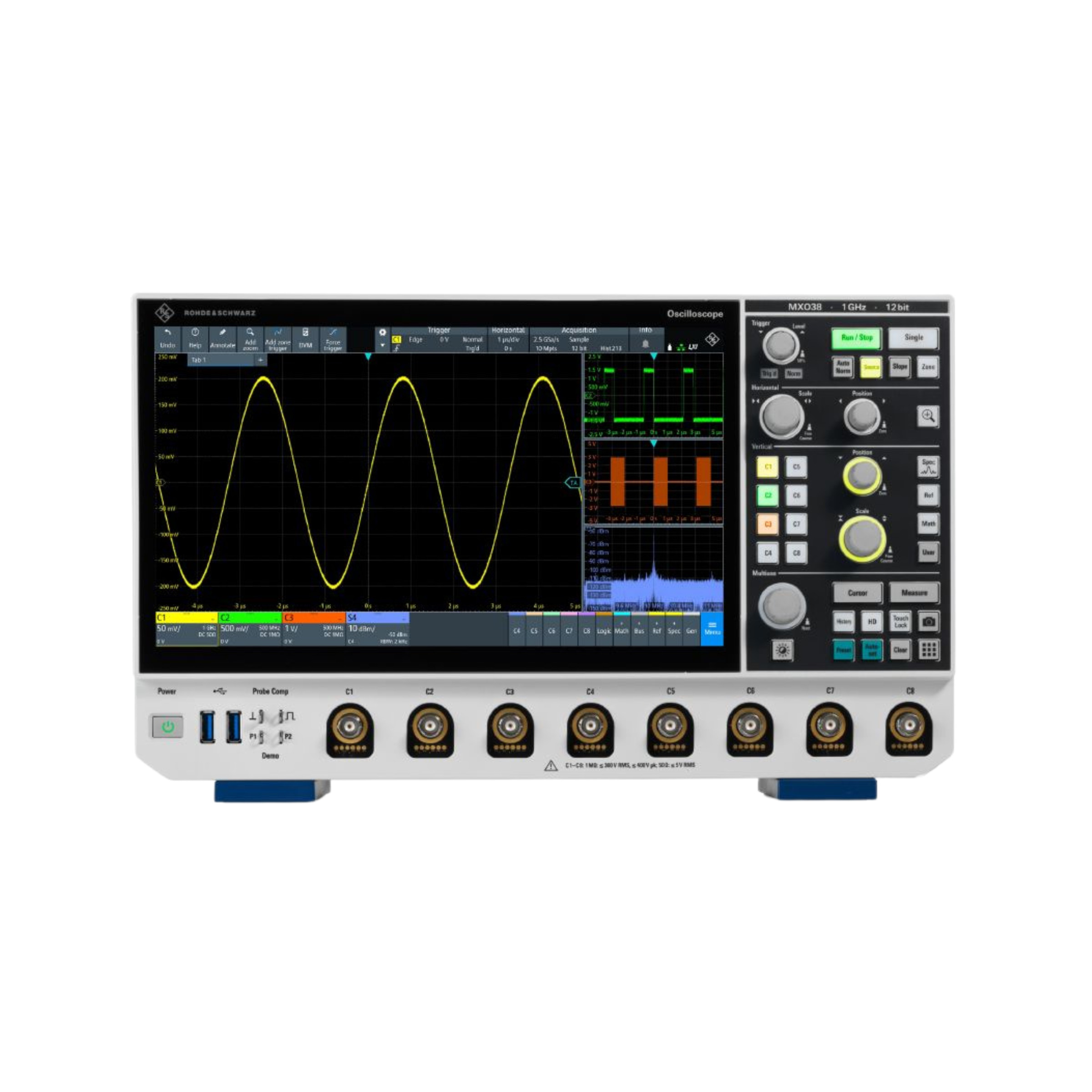

R&S MXO 3 Oscilloscope
Class: Entry-Level (MXO Generation)
- 100 MHz to 1 GHz, depending on the selected bandwidth option
- Four or eight analog input channels
- Up to 5 Gsample/s real-time sampling rate
- 125 Mpoints standard memory, expandable to 500 Mpoints
- 12-bit vertical resolution, extendable to 18 bit in high-definition mode
Product Details
R&S MXO 3 Series Oscilloscope is designed for embedded-system debugging, power electronics, serial bus analysis and complex multichannel testing. Its advanced triggering, spectrum analysis, protocol decoding, automated measurements and optional signal-generation functions help engineers identify signal anomalies, investigate system behaviour and streamline development and verification workflows.
Specification
| Input Channels | R&S® MXO34 | 4 channels |
| R&S® MXO38 | 8 channels | |
| Analog Bandwidth | Base model | ≥ 100 MHz |
| R&S® MXO34 bandwidth options | ≥ 200 MHz, ≥ 350 MHz, ≥ 500 MHz or ≥ 1 GHz | |
| R&S® MXO38 bandwidth options | ≥ 200 MHz, ≥ 350 MHz, ≥ 500 MHz or ≥ 1 GHz | |
| Rise / Fall Time | Base model | < 3.5 ns |
| 200 MHz / 350 MHz / 500 MHz / 1 GHz bandwidth | < 1.75 ns / < 1 ns / < 700 ps / < 350 ps | |
| Maximum Realtime Sampling Rate | R&S® MXO34 | 5 Gsample/s on 2 channels 2.5 Gsample/s on 4 channels |
| R&S® MXO38 | 5 Gsample/s on 4 channels 2.5 Gsample/s on 8 channels |
|
| Memory Depth | Standard | 125 Mpoints |
| With memory upgrade option | 500 Mpoints | |
| Mixed Signal Option | R&S® MXO3-B1 | 16 digital channels with two logic probes |
| Waveform Generator Option | R&S® MXO3-B6 | 14 bit, 312.5 Msample/s Sine up to 50 MHz |
| Serial Bus Options | R&S® MXO3-K510 / K520 / K530 / K550 / K560 / K570 | I²C, SPI, UART, RS-232, CAN, LIN, ARINC 429, MIL-STD-1553, MIPI, Automotive Ethernet and USB protocols |
| Vertical Resolution | 12 bit, up to 18 bit with high definition mode | |
| Input Impedance | 50 Ω ±1.5% 1 MΩ ±1% || 12 pF |
|
| Input Coupling | 50 Ω: DC 1 MΩ: DC, AC |
|
| Input Sensitivity | 1 mV/div to 1 V/div at 50 Ω 1 mV/div to 10 V/div at 1 MΩ |
|
| Maximum Input Voltage | 5 V RMS, 30 Vp at 50 Ω 300 V RMS, 400 Vp at 1 MΩ |
|
| Timebase Range | 200 ps/div to 10 000 s/div | |
| Waveform Acquisition Rate | > 4 500 000 waveforms/s | |
| Fast Segmented Mode | > 4 600 000 waveforms/s < 21 ns blind time |
|
| Trigger Performance | 0.0001 div trigger sensitivity < 1 ps RMS trigger jitter |
|
| Trigger Types | Edge, glitch, width, runt, window, timeout, interval, pattern, video and serial bus | |
| Digital Voltmeter | DC, DC RMS and AC RMS, up to 6 digits | |
| Display | 11.6" Full HD capacitive touchscreen, 1920 × 1080 | |
| Interfaces | USB, LAN, HDMI, trigger input, trigger output and waveform generator output | |
| Operating Temperature | 0°C to +45°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz and 400 Hz | |
| Power Consumption | Max. 280 W | |
| Dimensions (W×H×D) | 375 × 233 × 163 mm | |
| Weight | 4.0 kg without options | |
