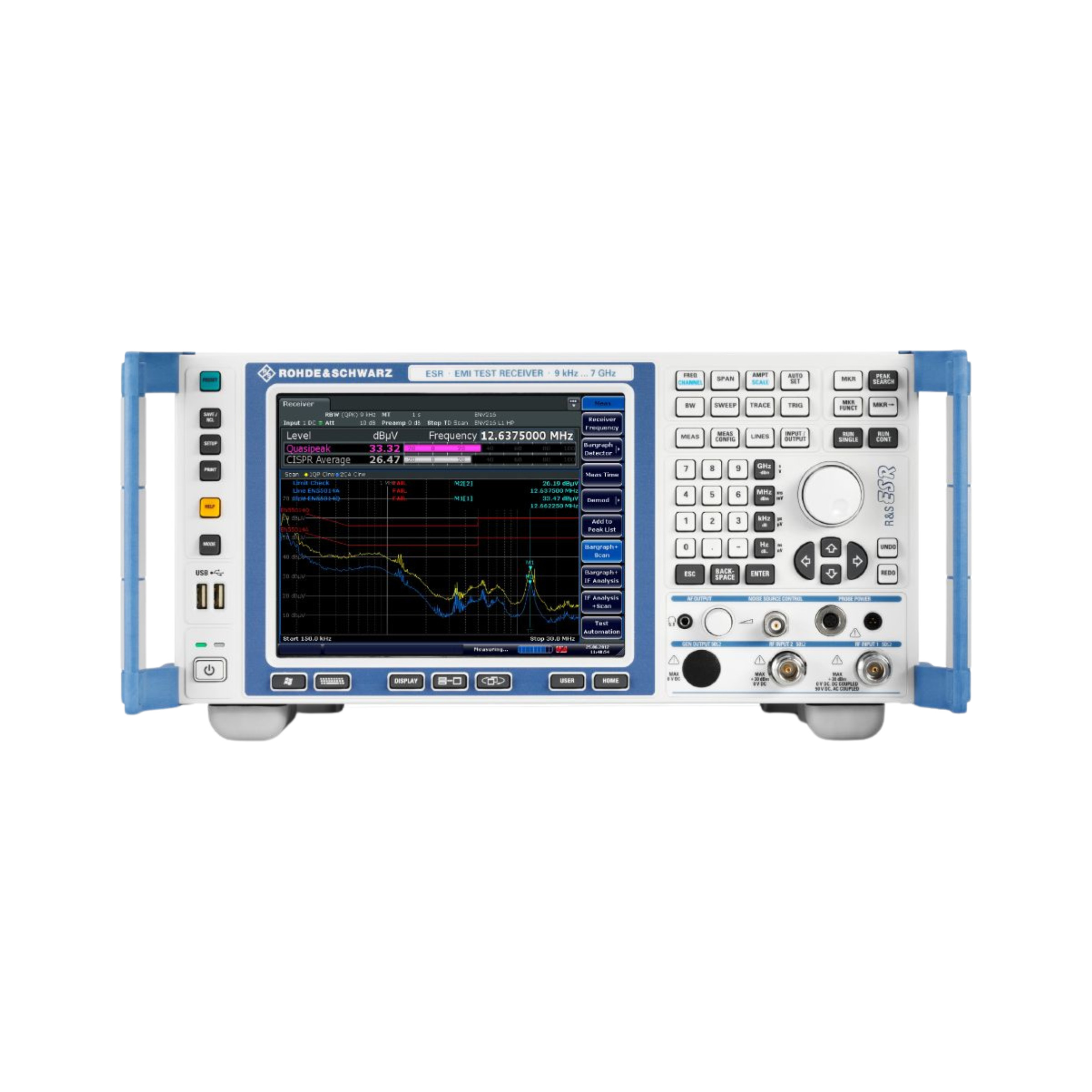

R&S ESR EMI Test Receiver
Class: Mid-Range / Compliance
- Frequency ranges from 10 Hz to 3, 7 or 26.5 GHz
- Up to 4 million trace points for receiver scans
- 10 Hz to 10 MHz resolution bandwidth, with wider bandwidths in zero span
- Optional FFT-based time domain scanning and real-time spectrum analysis
Product Details
R&S ESR EMI Test Receiver is a high-performance platform for compliance testing, product certification and detailed interference analysis. It combines EMI receiver, spectrum analyzer and optional real-time analysis capabilities, enabling efficient conducted and radiated emissions measurements across commercial, automotive, aerospace and defense applications.
Specification
| Frequency Range | R&S® ESR3 | Input 1, AC coupled: 10 MHz to 3.6 GHz Input 1, DC coupled: 9 kHz to 3.6 GHz Input 2, DC coupled: 9 kHz to 1 GHz |
| R&S® ESR7 | Input 1, AC coupled: 10 MHz to 7 GHz Input 1, DC coupled: 9 kHz to 7 GHz Input 2, DC coupled: 9 kHz to 1 GHz |
|
| R&S® ESR26 | Input 1, AC coupled: 10 MHz to 26.5 GHz Input 1, DC coupled: 9 kHz to 26.5 GHz Input 2, DC coupled: 9 kHz to 1 GHz |
|
| With R&S® ESR-B29 option | DC coupled: 10 Hz to max. frequency | |
| Frequency Resolution | Receiver mode | 0.1 Hz |
| Analyzer mode | 0.01 Hz | |
| Number of Sweep / Trace Points | Spectrum analyzer | 101 to 32 001 |
| EMI measurement | 101 to 200 001 | |
| RF Input Connector | R&S® ESR3 / ESR7 | RF input 1: N female RF input 2: N female |
| R&S® ESR26 | RF input 1: APC 3.5 mm / N female test port adapter RF input 2: N female |
|
| Power Consumption | R&S® ESR3 / ESR7 | 150 W, max. 250 W with all options |
| R&S® ESR26 | 175 W, max. 250 W with all options | |
| Weight | R&S® ESR3 / ESR7 | 12.8 kg without options |
| R&S® ESR26 | 14.6 kg without options | |
| Operating Modes | EMI test receiver Spectrum analyzer Real-time spectrum analyzer with R&S® ESR-K55 option |
|
| Receiver Scan | Up to 10 subranges Normal scan and time domain scan |
|
| Number of Trace Points | Up to 4 000 000 | |
| Preselection Filters | 16 filters | |
| Preamplifier | Switchable 20 dB nominal gain from 1 kHz to 7 GHz 30 dB nominal gain from 7 GHz to 26.5 GHz |
|
| Resolution Bandwidth | 10 Hz to 10 MHz in 1 / 2 / 3 / 5 sequence 20 MHz, 28 MHz and 40 MHz additionally in zero span |
|
| EMI Bandwidths | Standard: 200 Hz, 9 kHz, 120 kHz, 1 MHz With R&S® ESR-B29 option: 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz additionally |
|
| Video Bandwidth | 1 Hz to 10 MHz in 1 / 2 / 3 / 5 sequence 20 MHz, 28 MHz and 40 MHz additionally |
|
| Detectors | Max. peak, min. peak, RMS, average, quasi-peak, CISPR average and RMS average | |
| Maximum Input Level | AC coupled: 50 V DC coupled: 0 V CW RF power: up to 30 dBm with RF attenuation ≥ 10 dB |
|
| RF Input Impedance | 50 Ω | |
| Input Attenuator | RF input 1: 0 dB to 75 dB, in 5 dB steps RF input 2: 10 dB to 75 dB, in 5 dB steps |
|
| Remote Control | LAN, USB and IEC/IEEE bus control interface | |
| Display | 8.4" LC TFT color display, 800 × 600 pixel | |
| Data Storage | Internal SSD ≥ 120 GB; external USB 2.0 memory support | |
| Operating Temperature | +5°C to +40°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 400 Hz | |
| Dimensions (W×H×D) | 412 × 197 × 517 mm | |
