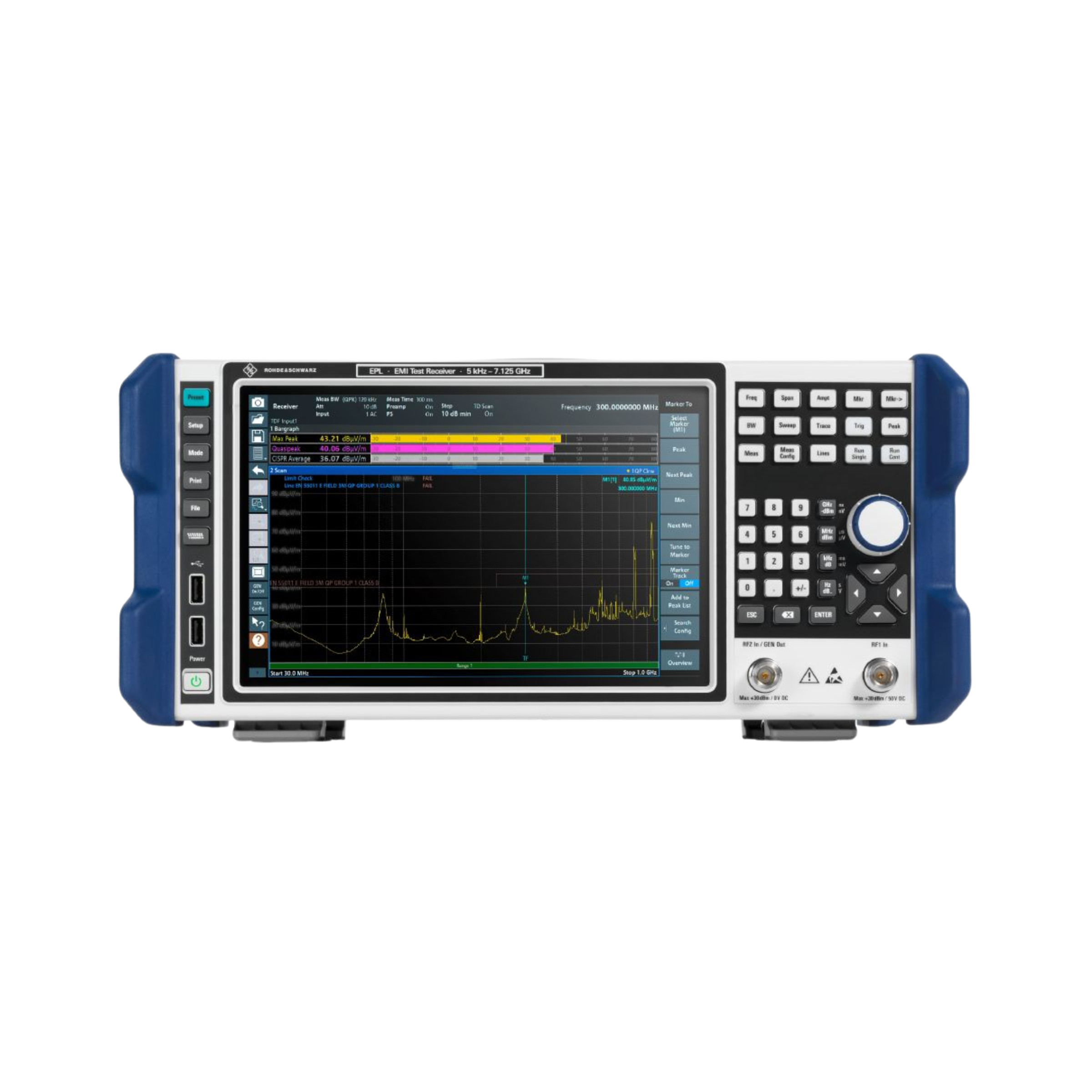

R&S EPL EMI Test Receiver
Class: Entry-Level / Modular
- 5 kHz to 7.125 GHz frequency coverage
- Supports both precompliance and compliance testing
- Flexible upgrade options to add capabilities when required
- Fast time domain scanning for efficient measurements
- Battery-powered operation for use without a mains supply
Product Details
R&S EPL EMI Test Receiver is designed for efficient conducted and radiated emissions testing during product development, certification and troubleshooting. Its intuitive operation, automated measurement workflows and expandable analysis functions support reliable EMC testing in laboratories, production environments and field locations, from early pre-compliance checks through formal compliance testing.
Specification
| Frequency Range | R&S® EPL1000 | 5 kHz to 30 MHz |
| R&S® EPL1001 | Input 1 and 2: 5 kHz to 1 GHz | |
| R&S® EPL1007 | Input 1: 5 kHz to 7.125 GHz Input 2: 5 kHz to 1 GHz |
|
| Preselection Filters | R&S® EPL1000 | 2 |
| R&S® EPL1001 / EPL1007 | 9 with R&S® EPL1-B2 option | |
| Maximum DC Input Voltage | R&S® EPL1000 | Input: 0 V |
| R&S® EPL1001 / EPL1007 | Input 1: 50 V Input 2: 0 V |
|
| Dimensions (W×H×D) | R&S® EPL1000 | 408 × 189 × 235 mm |
| R&S® EPL1001 / EPL1007 | 408 × 189 × 305 mm | |
| Weight | R&S® EPL1000 | 6.9 kg without options 8.6 kg with internal battery |
| R&S® EPL1001 / EPL1007 | 8.4 kg without options 10.3 kg with internal battery |
|
| Operating Modes | Receiver mode and analyzer mode | |
| Frequency Resolution | 0.01 Hz | |
| EMI Bandwidths | 10 Hz, 100 Hz, 200 Hz, 1 kHz, 9 kHz, 10 kHz, 100 kHz, 120 kHz and 1 MHz | |
| Sweep and FFT Filters | Sweep filters: 100 kHz to 10 MHz FFT filters: 1 Hz to 50 kHz |
|
| Signal Analysis Bandwidth | 12.8 MHz standard | |
| Receiver Scan | Up to 10 subranges Stepped scan and time domain scan |
|
| Number of Trace Points | 10,000,000 | |
| Detectors | Max. peak, min. peak, RMS, average, quasi-peak, CISPR-average and RMS-average | |
| CISPR Detectors | Quasi-peak, RMS-average and CISPR-average | |
| Preamplifier | Switchable, 20 dB nominal gain | |
| RF Input | 50 Ω, N female | |
| Input Attenuator | 0 dB to 55 dB, in 1 dB steps | |
| Maximum RF Input Power | 20 dBm with 0 dB RF attenuation 30 dBm with RF attenuation ≥ 10 dB |
|
| Trigger Source | Free run, video, external, IF power and I/Q power | |
| I/Q Data | Max. 25 Msample I and Q 16-bit word length |
|
| Remote Control | LAN, USB and optional GPIB | |
| Display | 10.1" WXGA color display, 1280 × 800 | |
| Data Storage | 128 GB internal SSD; external USB memory support | |
| Operating Temperature | 0°C to +50°C | |
| Power Supply | 100 V to 240 V, 50 Hz to 60 Hz | |
| Recommended Calibration Interval | 1 year | |
