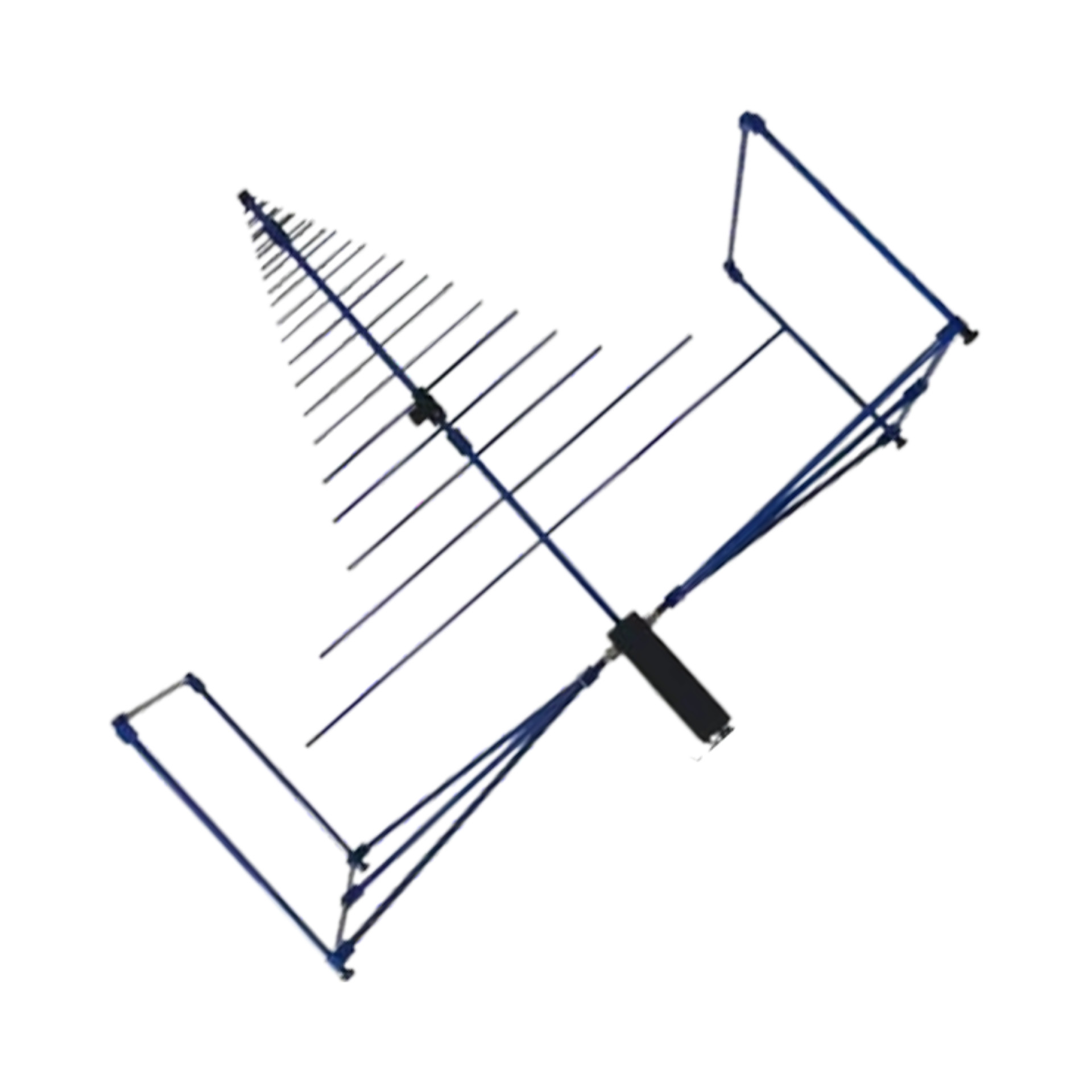

30MHz to 6GHz Broadband Log Periodic Antenna
Model No: LO-30M06GA1-NF
- Frequency Range: 30 MHz – 7 GHz
- Antenna Type: Broadband Log Periodic
- V.S.W.R.: ≤ 2.5 : 1
- Dimensions (LxWxH): 1255 x 1147 x 609 mm
Product Details
The LO-30M06GA1-NF is a high-performance broadband log periodic antenna designed to operate across an extensive frequency range from 30 MHz to 7 GHz. With its directional radiation pattern and excellent VSWR characteristics, it is ideal for EMC testing, signal monitoring, spectrum analysis, and various wireless communication testing applications. Built with 6061 aluminum alloy and featuring DC short lightning protection.
Specification
Additional information
| Frequency Range | 30 MHz – 7GHz |
|---|---|
| Gain | 5 – 11 dBi |
| Max Power Handling | 50 W (CW Continuous Wave) |
| V.S.W.R | ≤ 2.5 : 1 |
| Beamwidth (H/V) | 65° / 120° |
| Dimension (L×W×H) | 1255 × 1147 × 609 mm |
| Weight | 7kg |
| Connector Type | N-Female |
| Body Material | Aerospace-Grade 6061-T6 Structural Aluminum |
Description
Key Features
1. Ultra-Wide Frequency Coverage
30 MHz to 7 GHz broadband operation, ideal for multi-band testing and monitoring
2. DC Short Lightning Protection
Built-in protection for enhanced durability in outdoor and harsh environments
3. Low VSWR Performance
Consistently low VSWR across entire frequency range for optimal signal transmission
4. Durable Construction
6061 Aluminum alloy with stainless steel N-female connector for long-term reliability
5. Dual Polarization
Supports both vertical and horizontal polarization for flexible deployment
6. Certified Quality
Compliant with RoHS, CE, FCC, and ISO 9001/14001 standards
