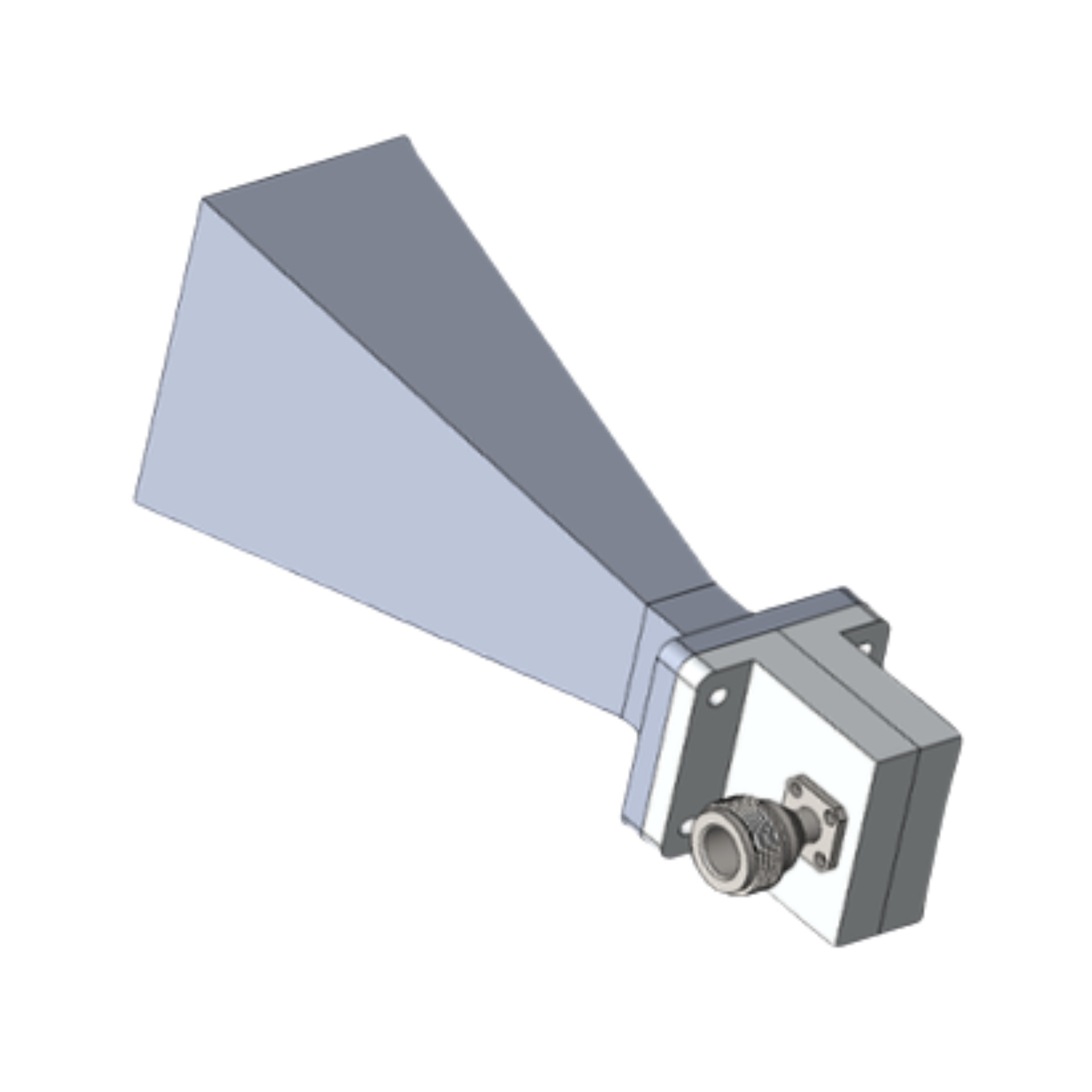

WR75 10GHz to 15GHz 10dbi Gain, UBR Flange Standard Gain Horn Antenna
Model No: HS-075-UBR-10-NF
- Frequency Range: 10 GHz – 15 GHz
- Antenna Type: Standard Gain Horn (WR-75 / UBR)
- VSWR: 1.25 : 1 (Typical)
- Flange: WR-75 / UBR 120 (M3922/70-004/005).
- Dimensions (LxWxH): 86 x 46.5 x 39 mm
Product Details
The HS-075-UBR-10-NF is a high-precision standard gain horn antenna engineered for broadband microwave measurements and laboratory calibration. Operating across the 10 GHz to 15 GHz range, it features a standardized WR-75 waveguide interface with UBR flange compatibility. Delivering a stable 10 dBi gain and uniform radiation patterns, it is an essential tool for signal integrity verification, antenna gain measurements, and professional EMI/EMC testing where industrial-grade accuracy and structural reliability are paramount.
Specification
Additional information
| Frequency Range | 10 GHz – 15 GHz |
|---|---|
| Gain | 10 dBi |
| Max Power Handling | 300W |
| V.S.W.R | 1.25 : 1 |
| Beamwidth (H/V) | 54° / 54° (H/E-Plane) |
| Dimension (L×W×H) | 86 x 46.5 x 39 mm |
| Weight | 120 g |
| Connector Type | N-Female |
| Body Material | Industrial Grade Aluminum Alloy |
Description
Key Features
1. X/Ku-Band Precision Integrity
Designed for 10-15 GHz with stable electrical performance and minimal loss for critical signal integrity measurements.
2. Industrial SUS Interface
Precision stainless steel N-Female connector for reliable mating cycles with professional RF test equipment.
3. Robust Structural Design
Compact aluminum alloy construction ensures mechanical rigidity and thermal stability during continuous duty cycles.
4. Custom Engineering Flexibility
Available for waterproof structures, PTZ control integration, tripod mounting, and specialized finishes.
