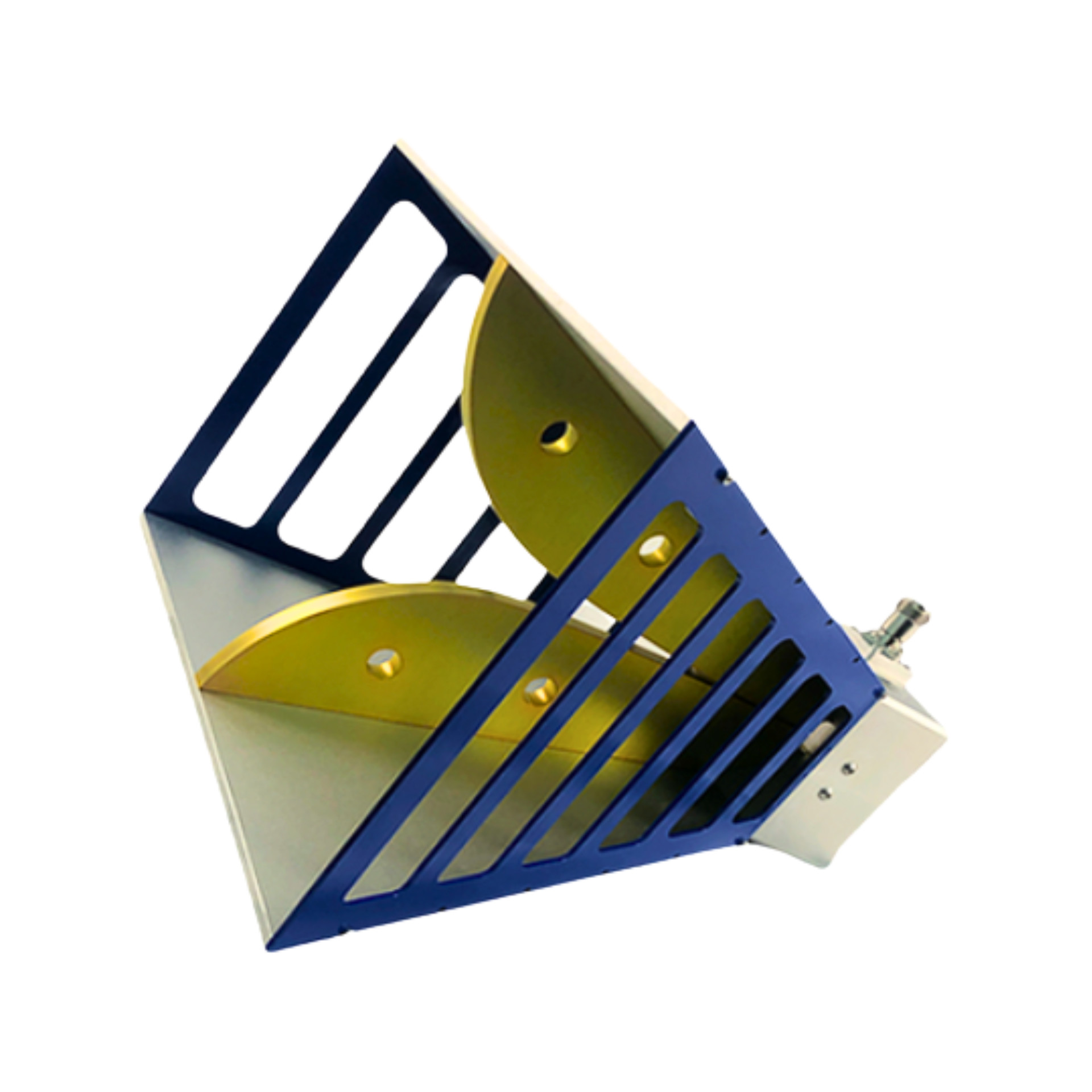

700MHz to 18GHz Double Ridged Broadband Horn Antenna
Model No: HA-07M18G-NF
- Frequency Range: 700 MHz – 18 GHz
- Antenna Type: Double-Ridged Broadband Horn
- Gain: 4 – 18 dBi
- Dimensions (LxWxH): 290 x 187 x 242 mm
Product Details
The HA-07M18G-NF is a high-precision double-ridged horn antenna engineered to meet the demands of modern multi-octave RF testing. Spanning seamless coverage from 700 MHz to 18 GHz, it provides exceptional signal integrity for critical EMC/EMI certification, spectrum monitoring, and antenna calibration. Constructed from aerospace-grade 6061 aluminum alloy with a rugged N-Female stainless steel interface, this Taiwan-designed instrument delivers consistent directional gain and high-power handling (500 W peak) with integrated DC Short lightning protection, in a durable package.
Specification
Additional information
| Frequency Range | 700 MHz – 18 GHz |
|---|---|
| Gain | 4 – 18 dBi |
| Max Power Handling | 500W (Peak) |
| Beamwidth (H/V) | 38° / 47° |
| Dimension (L×W×H) | 290 x 187 x 242 mm |
| Weight | 8.1 kg |
| Body Material | Aerospace-Grade 6061-T6 Structural Aluminum |
Description
Key Features
1. High Power & Protection
Handles 500W peak power with integrated DC Short lightning protection to safeguard sensitive measurement equipment.
2. Stable Wideband Performance
Low VSWR and uniform gain response across the entire 700MHz-18GHz spectrum.
3. Aerospace-Grade Durability
Premium 6061 aluminum alloy for mechanical stability and corrosion resistance in lab environments.
4. Flexible Deployment
L-type mounting brackets and optional LM-301 non-metallic tripod compatibility for complex test setups.
