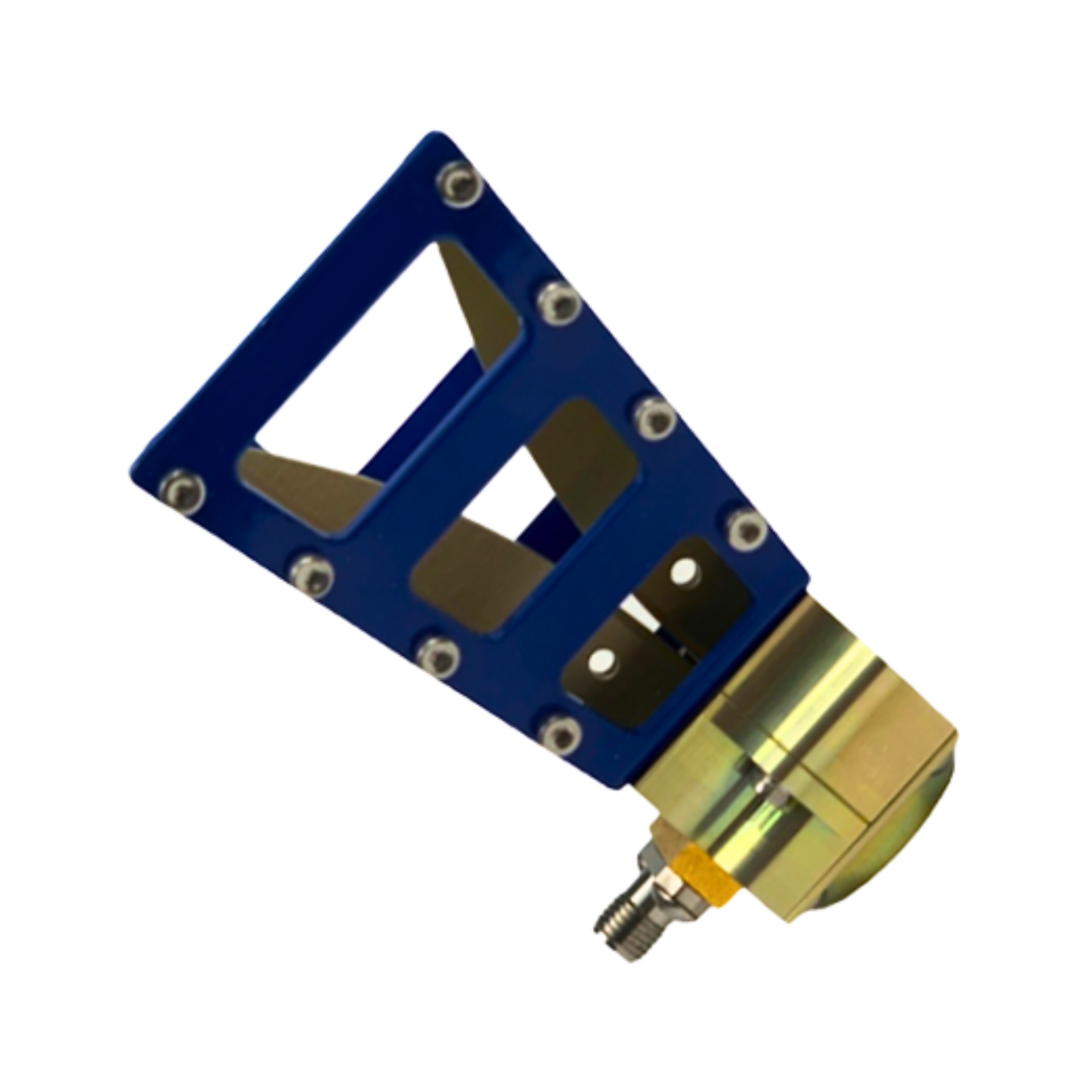

5 GHz to 40 GHz Double Ridged Broadband Waveguide Horn Antenna, 2.92-Female Connector
Model No: HA-0540GB-KF
- Frequency Range: 5 GHz – 40 GHz
- Antenna Type: Double-Ridged Broadband Horn (Directional)
- V.S.W.R.: 2.5 : 1
- Dimensions (LxWxH): 104 x 55 x 43 mm
Product Details
The HA-0540GB-KF (HA-05M40G-292F) is a high-precision double-ridged horn antenna professionally engineered for ultra-broadband and millimeter-wave frequency applications. Operating within the expansive 5 GHz to 40 GHz spectrum, it provides a stable and consistent gain ranging from 1 dBi to 15 dBi. Built with aerospace-grade 6061 aluminum alloy and a precision 2.92mm Female interface, it is an essential instrument for signal integrity verification, antenna gain calibration, and professional EMI/EMC testing environments where frequency agility and mechanical accuracy are paramount.
Specification
Additional information
| Frequency Range | 5 GHz – 40 GHz |
|---|---|
| Gain | 1 – 15 dBi |
| Max Power Handling | 25W |
| V.S.W.R | 2.5 : 1 |
| Beamwidth (H/V) | 38° / 44° |
| Dimension (L×W×H) | 104 x 55 x 43 mm |
| Weight | 93.1 g |
| Connector Type | Stainless Steel 2.92mm-Female |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
Description
Key Features
1. Millimeter-Wave Precision
Engineered for high-frequency acquisition up to 40 GHz, ensuring stable electrical performance and minimal skin-effect losses for mission-critical RF setups.
2. Broadband EMI Testing
Ideally suited for emission and immunity testing across a massive 35 GHz bandwidth, providing reliable performance for signal integrity acquisition.
3. Integrated Surge Protection
Built-in DC short lightning protection safeguards high-precision measurement instrumentation from transient electrical surges during laboratory range use.
4. Consolidated Performance
Includes a performance-verified database and consistent uniform gain profile, ensuring repeatable and traceable results for professional mmWave compliance cycles.
