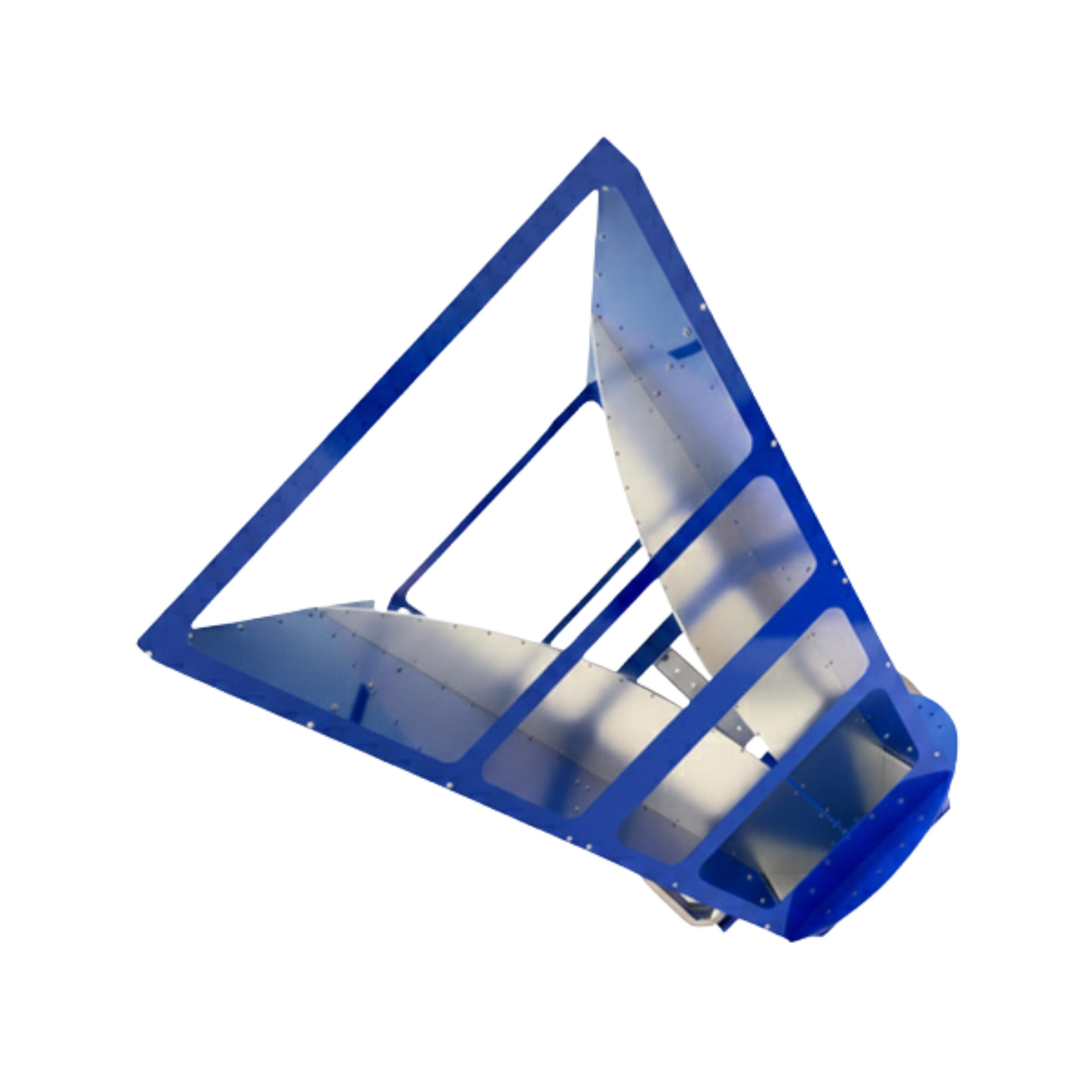

200MHz to 3GHz Double Ridged Broadband Waveguide Horn Antenna N-Female
Model No: HA-02M03G01-NF
- Frequency Range: 200 MHz – 3 GHz
- Antenna Type: Double-Ridged Broadband Horn (Directional)
- V.S.W.R.: < 2.0 : 1
- Dimensions (LxWxH): 986 x 960 x 720 mm
Product Details
The HA-02M03G01-NF is a high-performance Double-Ridged Broadband Horn Antenna engineered and manufactured by FT-RF for ultra-wideband RF applications and high-fidelity radiation screening. Operating across the continuous 200 MHz to 3 GHz range, it provides a stable gain profile from 3 dBi up to 12 dBi. Built with aerospace-grade 6061 aluminum alloy panels and precision-machined inner ridges, it ensures minimal impedance mismatch and low return loss with a maximum V.S.W.R of less than 2.0 : 1. Available with N-Female or heavy-duty 7/16-Female (7/16 DIN) interfaces, it safely manages continuous wave power up to 1000 W. An indispensable reference instrument for antenna gain calibration ranges, spectrum surveillance, laboratory signal integrity verification, and EMI/EMC compliance validation. (Upgrade version of HA-02M03G-NF.)
Specification
Additional information
| Frequency Range | 200 MHz – 3 GHz |
|---|---|
| Gain | 3 – 12 dBi |
| Max Power Handling | 600W CW (N-Type) / 1000W CW (7/16 DIN) |
| V.S.W.R | < 2.0 : 1 |
| Beamwidth (H/V) | 38° / 44° |
| Dimension (L×W×H) | 986 x 960 x 720 mm |
| Weight | 15 kg |
| Connector Type | 7/16-Female (High-Power DIN), N-Female |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
Description
Key Features
1. Broadband EMC Testing
Ideally suited for emission and immunity susceptibility testing with reliable performance for signal integrity acquisition in laboratory chambers.
2. High-Power Capability
Supports continuous wave input up to 1000W via the 7/16 DIN interface for high-intensity field strength generation and radar measurements.
3. Advanced Ridge Design
Optimized double-ridge internal waveguide structure minimizes impedance mismatch and ensures flat VSWR across the full spectrum.
4. Precision Taiwan Build
CNC machined from aerospace-grade 6061 aluminum with precision-aligned ridges for stable co-polarization in harsh environments.
