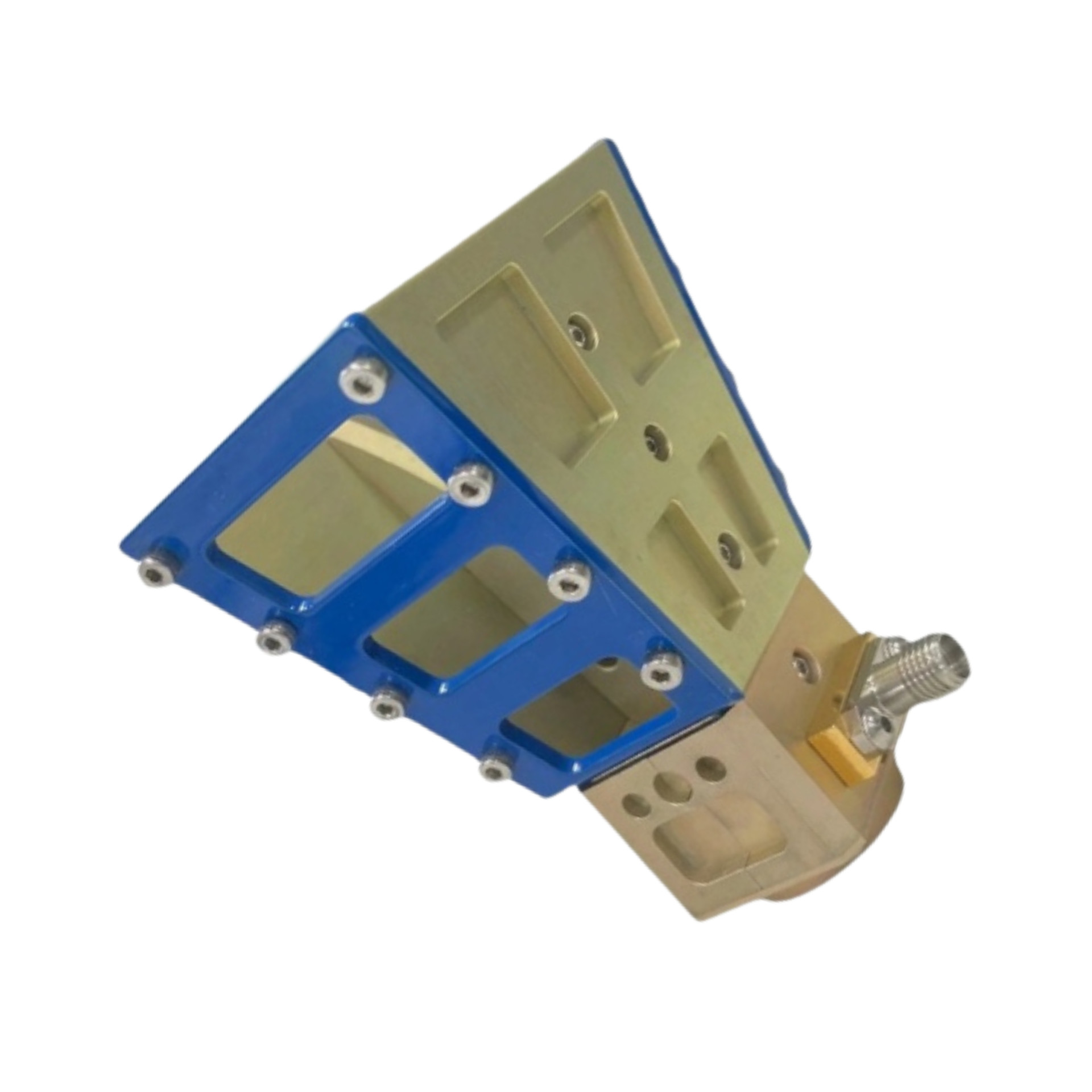

18GHz to 40GHz Double Ridged Broadband Waveguide Horn Antenna
Model No: HA-1840GA1-KF
- Frequency Range: 18 GHz – 40 GHz
- Antenna Type: Double-Ridged Broadband Horn (Directional)
- V.S.W.R.: 2.5 : 1
- Dimensions (LxWxH): 70 x 36 x 55 mm
Product Details
The HA-1840GA1-KF is a premium directional wideband radiator engineered and manufactured by FT-RF for millimeter-wave configurations and high-frequency validation systems. Operating seamlessly across the continuous 18.0 GHz to 40.0 GHz range (K and Ka bands), it delivers a consistent nominal gain of 10 dBi to 17 dBi with stable beam directivity. CNC-machined from aerospace-grade 6061 aluminum alloy with an integrated DC Short transient mitigation circuit, it safely manages up to 300 W peak / 150 W CW, protecting connected receivers and instrumentation from surge damage. Equipped with a durable stainless steel 2.92mm (K) Female interface, this compact ultra-lightweight horn minimizes insertion loss and maximizes co-polarization accuracy. A definitive reference for 5G research, automated EMC/EMI testing, anechoic chamber testing, and signal integrity compliance scanning.
Specification
Additional information
| Frequency Range | 18 GHz – 40 GHz |
|---|---|
| Gain | 10 – 17 dBi |
| Max Power Handling | 150W CW / 300W Peak |
| V.S.W.R | 2.5 : 1 |
| Beamwidth (H/V) | 28° / 24° |
| Dimension (L×W×H) | 70 x 36 x 55 mm |
| Weight | 80 g |
| Connector Type | 2.92mm K-Female |
| Body Material | Aerospace-Grade 6061 Aluminum Alloy |
Description
Key Features
1. Broadband EMC Coverage
Continuous K and Ka band coverage minimizes antenna swaps during comprehensive compliance testing.
2. High Power Efficiency
Optimized double-ridged core architecture handles substantial peak power for high-intensity laboratory setups.
3. Hardware Instrument Protection
Integrated DC Short lightning and static path protection safeguards connected measurement instrumentation and receivers.
4. Calibration Ready Core
Engineered for high-fidelity compliance certification with traceable calibration data sets for repeatable outcomes.
