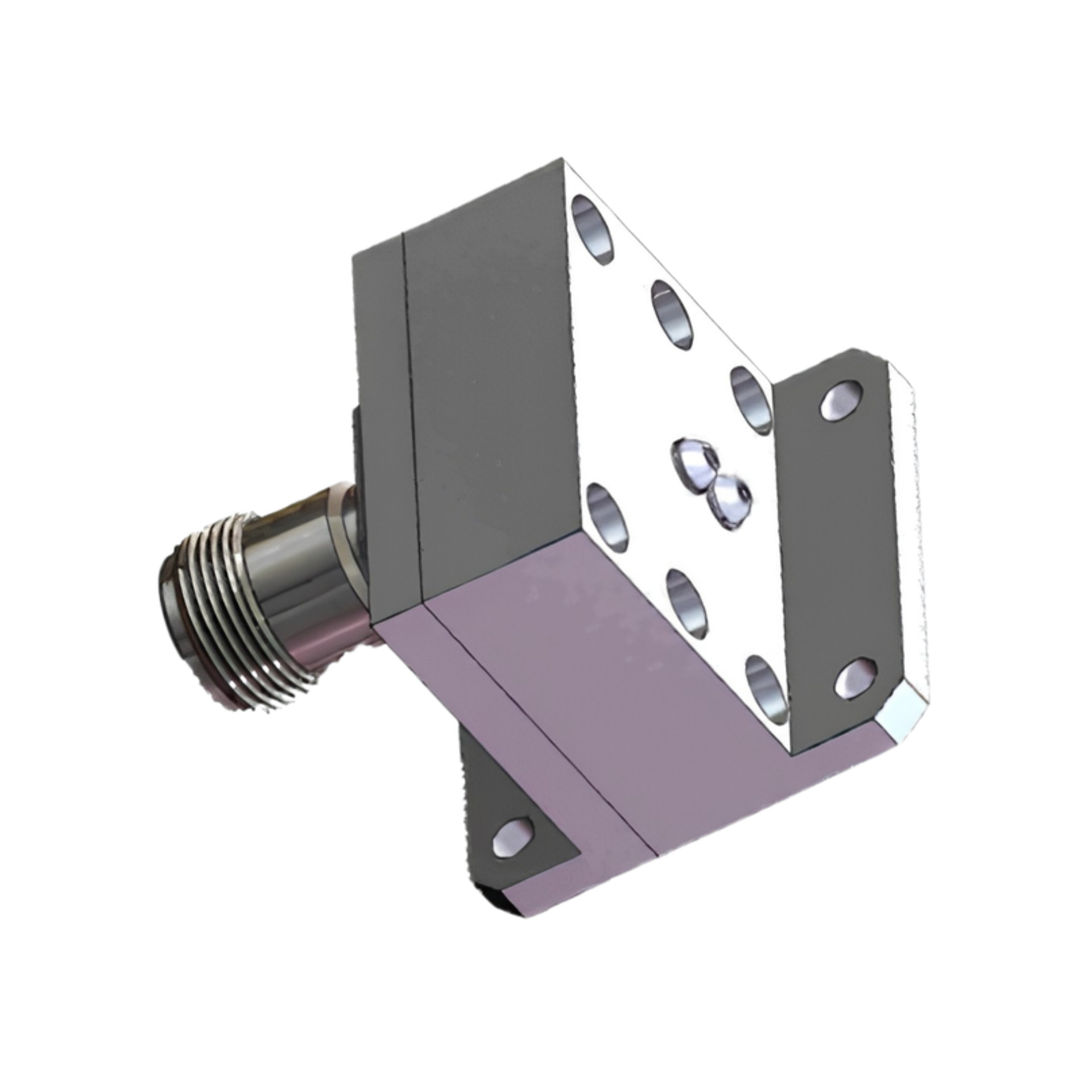

WR90 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, N-Female Connector, UBR Flange
Model No: WC-090-UBR-A2-NF
- Frequency Range: 8.2 GHz – 12.4 GHz
- Type: WR-90 Waveguide-to-Coaxial Adapter (UBR)
- V.S.W.R.: 1.3 : 1
- Dimensions (LxWxH): 53.1 x 41.4 x 35.8 mm
Product Details
The WC-090-UBR-A2-NF is a high-performance waveguide-to-coaxial adapter engineered for the WR-90 standard. Operating within the 8.2 GHz to 12.4 GHz X-Band, this precision component is essential for pairing with professional waveguide systems and standard gain horn antennas in EMI/EMC testing and laboratory measurement ranges. Featuring a robust N-Female connector and a standardized UG-39/U (UBR) flange, it ensures low-loss coupling and exceptional signal integrity. Precision-machined from high-grade aluminum in Taiwan.
Specification
Additional information
| Frequency Range | 8.2 GHz – 12.4 GHz |
|---|---|
| Max Power Handling | 300W |
| V.S.W.R | 1.3 : 1 |
| Dimension (L×W×H) | 53.1 x 41.4 x 35.8 mm |
| Weight | 90 g |
| Connector Type | N-Female |
| Body Material | High-Grade Aluminum Alloy |
Description
Key Features
1. X-Band Spectrum Integrity
Low-loss coupling across the full 8.2-12.4 GHz WR-90 band.
2. 300W High-Power Handling
Robust continuous-wave power capacity for demanding laboratory setups.
3. Precision Aluminum Architecture
Compact 90 g high-grade aluminum body for stable mechanical performance.
4. Standardized UBR Interface
UG-39/U flange ensures compatibility with standard WR-90 waveguide systems and horn antennas.
