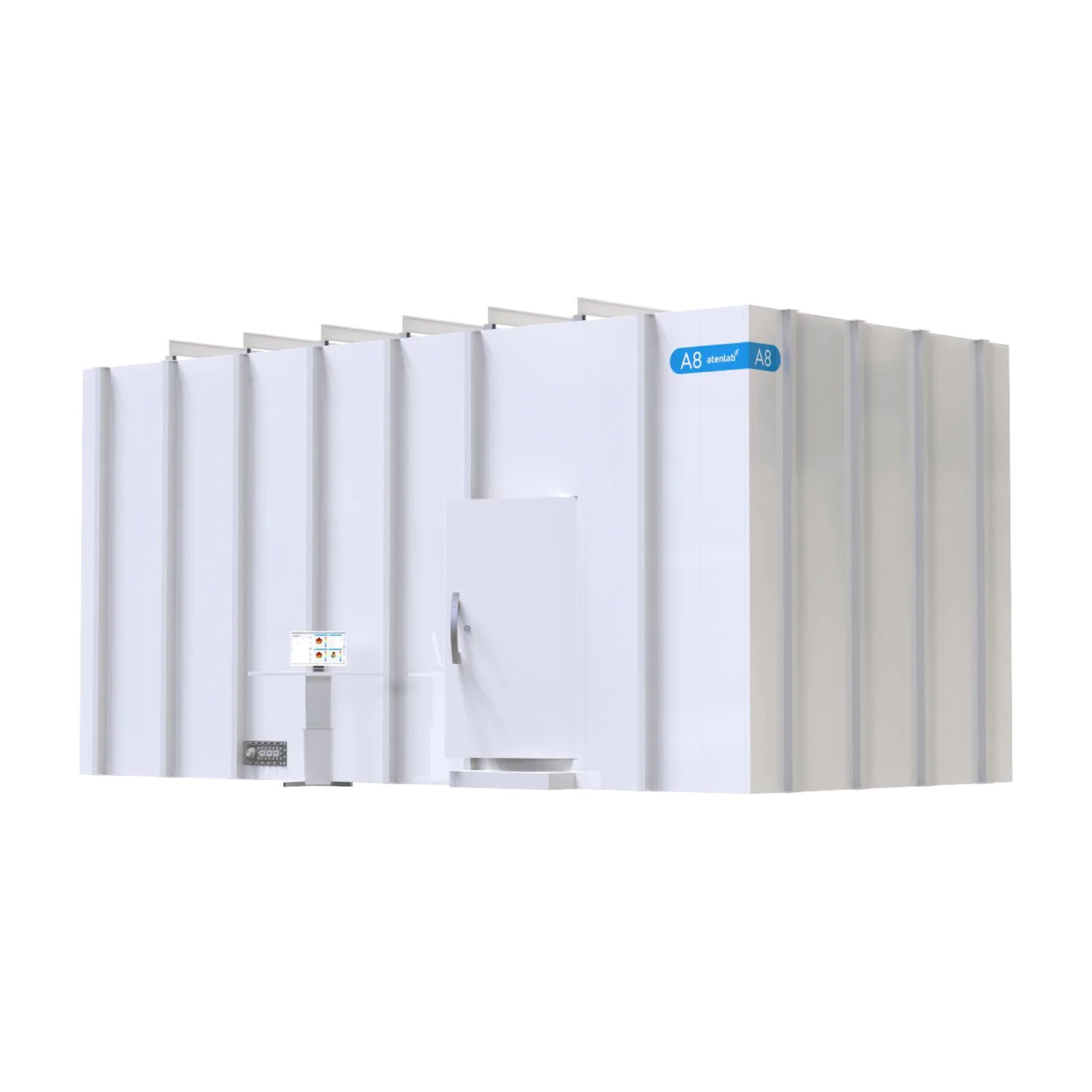

A8 Professional Type Single – Probe OTA Measurement System
Class: A Class (Single-Probe OTA)
- Professional OTA
- 0.45–6.0 GHz Operating frequency
- 19″ laptop DUT
- Quiet zone 60 cm; SD < 0.8
- CTIA certified
- Highest precision
Product Details
The A8 is Atenlab’s premium single-probe OTA measurement system optimized for the highest quiet zone performance and CTIA certification testing. With a 60 cm quiet zone (SD < 0.8), 5.0 m measurement distance, and a spacious 8.2×4.1×4.1 m chamber, it delivers unmatched real-world accuracy for device certification. Software and hardware are fully compliant with CTIA standards.
Specification
Additional information
| Operating Frequency | 0.45 – 6.0 GHz |
|---|---|
| Shielding Effectiveness | 0.03 – 18 GHz > 100 dB |
| Quiet Zone Size | 60 cm |
| Quiet Zone Characteristics | SD < 0.8 |
| Path Loss | 57 dB @ 3.8 GHz; 45 dB @ 6.0 GHz; 51 dB @ 8.0 GHz |
| Measurement Distance | 5.0 m |
| Absorber Type | EPP Absorber |
| System Stability | Passive Antenna Efficiency SD < 10%; TRP SD < 0.5 dB; TIS SD < 1 dB |
| Test Time | Antenna Efficiency 4 min; TRP 6 min / TIS 10 min per channel |
| Maximum Power Consumption | 5.0 kW |
| Input Power | 110 VAC / 220 VAC |

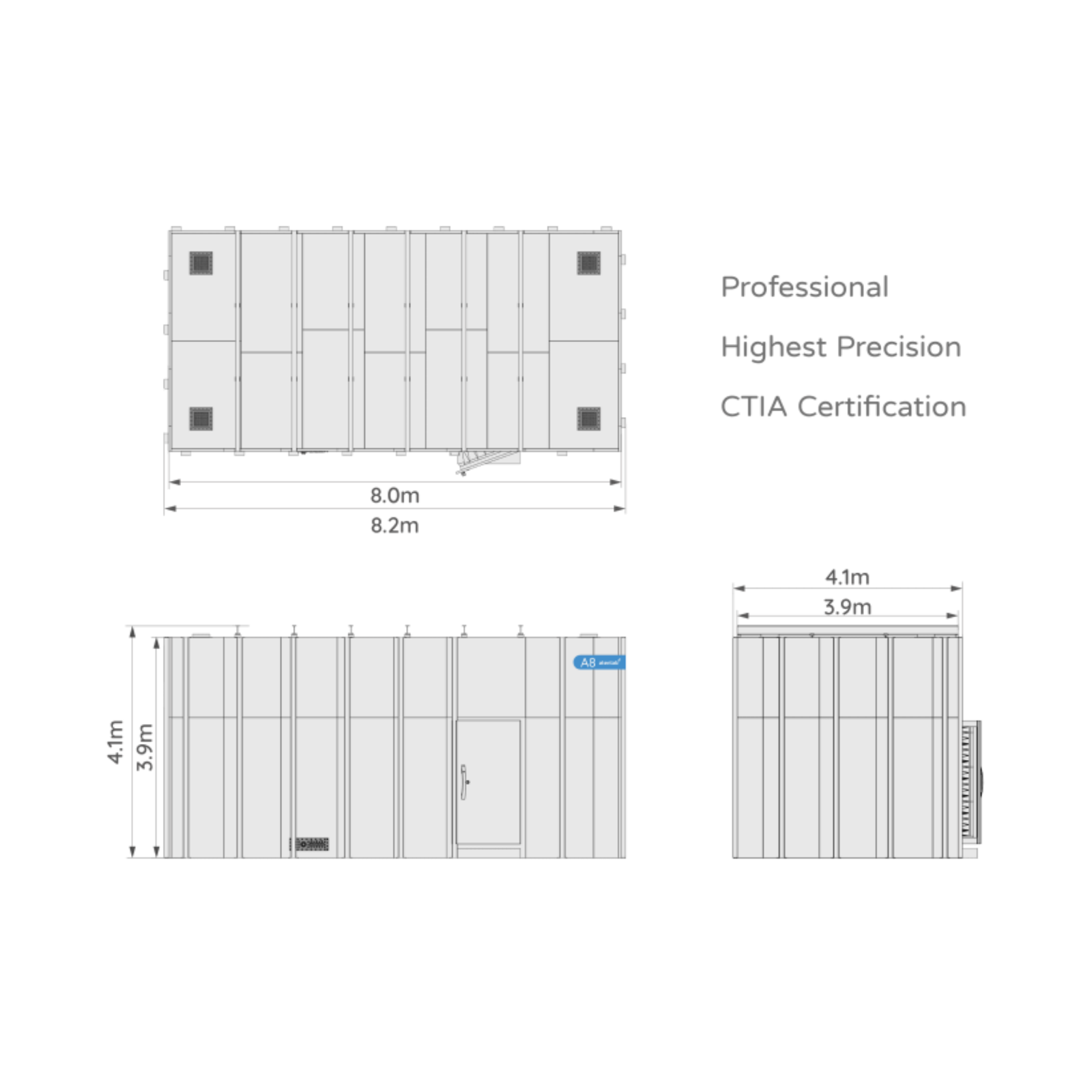

| Dimension (L×W×H) | 8.2 × 4.1 × 4.1 m |
| Maximum DUT | 19" Laptop |
| Measurement Antenna Frequency | 0.45 – 6.0 GHz |
| Antenna Polarization | Linear Dual-Polarized Antenna |
| Polarization Shielding | 20 dB |
| Antenna Gain | 8 dBi @ 6 GHz |
| Antenna Connector | SMA (Female) |
| Antenna Weight | 5 kg |
Description
Key Features
1. Highest Precision: 60 cm quiet zone; SD < 0.8
2. CTIA Certification: Software and hardware meet full CTIA standard
3. 5.0 m Measurement Distance: Maximum far-field accuracy
4. 19" Laptop DUT Support: Full-size device capability
5. Professional Chamber: 8.2×4.1×4.1 m for large DUT scenarios
6. > 100 dB Shielding: 0.03–18 GHz
