A6 Standard Type Single – Probe OTA Measurement System
Class: A Class (Single-Probe OTA)
- Standard OTA system
- 0.65–8.5 GHz Operating frequency
- 19″ laptop DUT
- Quiet zone 30 cm; SD < 1.0
- CTIA compliant
Product Details

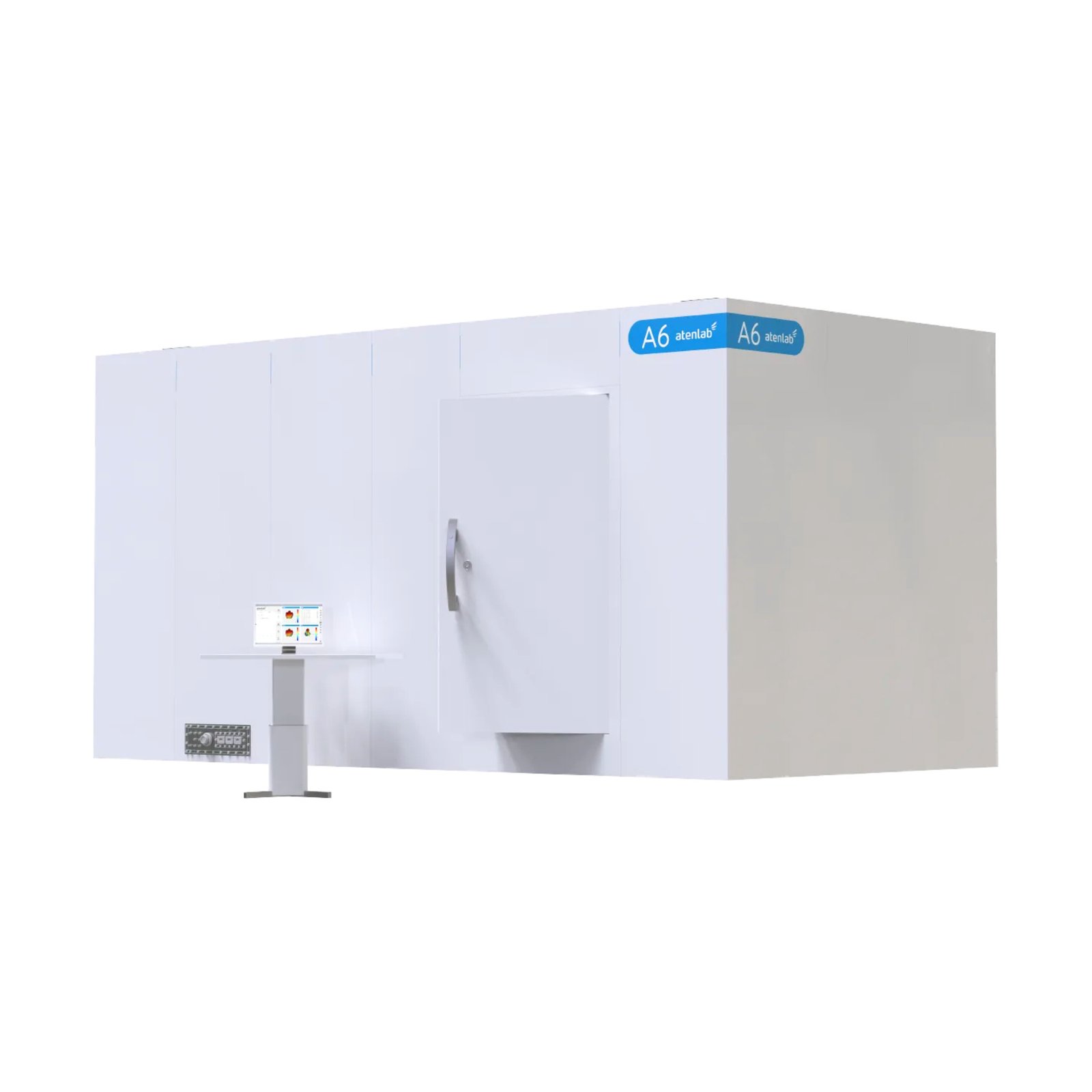

The A6 is Atenlab’s standard single-probe OTA system, offering engineers the ideal balance between measurement velocity and frequency coverage. With a 30 cm quiet zone (SD < 1.0), 4.0 m measurement distance, and support for devices up to 19″ laptop size, it exceeds standard specifications with customizable frequency and configuration options. CTIA standard compliant.
Specification
Additional information
| Operating Frequency | 0.65 – 8.5 GHz |
|---|---|
| Shielding Effectiveness | 0.03 – 18 GHz > 100 dB |
| Quiet Zone Size | 30 cm |
| Quiet Zone Characteristics | SD < 1.0 |
| Path Loss | 55 dB @ 3.8 GHz; 42 dB @ 6.0 GHz; 48 dB @ 8.0 GHz |
| Measurement Distance | 4.0 m |
| Absorber Type | EPP Absorber |
| System Stability | Passive Antenna Efficiency SD < 10%; TRP SD < 0.5 dB; TIS SD < 1 dB |
| Test Time | Antenna Efficiency 4 min; TRP 6 min / TIS 10 min per channel |
| Maximum Power Consumption | 3.5 kW |
| Input Power | 110 VAC / 220 VAC |

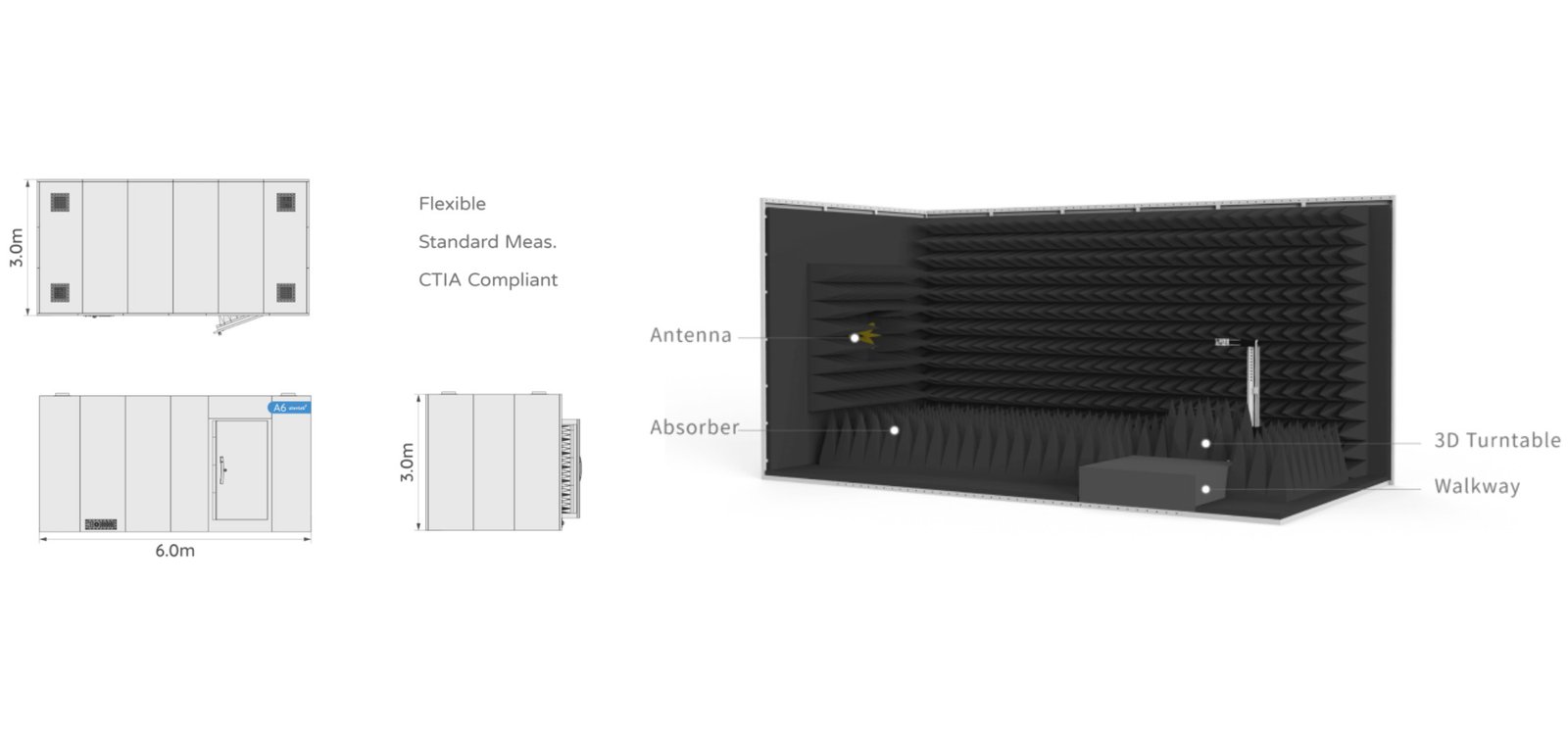

| Dimension (L×W×H) | 6.0 × 3.0 × 3.0 m |
| Maximum DUT | 19" Laptop |
| Measurement Antenna Frequency | 0.65 – 8.5 GHz |
| Antenna Polarization | Linear Dual-Polarized Antenna |
| Polarization Shielding | 20 dB |
| Antenna Gain | 10 dBi @ 6 GHz |
| Antenna Connector | SMA (Female) |
| Antenna Weight | 5 kg |
Description
Key Features
1. CTIA Compliant: Meets CTIA OTA test plan requirements
2. Standard 30 cm Quiet Zone: SD < 1.0 for high accuracy 3. 19" Laptop DUT: Accommodates larger test devices 4. 4.0 m Measurement Distance: Optimal far-field separation 5. Flexible Configuration: Customizable frequency and options 6. > 100 dB Shielding: 0.03–18 GHz
